Reference Grid -
Stakeout
The signs for the distance and angle differences are correction values (required minus
actual). The arrows indicate the direction to move to get to the stake out point.
Next step • Either, press Meas to measure and record.
• Or, press ESC to return to the Enter start chainage of grid! screen and from there,
press Back to return to the Reference Line - Info screen.

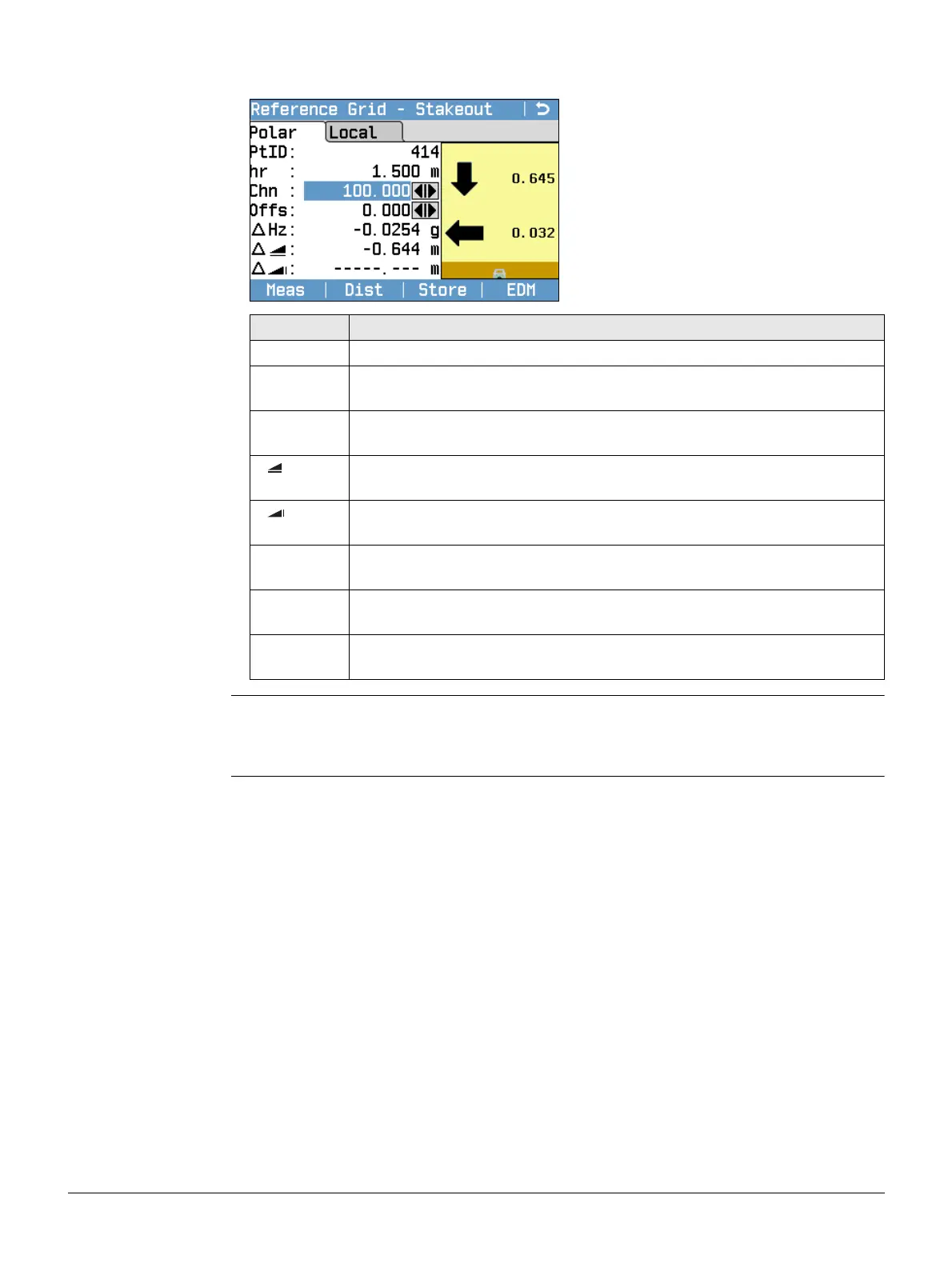

Field Description
Chn The chainage of the grid stakeout point.
Offs Offset increment values. The stake out point is to the right of the refer-
ence line.
∆Hz Horizontal direction from the measured point to stake out point. Posi-
tive if the telescope must be turned clockwise to the stake out point.
 Horizontal distance from the measured point to stake out point. Posi-
tive if the stake out point is further away than the measured point.
 Height difference from the measured point to the stake out point. Posi-
tive if the stake out point is higher than the measured point.
Line Grid increment values. The stake out point is in the direction from the
first to the second reference point.
∆L Longitudinal distance from the measured point to the stake out point.
Positive if stake out point is further away than the measured point.
∆O Perpendicular distance from the measured point to the stake out point.
Positive if stake out point is to the right of the measured point.
