144
Snooping function. For Each setting page shows up to 99 entries from the VLAN table,
default being 20, selected through the "entries per page" input field. When first visited,
the web page will show the first 20 entries from the beginning of the VLAN Table. The
first displayed will be the one with the lowest VLAN ID found in the VLAN Table. The
"VLAN" input fields allow the user to select the starting point in the VLAN Table.
Clicking the button will update the displayed table starting from that or the next
closest VLAN Table match.
Web Interface
To configure the IGMP Snooping VLAN Configuration in the web interface:
1. Click Configuration, IPMC, IGMP Snooping, VLAN Configuration
2. Evoke to select enable or disable Snooping, IGMP Querier. Specify the parameters
in the blank field.
3. Click the refresh to update the data or click << or >> to display previous entry or
next entry.
4. Click the save to save the setting
5. If you want to cancel the setting then you need to click the Reset button. It will
revert to previously saved values

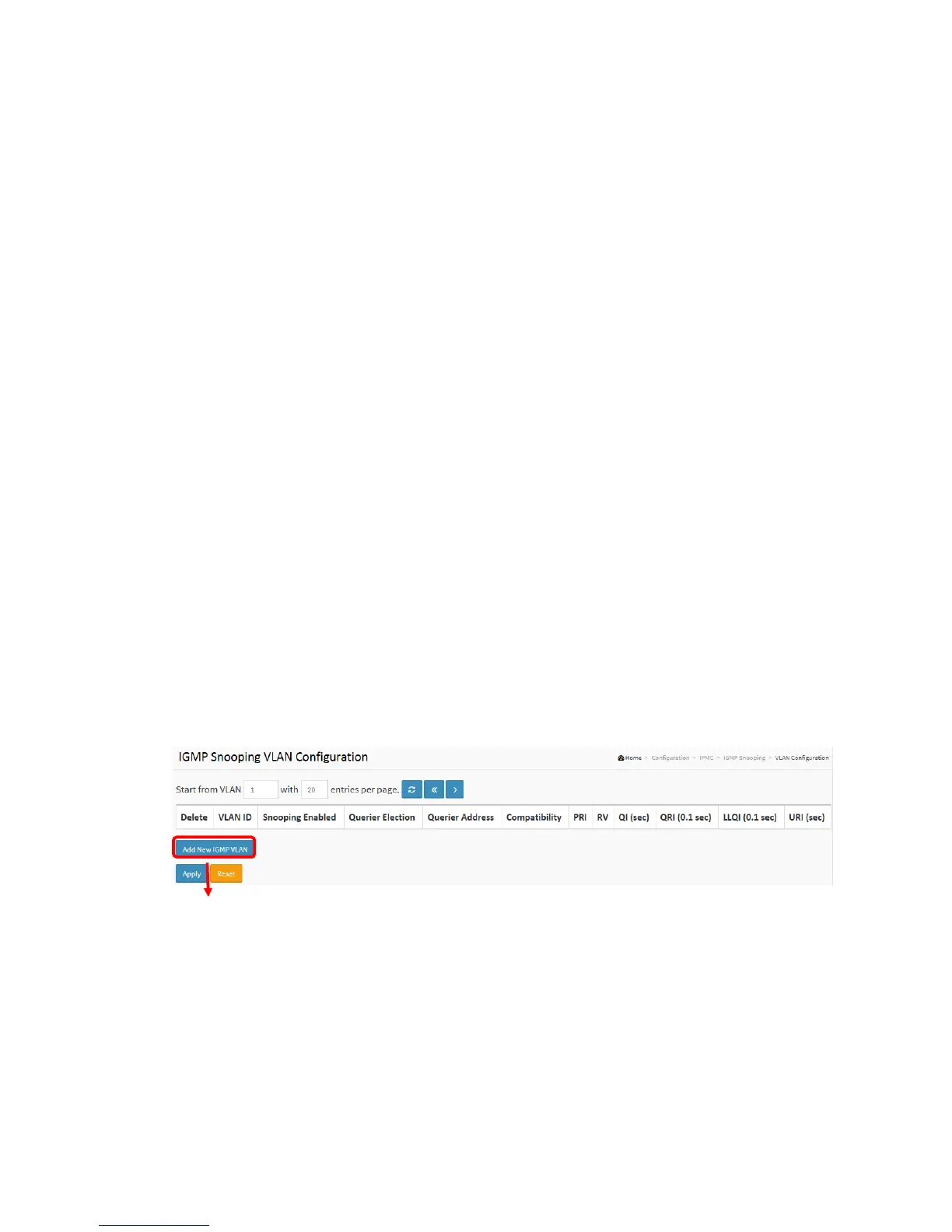

Figure 2-12.1.2: The IGMP Snooping VLAN Configuration.
