3-9.2 Port Status
After you complete the STP configuration then you could to ask the switch display the
STP Port Status. The Section provides you to ask switch to display the STP CIST port
status for physical ports of the currently selected switch.
Web Interface
To display the STP Port status in the web interface:
1. Click Monitor, Spanning Tree, STP Port Status
2. If you want to auto-refresh the information then you need to evoke the
“Auto-refresh”.
3. Click “Refresh” to refresh the STP Bridges.

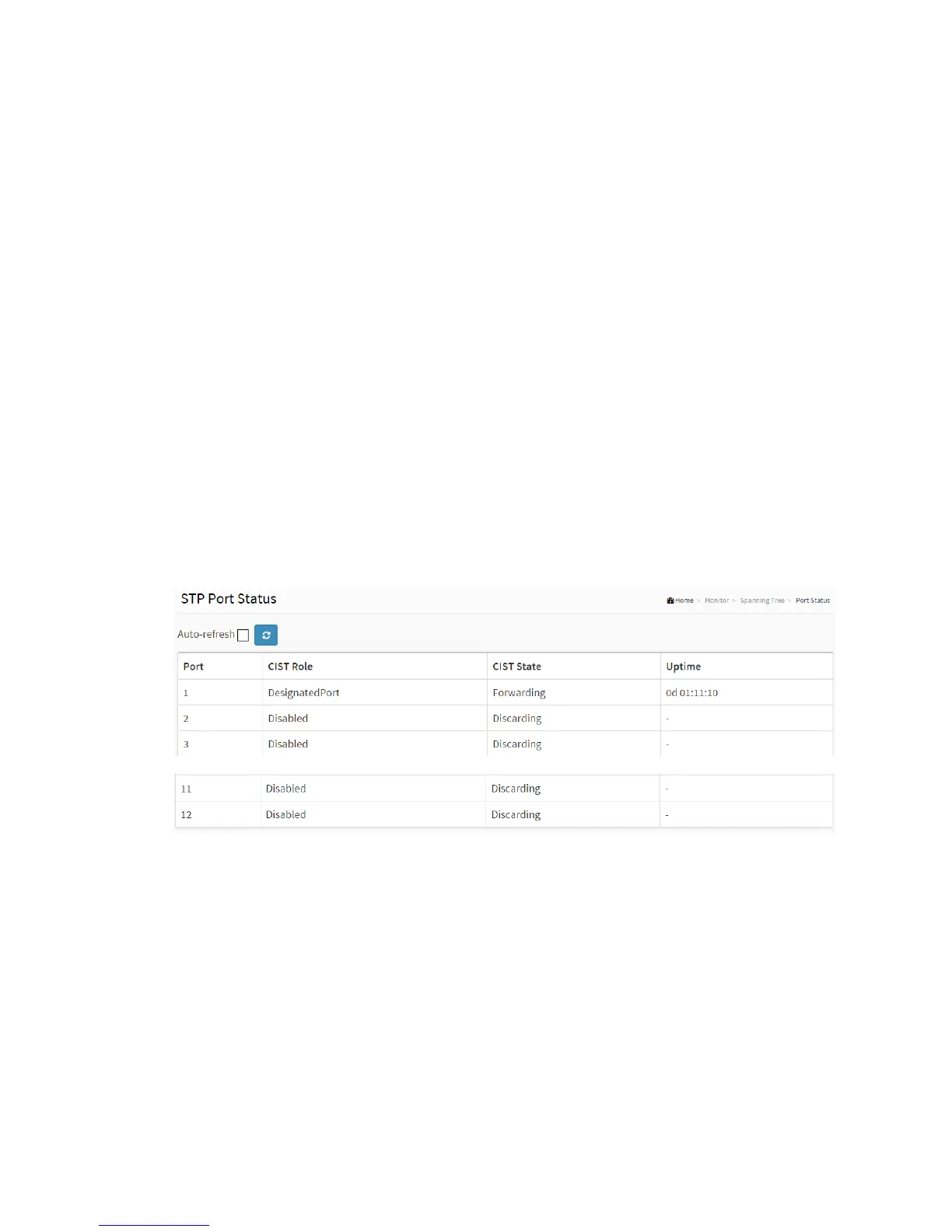

Figure 3-9.2: The STP Port status
Parameter description:
 Port :
The switch port number of the logical STP port.
 CIST Role :
The current STP port role of the CIST port. The port role can be one of the following
values: AlternatePort, Backup Port, RootPort, DesignatedPort Disabled.
