4-3 VeriPHY
This section is used for running the VeriPHY Cable Diagnostics. Press to run the
diagnostics. This will take approximately 5 seconds. If all ports are selected, this can
take approximately 15 seconds. When completed, the page refreshes automatically,
and you can view the cable diagnostics results in the cable status table. Note that
VeriPHY is only accurate for cables of length 7 -140 meters.10 and 100 Mbps ports will
be linked down while running VeriPHY. Therefore, running VeriPHY on a 10 or 100
Mbps management port will cause the switch to stop responding until VeriPHY is
complete.
Web Interface
To configure a VeriPHY Cable Diagnostics Configuration in the web interface:
1. Specify Port which want to check.
2. Click Start.

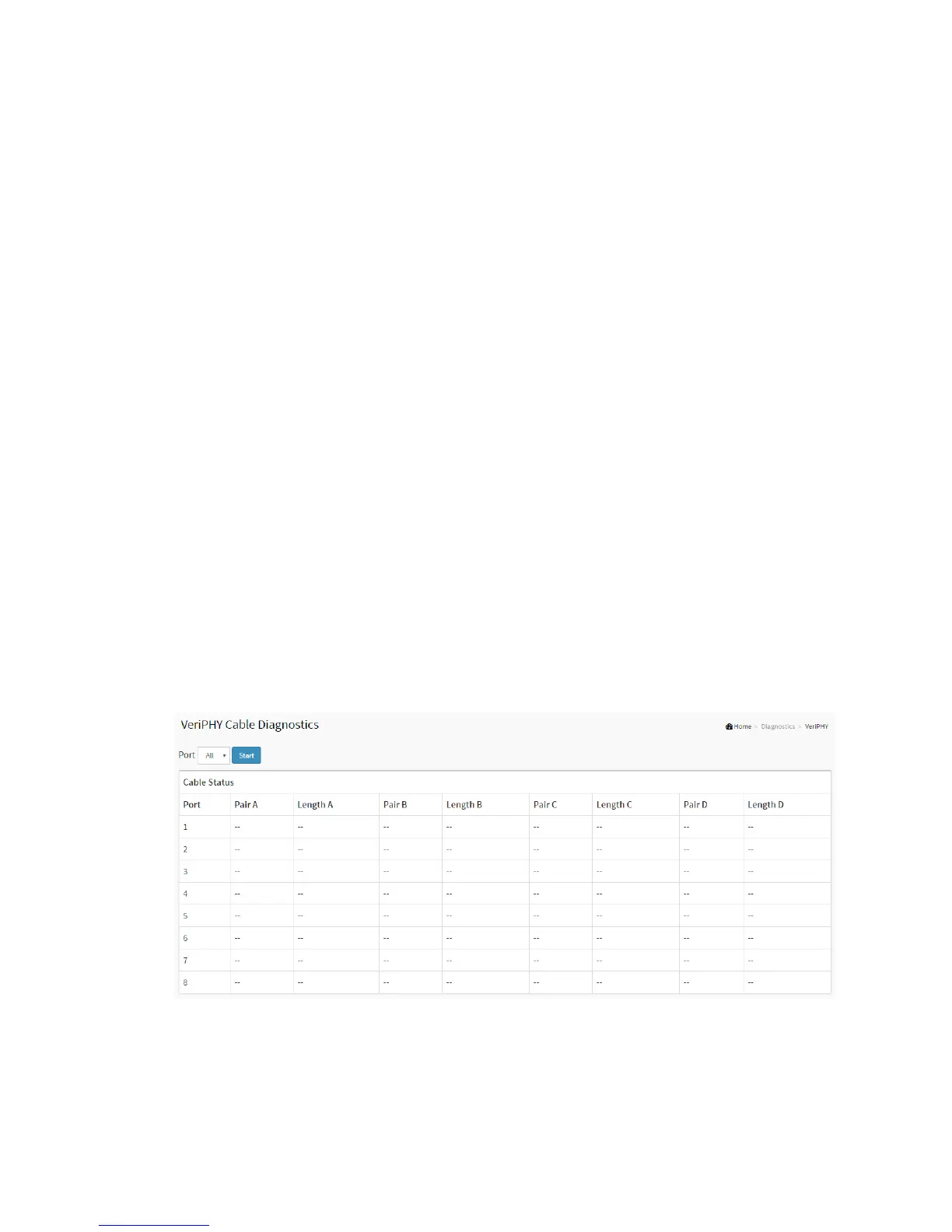

Figure 4-3: The VeriPHY
Parameter description:
Port :
