3-17.2 Port
The function Port Status gathers the information of all VLAN status and reports it by
the order of Static NAS MVRP MVP Voice VLAN MSTP GVRP Combined.
Web Interface
To Display VLAN Port Status in the web interface:
1. Click Monitor, VLAN Port Status.
2. Specify the Static NAS MVRP MVP Voice VLAN MSTP GVRP Combined.
3. Display Port Status information.

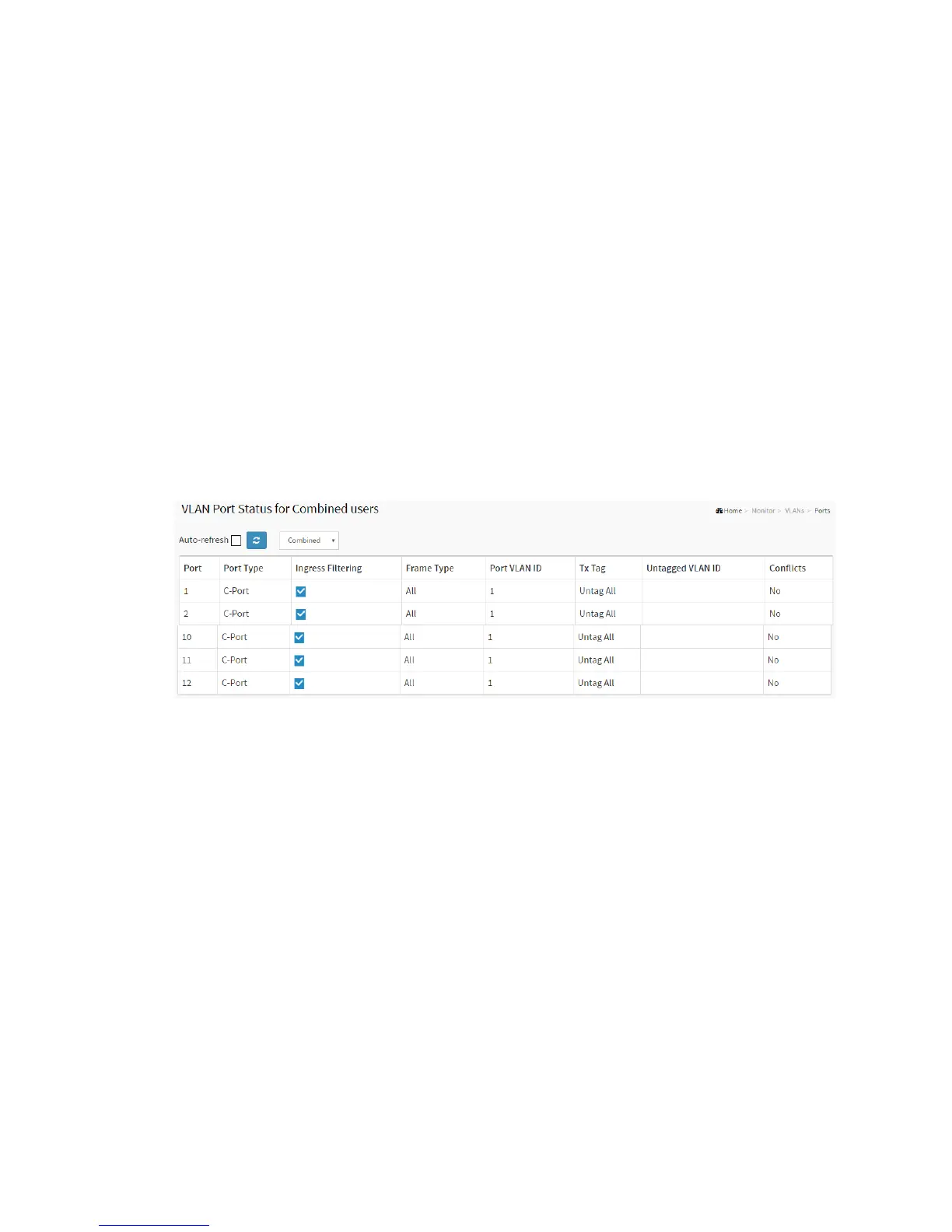

Figure 3-17.2: The VLAN Port Status for Static user
Parameter description:
VLAN USER
VLAN User module uses services of the VLAN management functionality to configure
VLAN memberships and VLAN port configuration such as PVID, UVID. Currently we
support following VLAN User types:
CLI/Web/SNMP : These are referred to as static.
NAS : NAS provides port-based authentication, which involves communications
between a Supplicant, Authenticator, and an Authentication Server.
Voice VLAN : Voice VLAN is a VLAN configured specially for voice traffic typically
