3-7 Aggregation
3-7.1 Status
This page is used to see the status of ports in Aggregation group
Web Interface
To display the status of ports in the web interface:
1. Click Monitor, Aggregation, Status
2. Checked “Auto-refresh”.
3. Click “Refresh” to refresh the port detailed statistics.

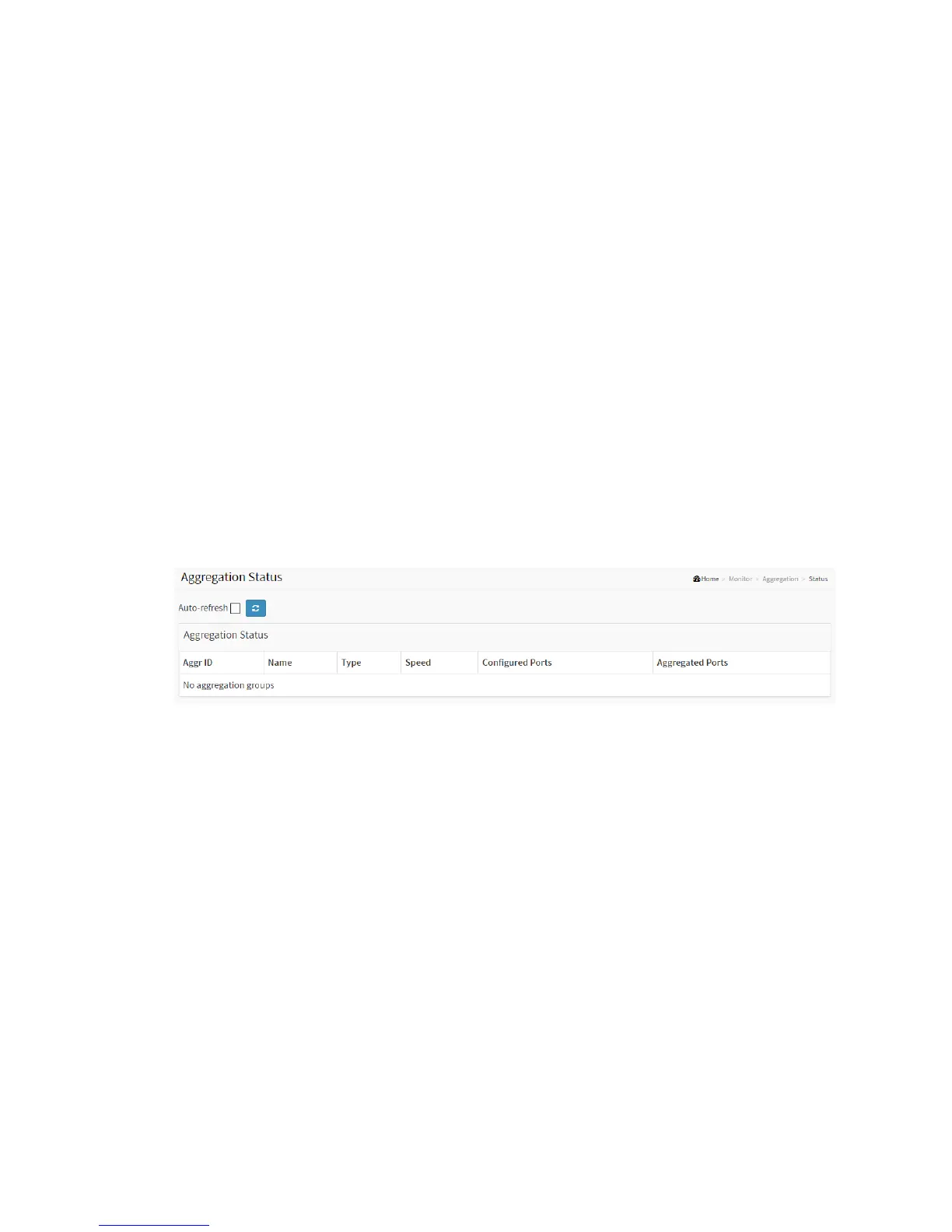

Figure 3-7.1 The LACP System Status
Parameter description:
 Aggr ID :
The Aggregation ID associated with this aggregation instance.
 Name
Name of the Aggregation group ID.
 Type
Type of the Aggregation group(Static or LACP).
 Speed
Speed of the Aggregation group.
