3-18.2 Protocol-based VLAN
3-18.2.1 Protocol to Group
This page shows you the protocols to Group Name (unique for each Group) mapping
entries for the switch.
Web Interface
To Display Protocol-based VLAN configuration in the web interface:
1. Click Monitor, VCL, Protocol to Group.
2. Checked “Auto-refresh”.
3. Click “Refresh” to refresh the port detailed statistics.

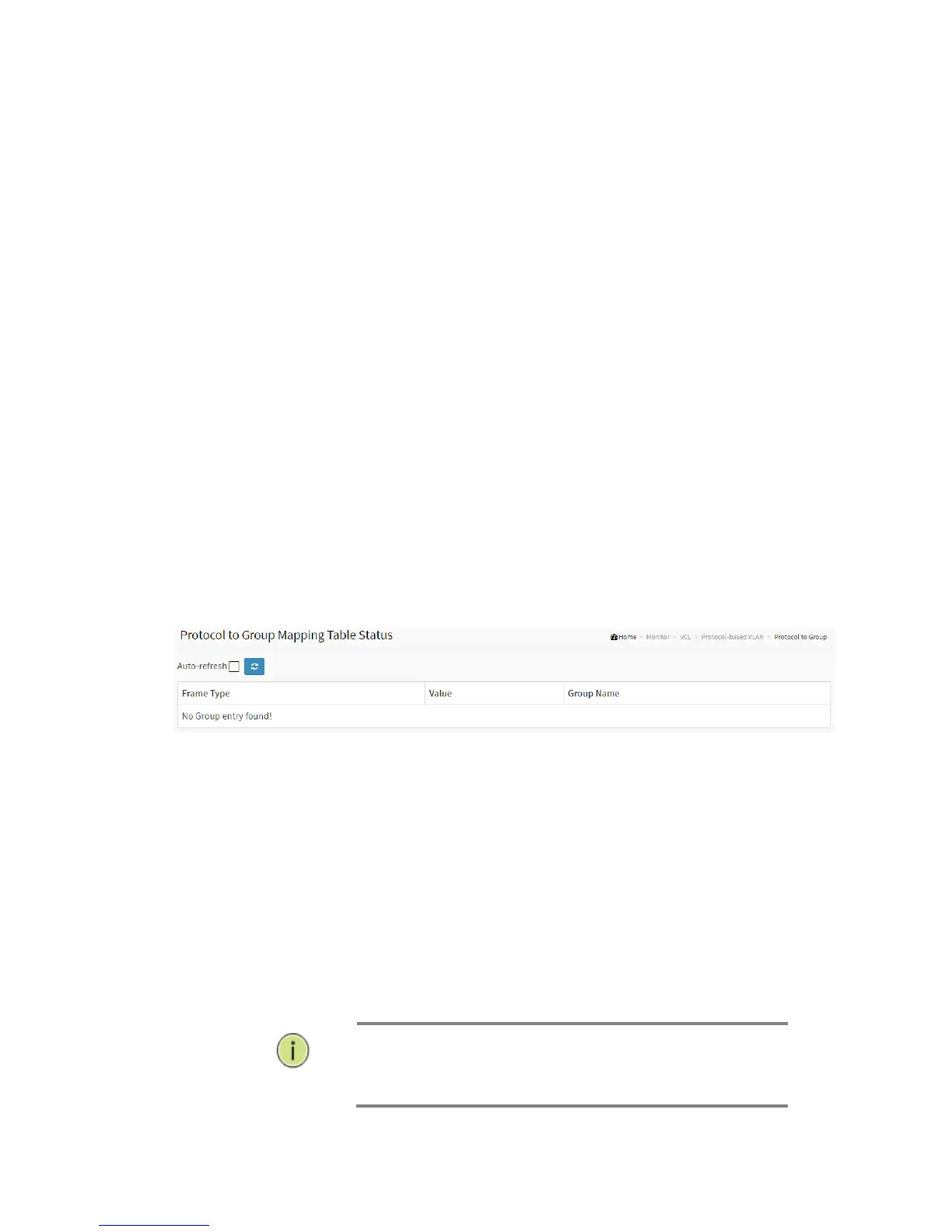

Figure 3-18.2.1: The MAC-based VLAN Membership Status for User Static
Parameter description:
Frame Type :
Frame Type can have one of the following values:
1. Ethernet
2. LLC
3. SNAP
NOTE:
On changing the Frame type field, valid value of the following
text field will vary depending on the new frame type you
