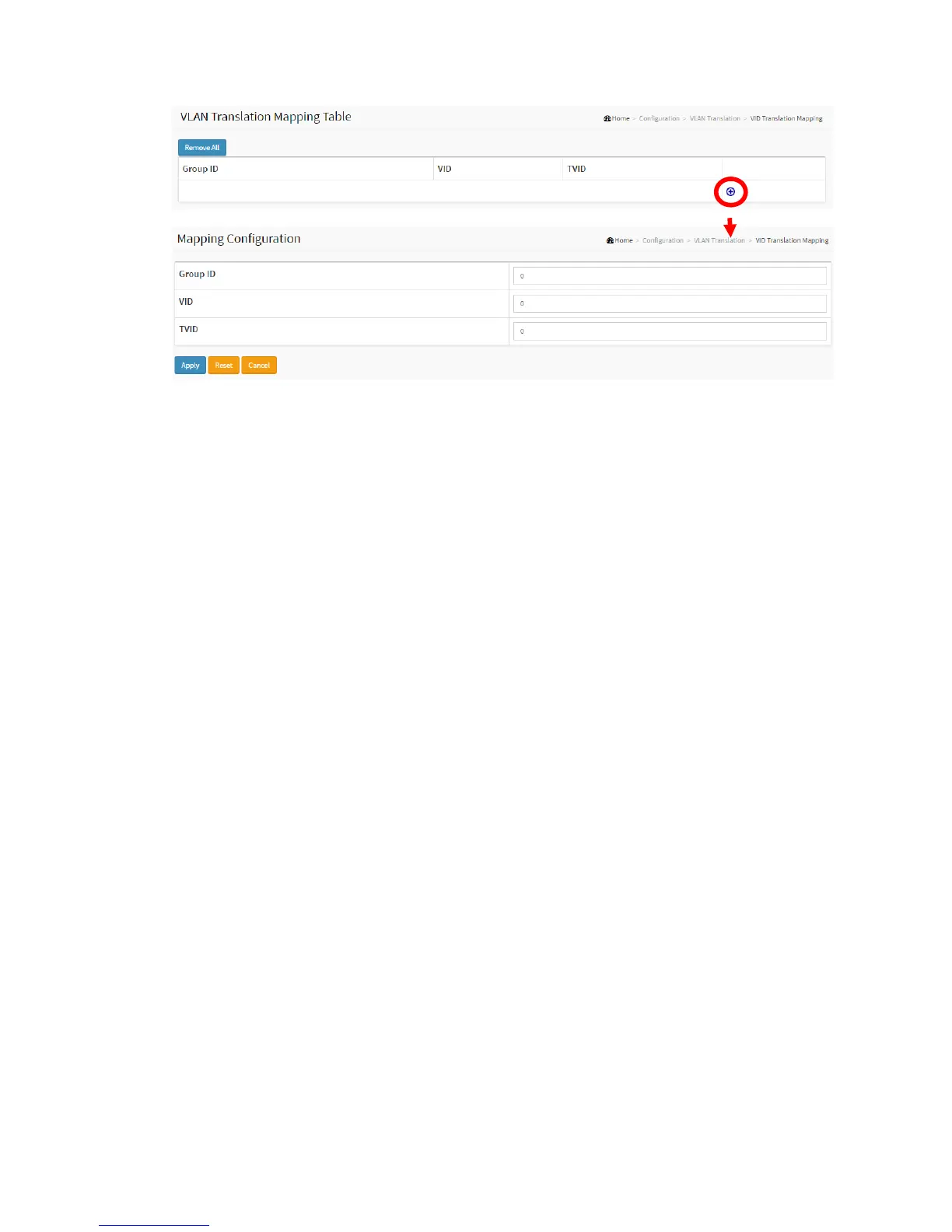

Parameter description:
Power Supply Configuration
Group ID
The VLAN Translation mappings are organized into Groups, identified by the Group ID.
This way a port is configured to use a number of VLAN Translation mappings easily by
simply configuring it to use a given group. Then number of possible groups in a switch is
equal to the number of ports present in this switch. A port can be configured to use any
of the groups, but only one at any given time. Multiple ports can be configured to use the
same group. A valid Group ID is an integer value from 1 to 12.
Note: By default, each port is set to use the group with Group ID equal to the port
number. For example, port #1 is by default set to use group with GID = 1.
VID
Indicates the VLAN of the mapping (i.e. 'source' VLAN). A valid VLAN ID ranges from 1 to
4095.
TVID
Indicates the VLAN ID to which VLAN ID of an ingress frame will be translated to (granted
that the mapping is enabled on the ingress port that the frame arrived at). A valid VLAN
ID ranges from 1 to 4095.
Buttons:
Apply – Click to save changes.
Reset- Click to undo any changes made locally and revert to previously saved
values
