Parameter description:
Global VLAN Configuration
Existing VLANs :
This field shows the VLANs that are created on the switch.
By default, only VLAN 1 exists. More VLANs may be created by using a list syntax
where the individual elements are separated by commas. Ranges are specified with
a dash separating the lower and upper bound.
The following example will create VLANs 1, 10, 11, 12, 13, 200, and 300:
1,10-13,200,300. Spaces are allowed in between the delimiters.
Ethertype for Custom S-ports :
This field specifies the ethertype/TPID (specified in hexadecimal) used for Custom
S-ports. The setting is in force for all ports whose Port Type is set to S-Custom-Port.

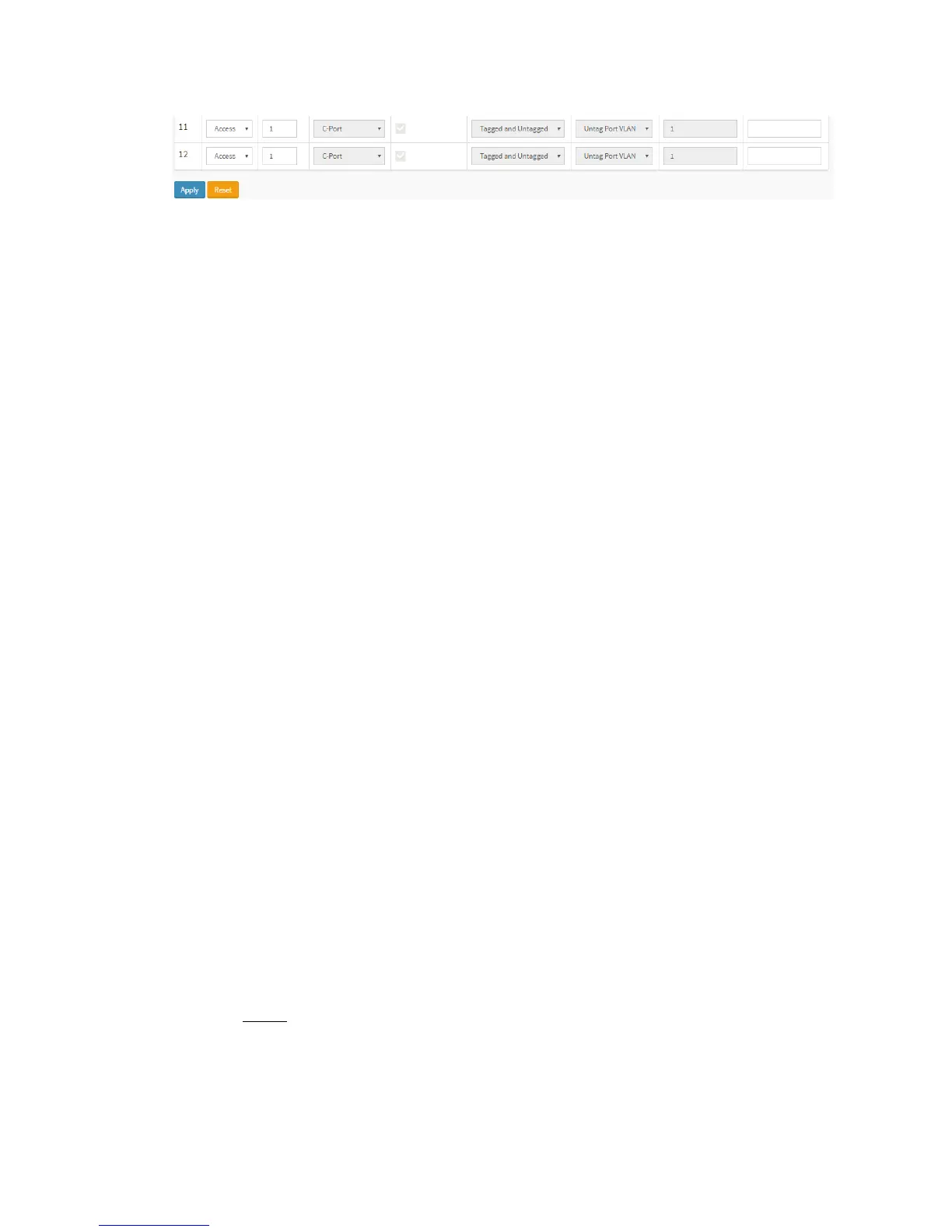

Port VLAN Configuration
Port :
This is the logical port number of this row.
Mode :
The port mode (default is Access) determines the fundamental behavior of the port in
question. A port can be in one of three modes as described below.
Whenever a particular mode is selected, the remaining fields in that row will be either grayed
out or made changeable depending on the mode in question.
Grayed out fields show the value that the port will get when the mode is applied.
Access:
Access ports are normally used to connect to end stations. Dynamic features like Voice VLAN
may add the port to more VLANs behind the scenes. Access ports have the following
characteristics:
