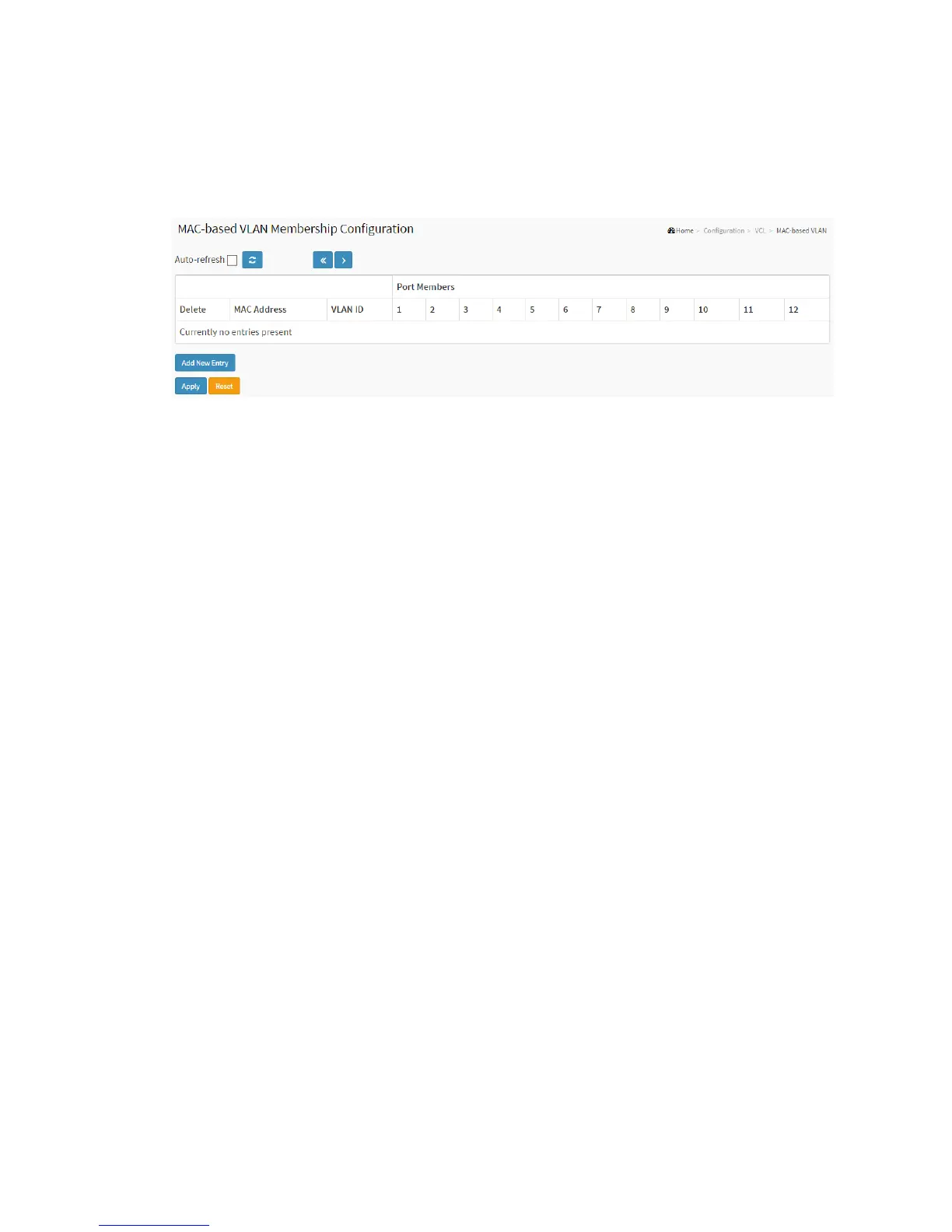

Figure 2-22.1: The MAC-based VLAN Membership Configuration
Parameter description:
Delete :
To delete a MAC-based VLAN entry, check this box and press save. The entry will be
deleted on the selected switch in the stack.
MAC Address :
Indicates the MAC address.
VLAN ID :
Indicates the VLAN ID.
Port Members :
A row of check boxes for each port is displayed for each MAC-based VLAN entry. To
include a port in a MAC-based VLAN, check the box. To remove or exclude the port
from the MAC-based VLAN, make sure the box is unchecked. By default, no ports
are members, and all boxes are unchecked.
Adding a New MAC-based VLAN
Click to add a new MAC-based VLAN entry. An empty row is added to the table, and
the MAC-based VLAN entry can be configured as needed. Any unicast MAC address
can be configured for the MAC-based VLAN entry. No broadcast or multicast MAC
addresses are allowed. Legal values for a VLAN ID are 1 through 4095.
The MAC-based VLAN entry is enabled on the selected stack switch unit when you
