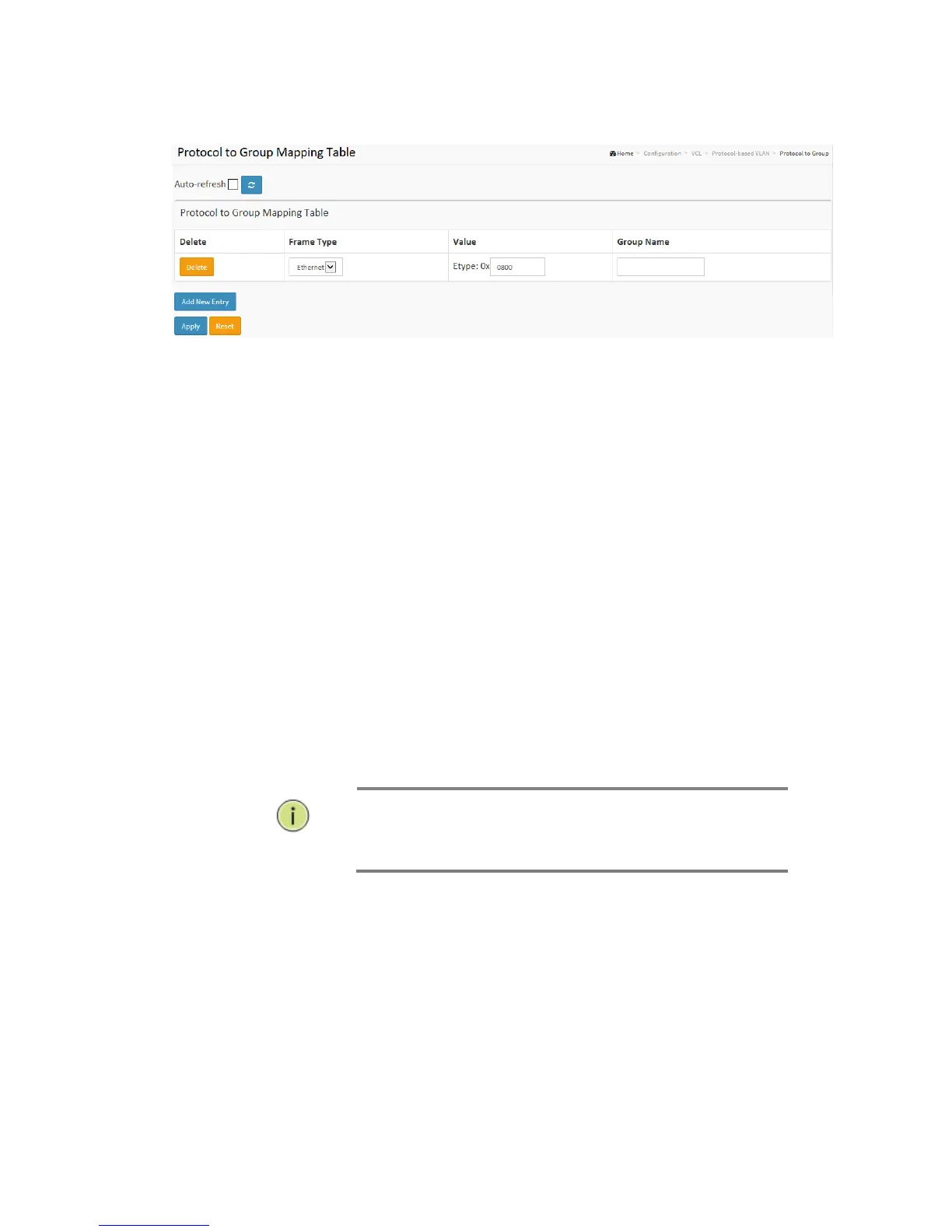

Figure 2-22.2.1: The Protocol to Group Mapping Table
Parameter description:
Delete :
To delete a Protocol to Group Name map entry, check this box. The entry will be
deleted on the switch during the next Save.
Frame Type :
Frame Type can have one of the following values:
1. Ethernet
2. LLC
3. SNAP
NOTE: On changing the Frame type field, valid value of the
following text field will vary depending on the new frame type
you selected.
Value :
Valid value that can be entered in this text field depends on the option selected
from the the preceding Frame Type selection menu.
Below is the criteria for three different Frame Types:
1. For Ethernet: Values in the text field when Ethernet is selected as a Frame
Type is called etype. Valid values for etype ranges from 0x0600-0xffff
