2-22.2.2 Group to VLAN
This section allows you to map an already configured Group Name to a VLAN for the
selected stack switch unit switch.
Web Interface
To Display Group Name to VLAN mapping table configured in the web interface:
1. Click Group Name VLAN configuration and add new entry.
2. Specify the Group Name and VLAN ID.
3. Click Apply.

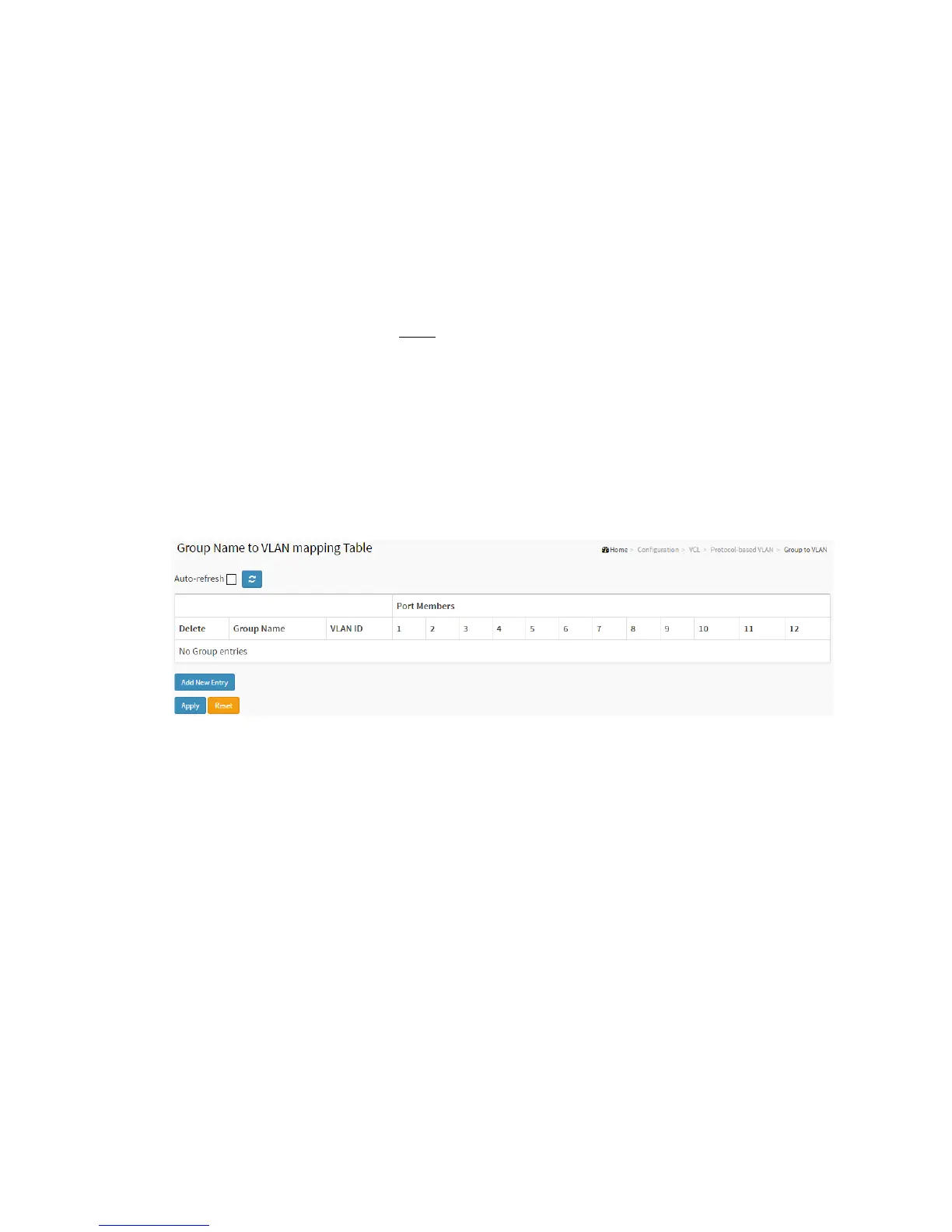

Figure 2-22.2.2: The Group Name of VLAN Mapping Table
Parameter description:
Delete :
To delete a Group Name to VLAN map entry, check this box. The entry will be
deleted on the switch during the next Save
Group Name :
A valid Group Name is a string of almost 16 characters which consists of a
combination of alphabets (a-z or A-Z) and integers (0-9), no special character is
allowed. Whichever Group name you try map to a VLAN must be present in
Protocol to Group mapping table and must not be perused by any other existing
mapping entry on this page.
