245

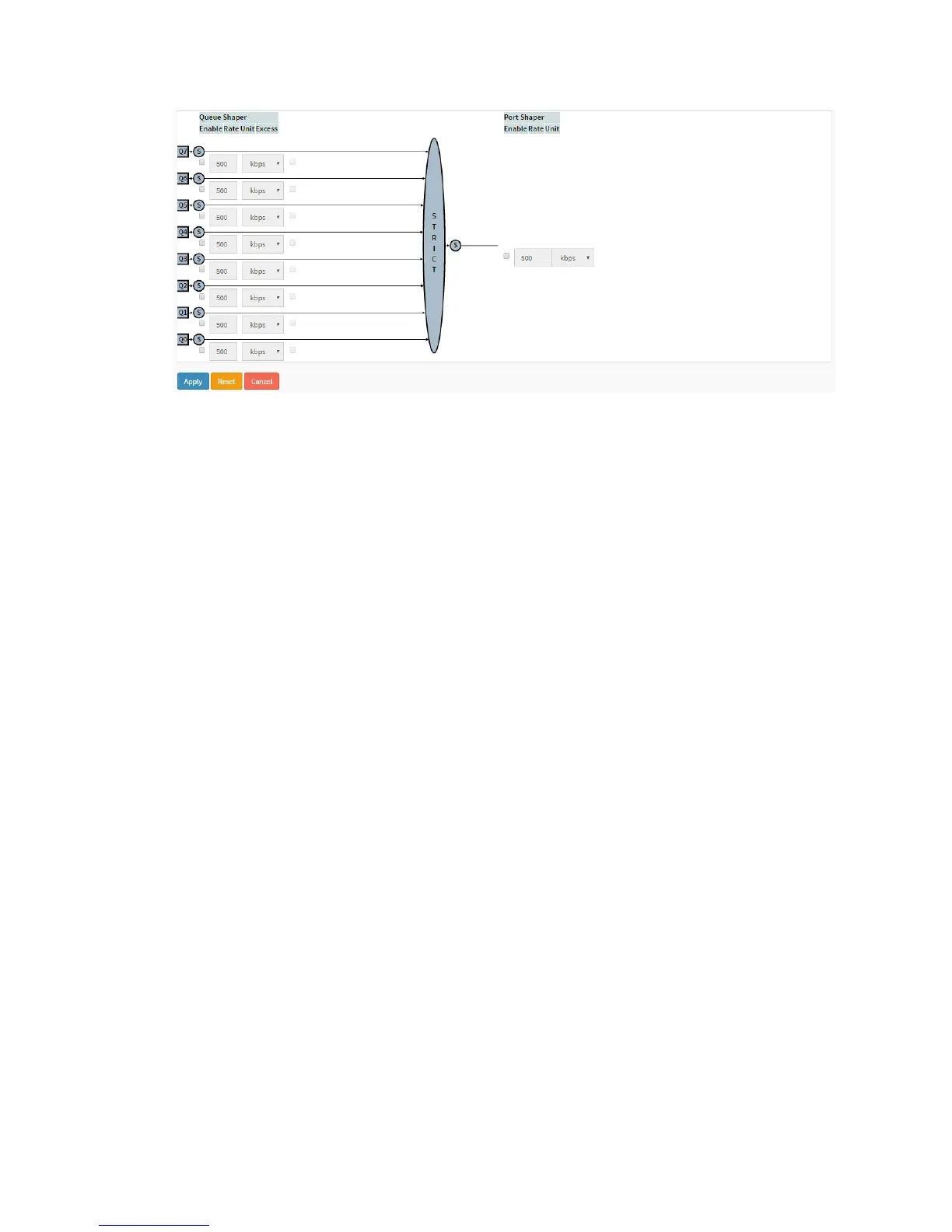

Parameter description:
 Port :
The logical port for the settings contained in the same row. Click on the port
number in order to configure the shapers.
 Mode :
Shows the scheduling mode for this port.
 Shapers (Qn) :
Shows "disabled" or actual queue shaper rate - e.g. "800 Mbps".
 Scheduler Mode :
Controls whether the scheduler mode is "Strict Priority" or "Weighted" on this
switch port.
 Queue Shaper Enable :
Controls whether the queue shaper is enabled for this queue on this switch port.
 Queue Shaper Rate :
Controls the rate for the queue shaper. The default value is 500. This value is
restricted to 100-1000000 when the "Unit" is "kbps", and it is restricted to 1-13200
when the "Unit" is "Mbps".
