249
Parameter description:
 Mode :
Controls the tag remarking mode for this port.
Classified: Use classified PCP/DEI values.
Default: Use default PCP/DEI values.
Mapped: Use mapped versions of QoS class and DP level.
 PCP/DEI Configuration :
Controls the default PCP and DEI values used when the mode is set to Default.

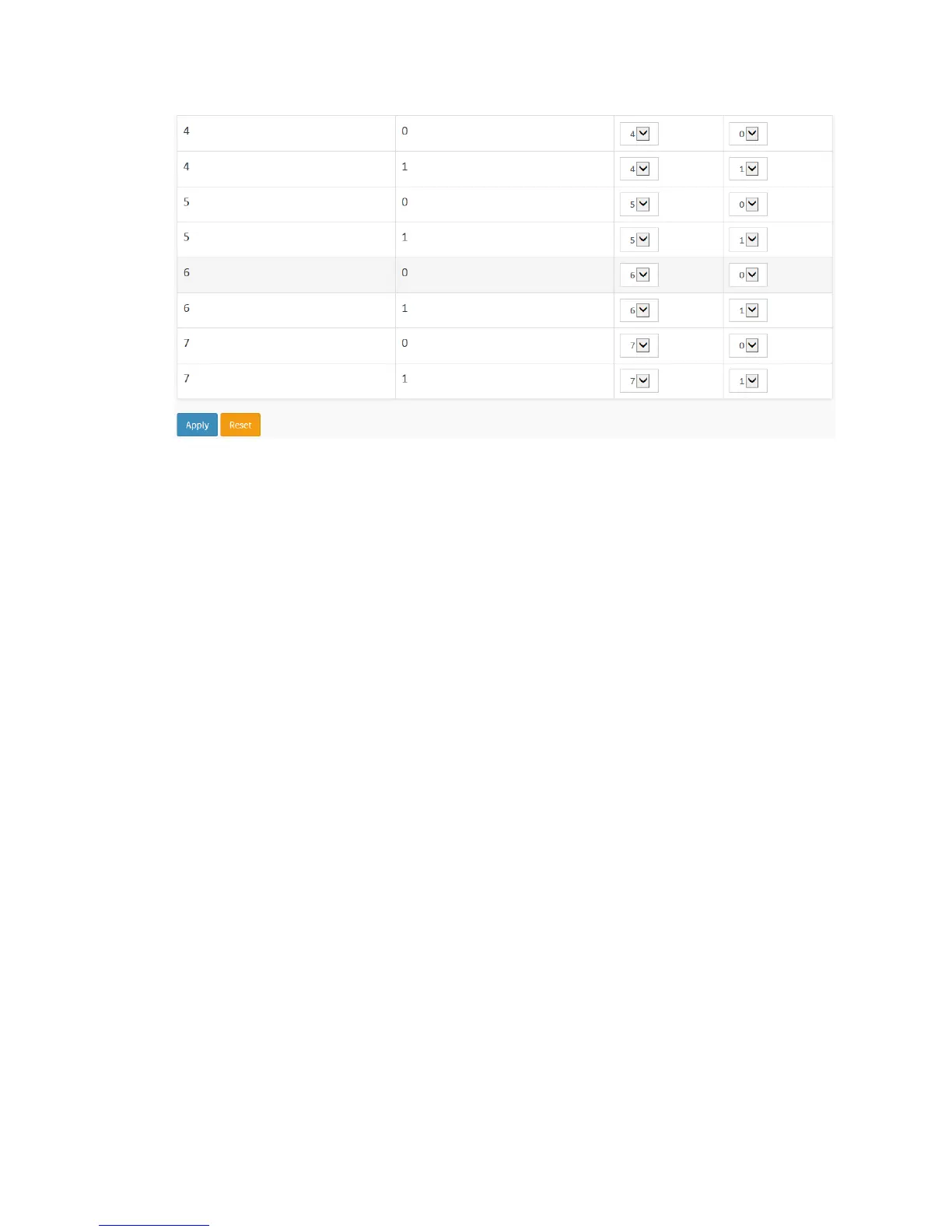

 (QoS class, DP level) to (PCP, DEI) Mapping :
Controls the mapping of the classified (QoS class, DP level) to (PCP, DEI) values
when the mode is set to Mapped.
 Buttons:
Apply – Click to save changes.
Reset- Click to undo any changes made locally and revert to previously saved
values.
Cancel – Click to cancel the changes.
