Web Interface
To configure the Statistics in the web interface:
1. Click Monitor, Link OAM and Statistics.
2. To display the Statistics.

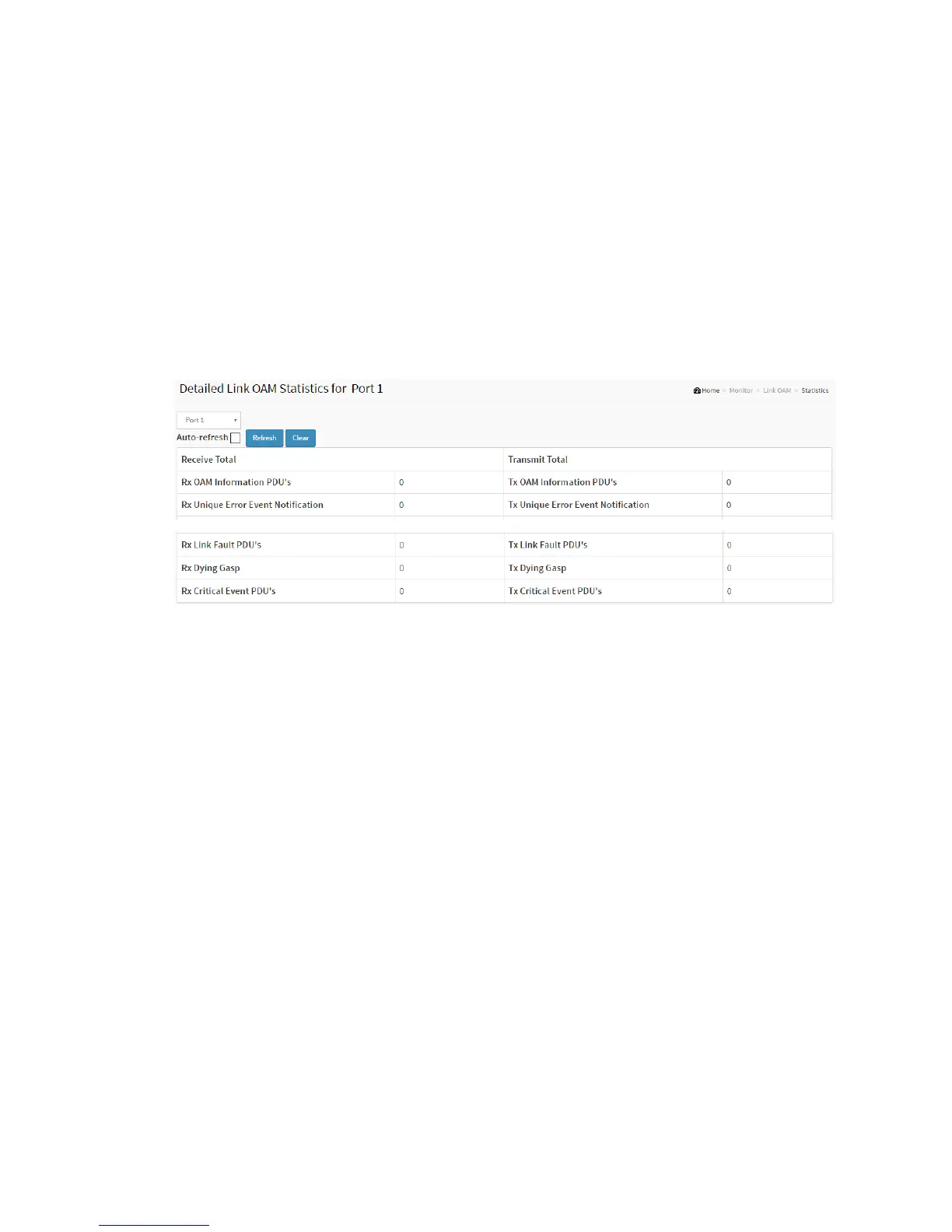

Figure 3-4.1: The Statistics
Parameter description:
Receive Total and Transmit Total
Rx and Tx OAM Information PDU's
The number of received and transmitted OAM Information PDU's. Discontinuities of
this counter can occur at re-initialization of the management system.
Rx and Tx Unique Error Event Notification
A count of the number of unique Event OAMPDUs received and transmitted on this
interface. Event Notifications may be sent in duplicate to increase the probability of
successfully being received, given the possibility that a frame may be lost in transit.
Duplicate Event Notification transmissions are counted by Duplicate Event
Notification counters for Tx and Rx respectively. A unique Event Notification
OAMPDU is indicated as an Event Notification OAMPDU with a Sequence Number
field that is distinct from the previously transmitted Event Notification OAMPDU
Sequence Number.
