3-6.2.2 NAS
3-6.2.2.1 Switch
The section describes to show the each port NAS status information of the switch. The
status includes Admin State Port State, Last Source, Last ID, QoS Class, and Port VLAN
ID.
Web Interface
To configure a NAS Switch Status Configuration in the web interface:
1. Click Security, Network, NAS, and then Port.
2. Checked “Auto-refresh”.
3. Click “Refresh” to refresh the port detailed statistics.

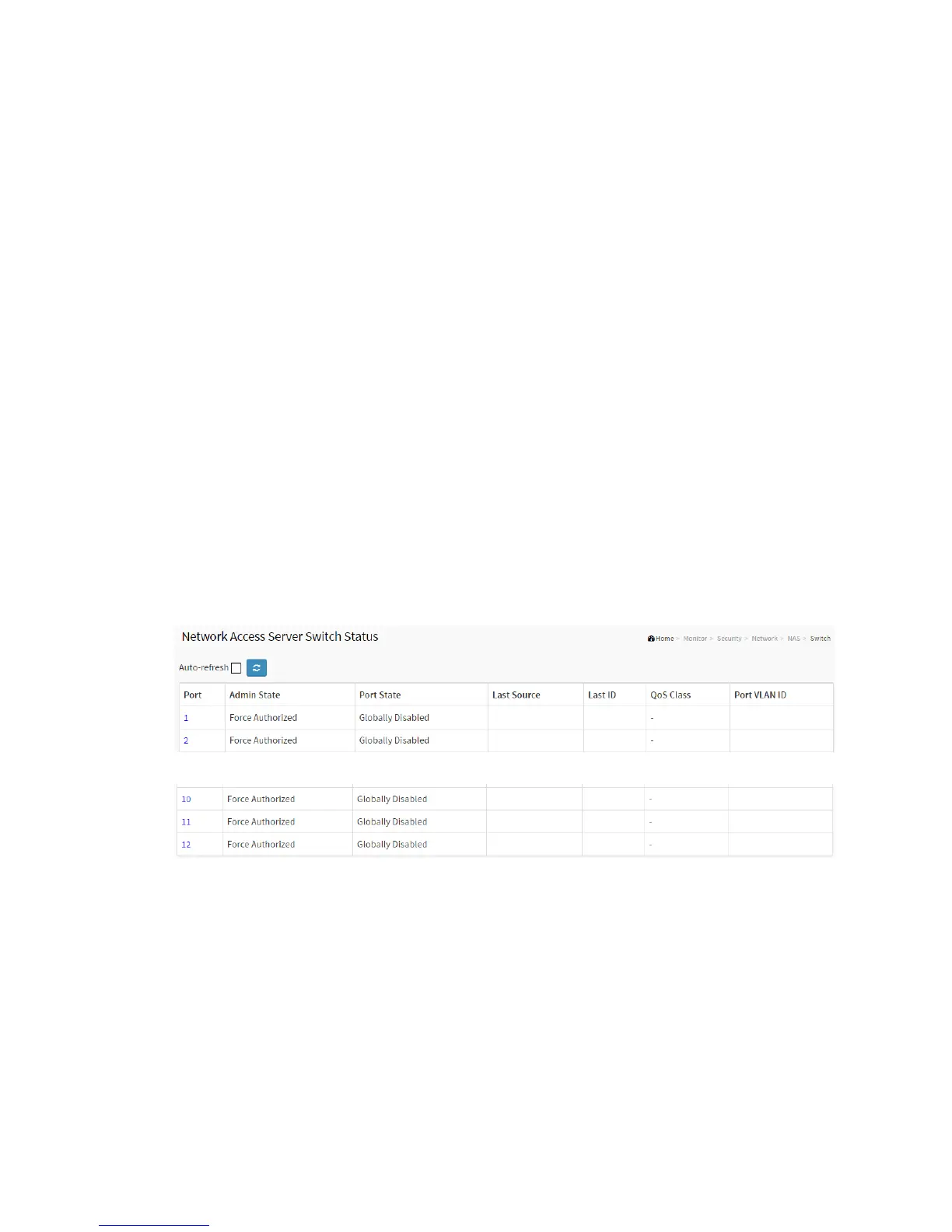

Figure 3-6.2.2.1: The Network Access Server Switch Status
Parameter description:
Port :
The switch port number. Click to navigate to detailed NAS statistics for this port.
Admin State :
The port's current administrative state. Refer to NAS Admin State for a description
