3-6.2.4 ARP Inspection
The section describes to configure the Dynamic ARP Inspection Table parameters of
the switch. The Dynamic ARP Inspection Table contains up to 1024 entries, and is
sorted first by port, then by VLAN ID, then by MAC address, and then by IP address.
Web Interface
To configure a Dynamic ARP Inspection Table Configuration in the web interface:
1. Click Security, Network, ARP Inspection.
2. Checked “Auto-refresh”.
3. Click “Refresh” to refresh the port detailed statistics.
4. Specify the Start from port, VLAN ID, MAC Address, IP Address, and entries per
page.
.

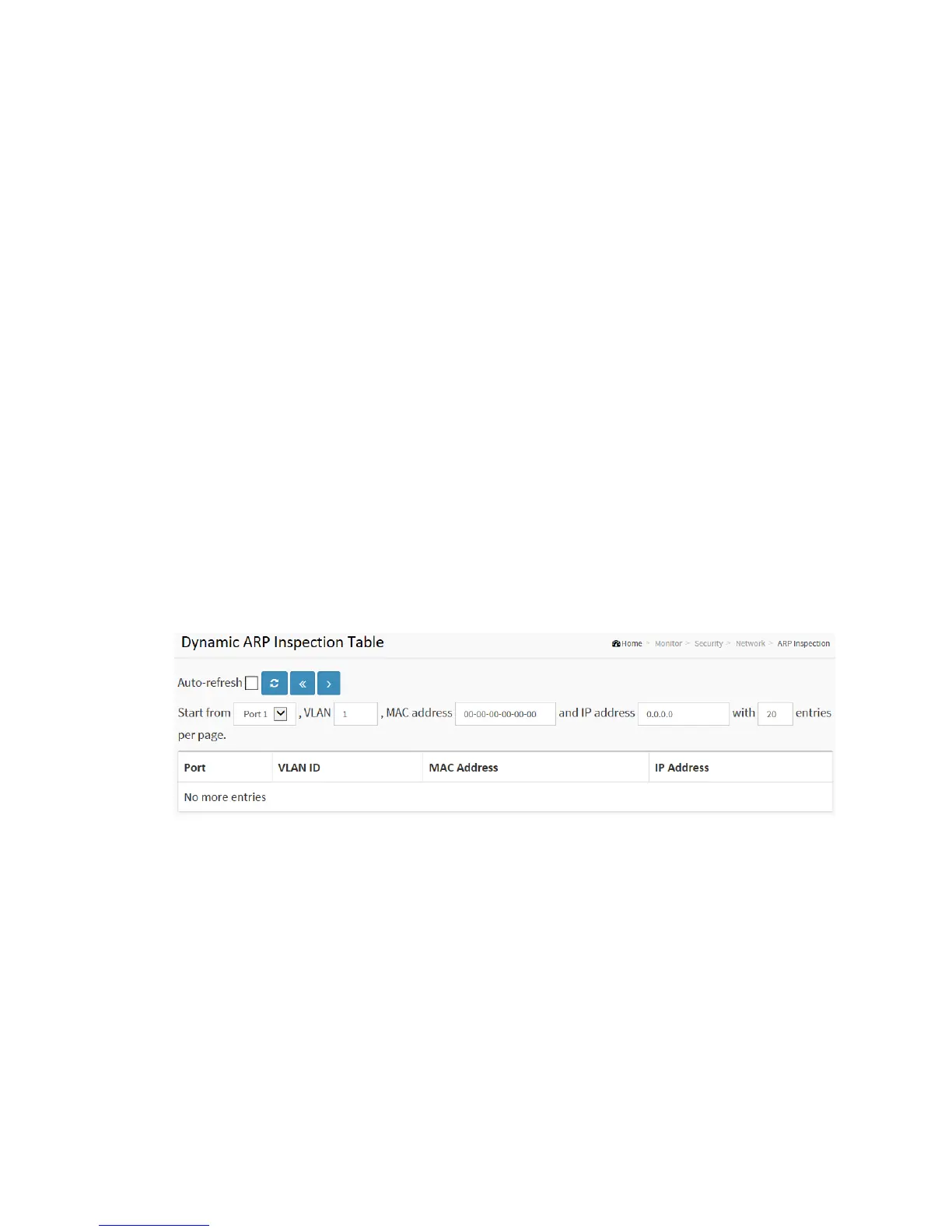

Figure 3-6.2.4: The Dynamic ARP Inspection Table
Parameter description:
Navigating the ARP Inspection Table:
Each page shows up to 99 entries from the Dynamic ARP Inspection table, default being 20,
selected through the "entries per page" input field. When first visited, the web page will show
the first 20 entries from the beginning of the Dynamic ARP Inspection Table.
The "Start from port address", "VLAN", "MAC address" and "IP address" input fields allow the
user to select the starting point in the Dynamic ARP Inspection Table. Clicking the button will
update the displayed table starting from that or the closest next Dynamic ARP Inspection Table
