3-6.4.1.2 History
This section provides an overview of RMON History entries. Each page shows up to 99
entries from the History table, default being 20, selected through the "entries per
page" input field. When first visited, the web page will show the first 20 entries from
the beginning of the History table. The first displayed will be the one with the lowest
History Index and Sample Index found in the History table.
The "Start from History Index and Sample Index" allows the user to select the starting
point in the History table.
The "Start from History Index and Sample Index" allows the user to select the starting
point in the History table. Clicking the button will update the displayed table starting
from that or the next closest History table match.
The will use the last entry of the currently displayed entry as a basis for the next
lookup. When the end is reached the text "No more entries" is shown in the displayed
table. Use the button to start over.
Web Interface
To configure a RMON history Configuration in the web interface:
1. Specify Port which wants to check.
2. Click Security, Switch, RMON, History.
3. Checked “Auto-refresh”.
4. Click “Refresh” to refresh the port detailed statistics or clear all information when
you click “ Clear”.

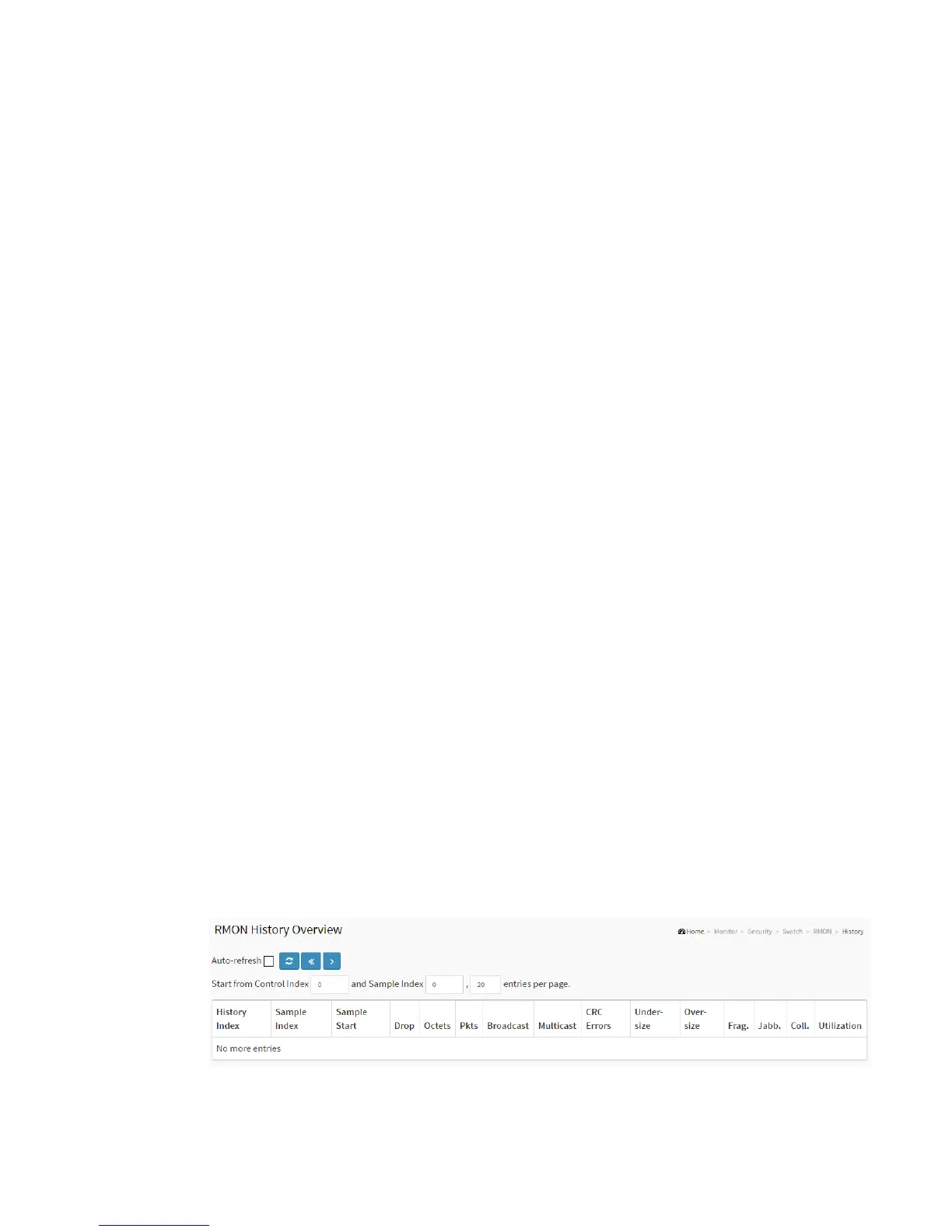

Figure 3-6.4.1.2: RMON History Overview
