3-6.4.1.3 Alarm
This page provides an overview of RMON Alarm entries. Each page shows up to 99
entries from the Alarm table, default being 20, selected through the "entries per page"
input field. When first visited, the web page will show the first 20 entries from the
beginning of the Alarm table. The first displayed will be the one with the lowest ID
found in the Alarm table.
The "Start from Control Index" allows the user to select the starting point in the Alarm
table.
Clicking the button will update the displayed table starting from that or the next
closest Alarm table match.
The will use the last entry of the currently displayed entry as a basis for the next
lookup. When the end is reached the text "No more entries" is shown in the displayed
table. Use the button to start over.
Web Interface
To configure a RMON Alarm Overview in the web interface:
1. Specify Port which wants to check.
2. Click Security, Switch, RMON, Alarm.
3. Checked “Auto-refresh”.
4. Click “Refresh” to refresh the port detailed statistics.

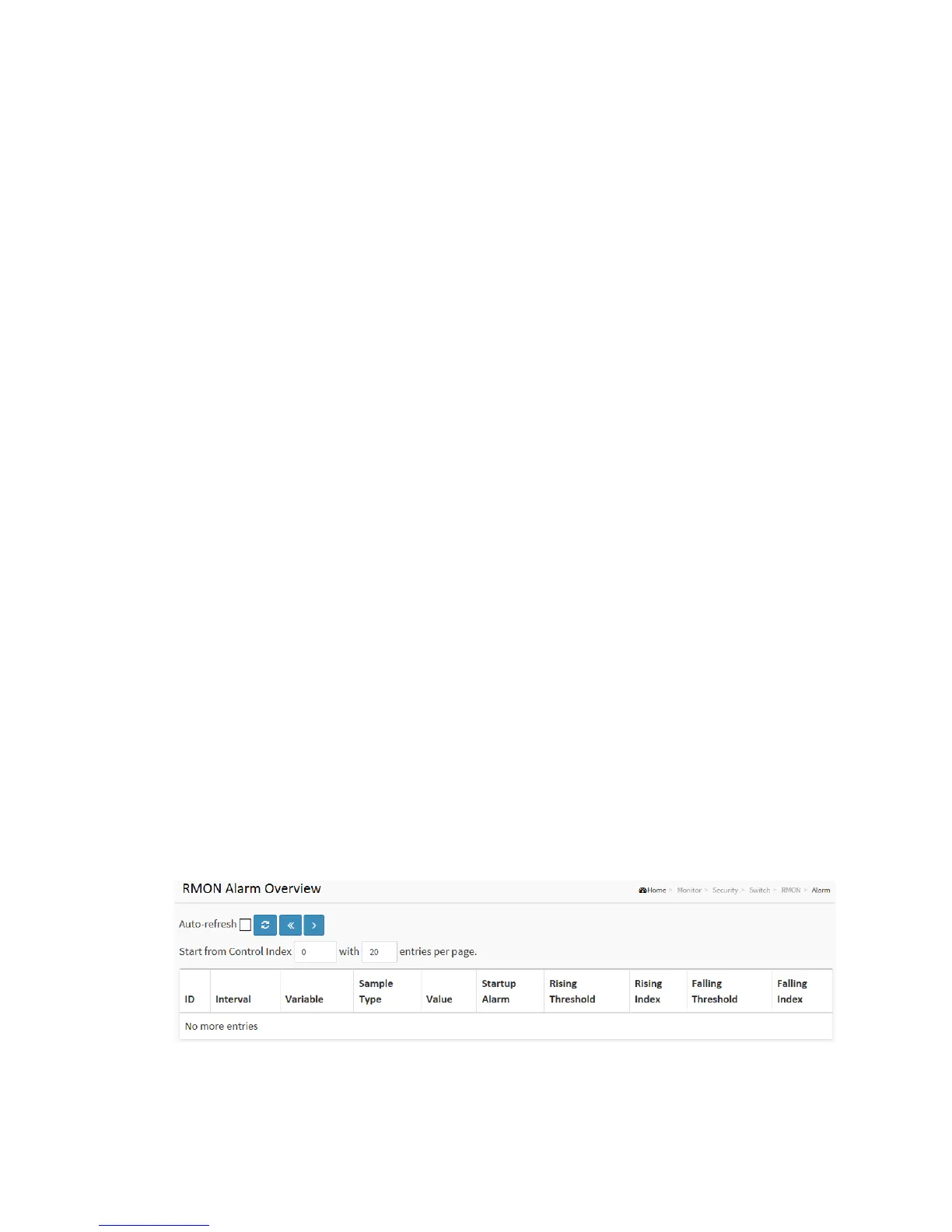

Figure 3-6.4.1.3: RMON Alarm Overview
