3-11.1.2 Group Information
After you complete to set the IGMP Snooping function then you could let the switch to
display the IGMP Snooping Group Information. Entries in the IGMP Group Table are
shown on this page. The IGMP Group Table is sorted first by VLAN ID, and then by
group. The will use the last entry of the currently displayed table as a basis for the next
lookup. When the end is reached the text "No more entries" is shown in the displayed
table. Use the button to start over.
Web Interface
To display the IGMP Snooping Group Information in the web interface:
1. Click Monitor, IGMP Snooping, Group Information
2. If you want to auto-refresh the information then you need to evoke the
“Auto-refresh”.
3. Click “Refresh” to refresh an entry of the IGMP Snooping Groups Information.
4. Click “<< or >> “to move to previous or next entry.

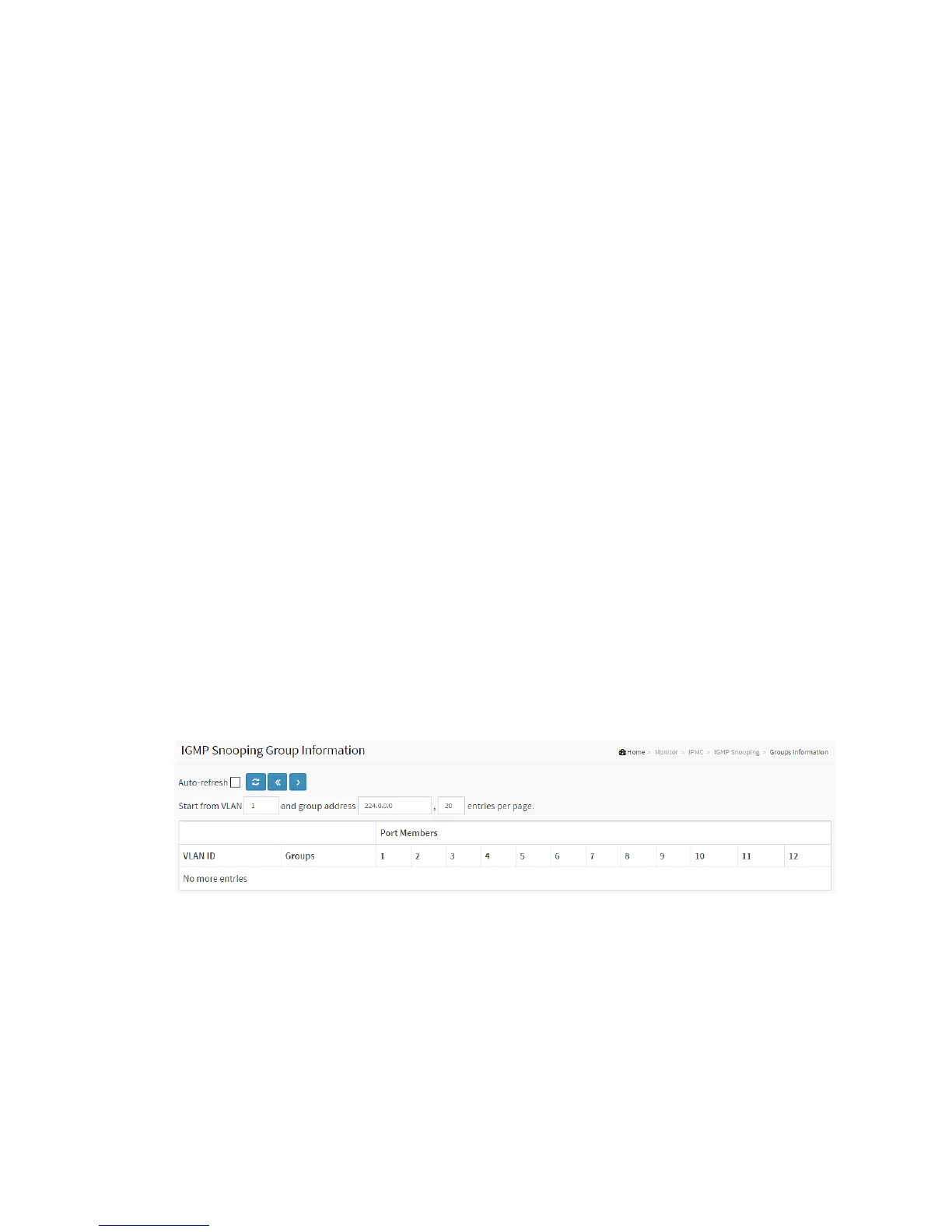

Figure 3-11.1.2: The IGMP Snooping Groups Information.
Parameter description:
Navigating the IGMP Group Table
Each page shows up to 99 entries from the IGMP Group table, default being 20,
selected through the "entries per page" input field. When first visited, the web page
will show the first 20 entries from the beginning of the IGMP Group Table.
