5.7 Monitoring Operating Status
5.7.1 Using Monitor Mode
Three items can be displayed in Monitor mode at a time. Also, some items, such as the
frequency item, can be edited. You can select the displayed items in Configuration (CNF) mode.

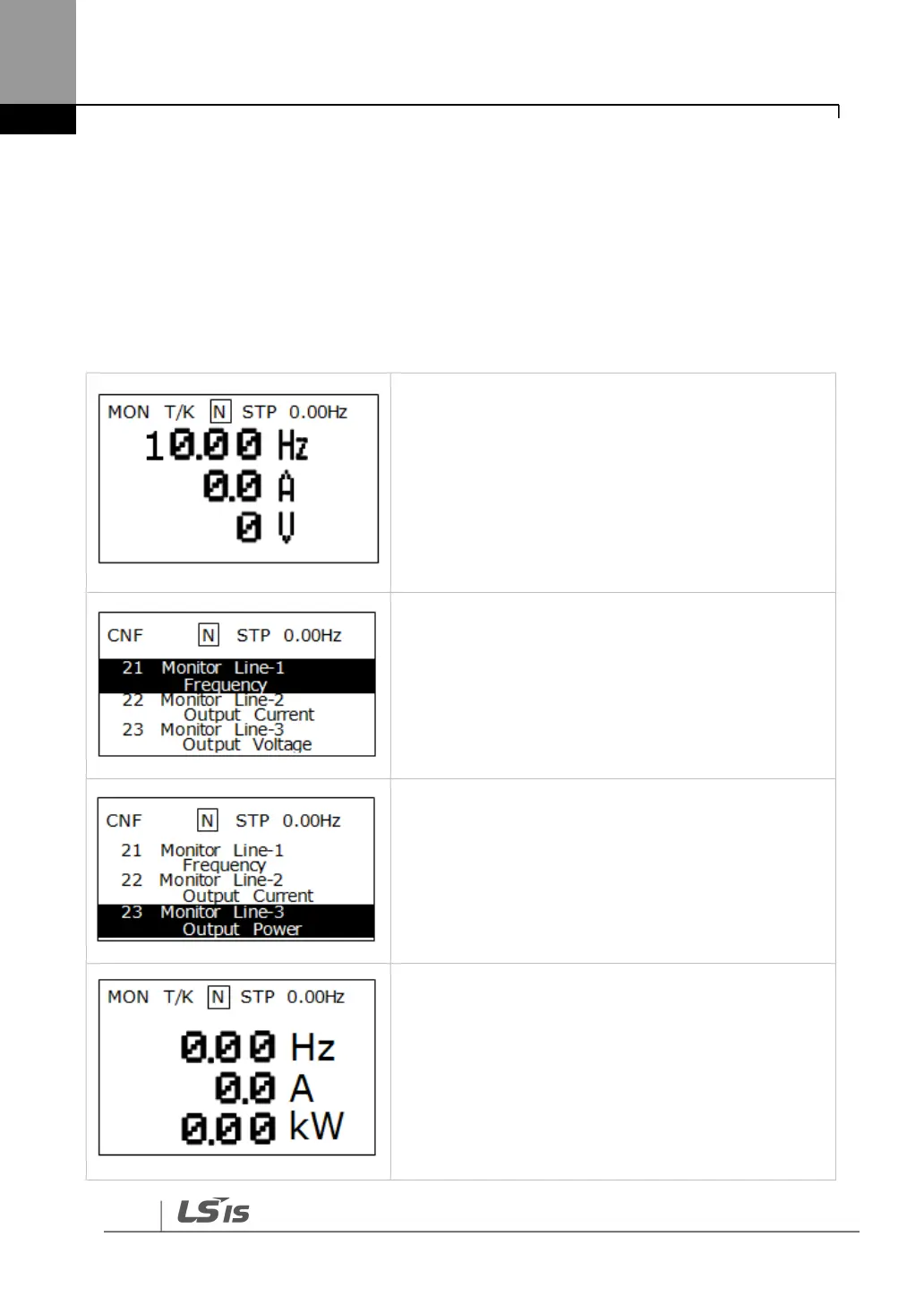

• This is the initial display in Monitor mode.
• The frequency, current, and voltage are set as the
default monitor items.
• The frequency reference is displayed when the
inverter operation has stopped, and the operating
frequency is displayed when the inverter is
operating.
• You can set the items to display in Monitor mode in
sequence from 21 to 23 in Configuration (CNF)
mode.
• Press the [Down] key to move to code No. 23
• Change the code No. 23 item in Monitor mode to
the output power.
• Ensure that the third displayed item in Monitor
mode is changed to the output power.
