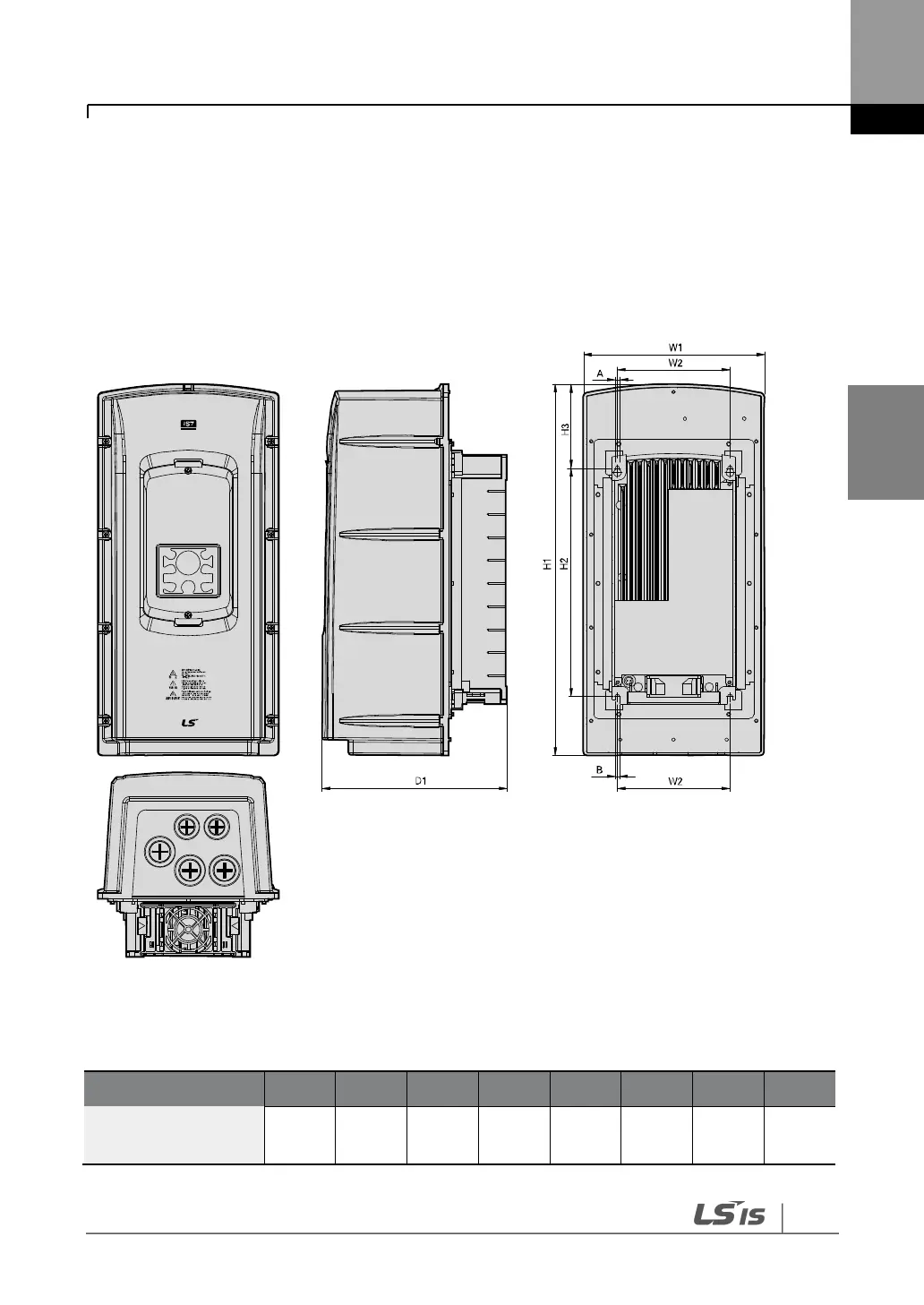

3.4 Exterior and Dimensions (UL Enclosed Type 12,
IP54 Type)
SV0008-0037iS7 (200 V/400 V)
Units: mm (inch)
Inverter Capacity
W1
W2
H1
H2
H3
D1
A
B
SV0008–0037 iS7-2/4
204.2
(8.03)
127
(5.0)
419
(16.49)
257
(10.11)
95.1
(3.74)
208
(8.18)
5
(0.19)
5
(0.19)
