LSIS SV-IS7 User Manual

Basic Functions
132

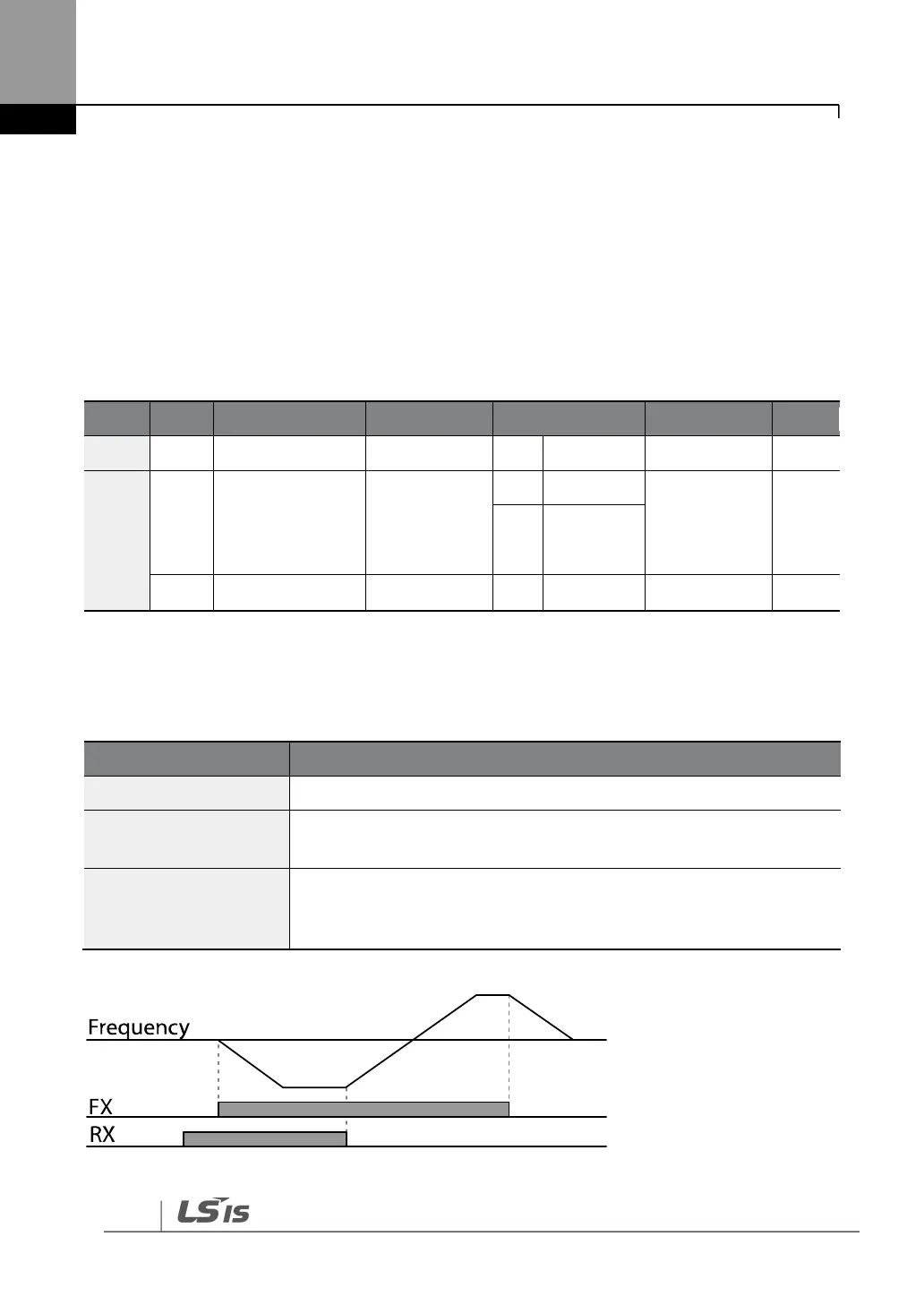

6.5.3 The Terminal Block as a Command Input Device (Run and
Rotation Direction Commands)
Multi-function terminals can be selected as a command input device. This is configured by
setting DRV-06 (command source) to “2 (Fx/Rx-2)”. Select two terminals for run and rotation
direction commands, and then set the relevant codes (2 of the 11 multi-function terminal codes,
IN-65–75 for P1–P11 [optional: P9–P11]) to “1 (Fx)” and “2 (Rx)” respectively. This application uses
an Fx input as a run command, and an Rx input to change a motor’s rotation direction (On: Rx,
Off: Fx).
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
DRV
06
Command source
Cmd Source
2
Fx/Rx-2
0–5
-
IN
65–75
Px terminal
configuration
Px Define (Px:
P1–P8
[optional: P9–
P11])
1
Fx
-
-
2
Rx
88
Delay time setting
Run On Delay
-
1.00
0.00–100.00
Sec
Run Command and Fwd/Rev Change Command Using Multi-function Terminal –
Setting Details
Code
Description
DRV-06 Cmd Source
Set to “2 (Fx/Rx-2)”.
IN-65–75 Px Define
Assign a terminal for the run command (Fx).
Assign a terminal for changing the rotation direction (Rx).
IN-88 Run On Delay
Set the delay time if the inverter operation needs to be synchronized
with other sequences. When the run command input (Fx/Rx) is given,
the operation begins after the set time has elapsed.
