LSIS SV-IS7 User Manual

Connecting the Cables
70

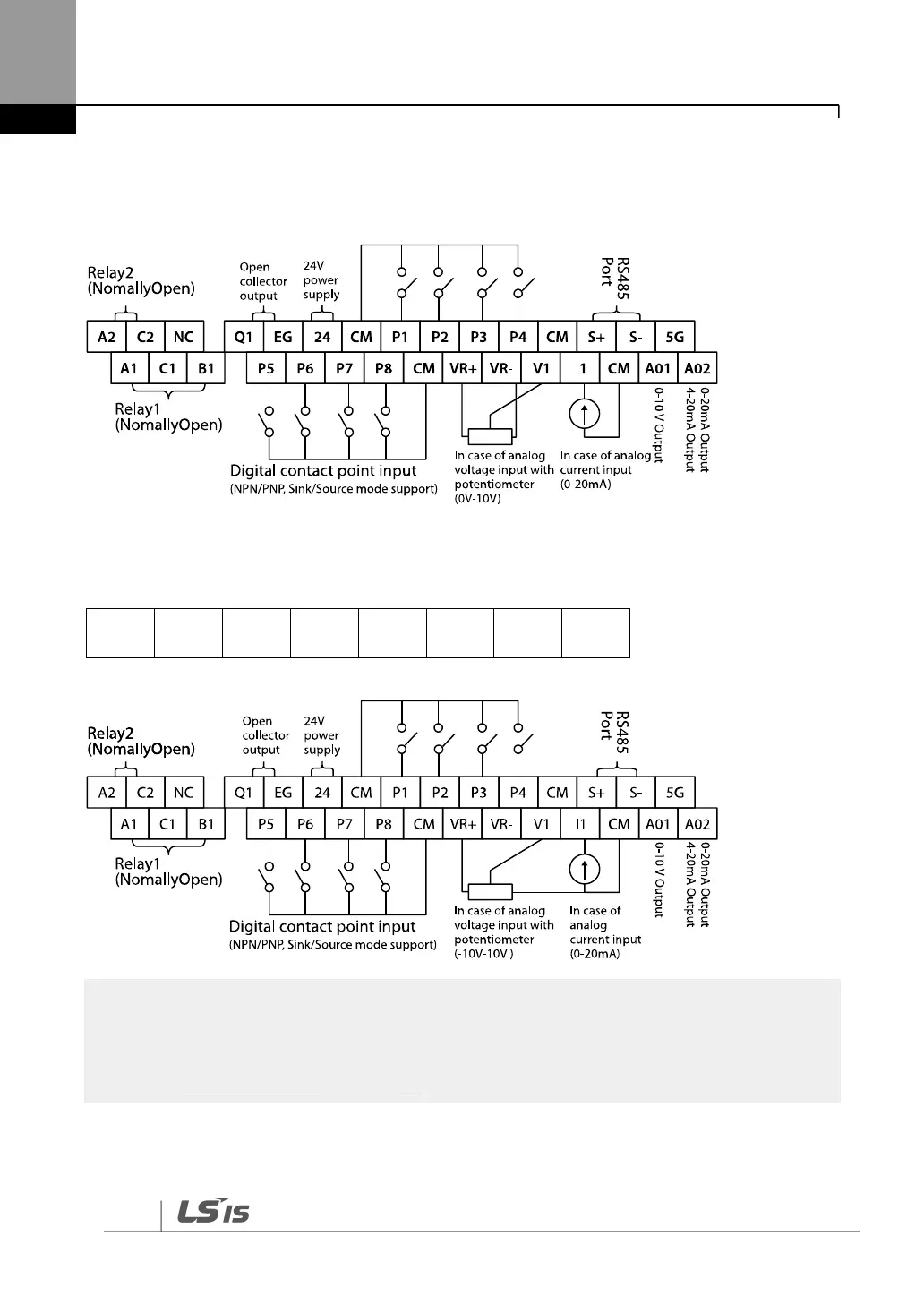

4.8.3 0.75–22 kW (Basic I/O)
Wiring Examples
Default Functions Assigned for the Multi-Function Terminals
P1
P2
P3
P4
P5
P6
P7
P8
FX
RX
BX
RST
Sp-L
Sp-M
Sp-H
JOG
Note
• The TR (termination resistor) switch is used to terminate the RS485 network connection (120 Ω).
• For analog voltage input, use a potentiometer rated at 0.5W, 1kOhm.
• Refer to 8 Table of Functions on page 154 for the multi-function terminal configurations.
