5.7.3
Using the Status Display
The items displayed on the right-top of the display are shown in other modes, including
Monitor mode. If you register a desired variable in the display, you can monitor it at any time
regardless of the mode navigation or change.

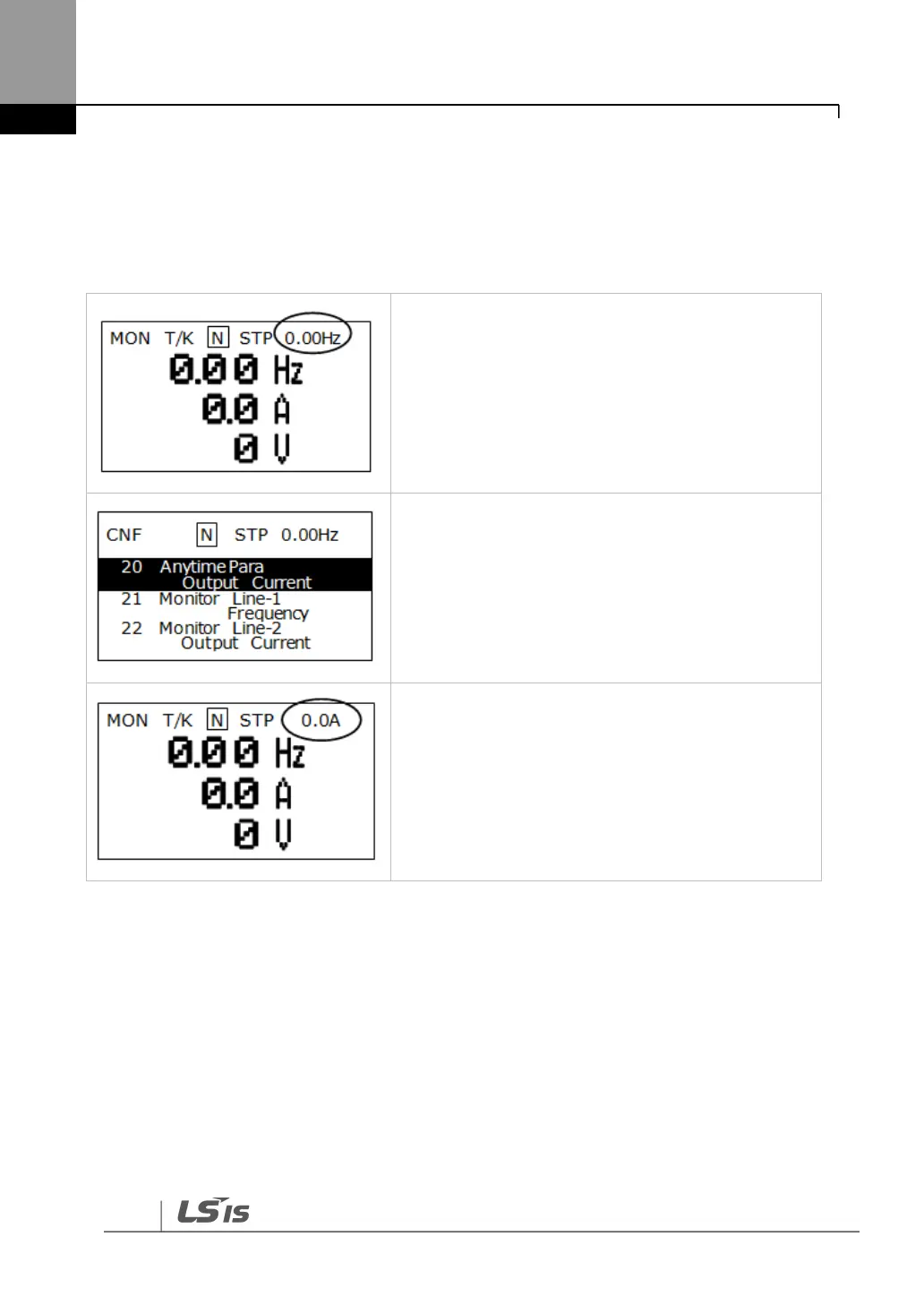

• This is the initial display of Monitor mode.
• When the inverter settings are set to the factory
default, the status item displays the frequency.
• Select the item to display in the status display in
code 20 of Configuration (CNF) mode.
• Press the [PROG/ENT] key to change the item to
the output current.
• The unit at the top of the display is changed from
hertz (frequency) to amps (current).
• Ensure that the unit in the status display is
changed to amps (current) in Monitor mode.
To Next Page
