• Inverters with a rated capacity of 11 kW or more are equipped with linearly arranged terminal
blocks.
• 0.75–22 kW inverters have built-in DC reactors. The installation of an external DC reactor is not
necessary for these inverters.
• The inverter must be properly grounded using the ground terminal.

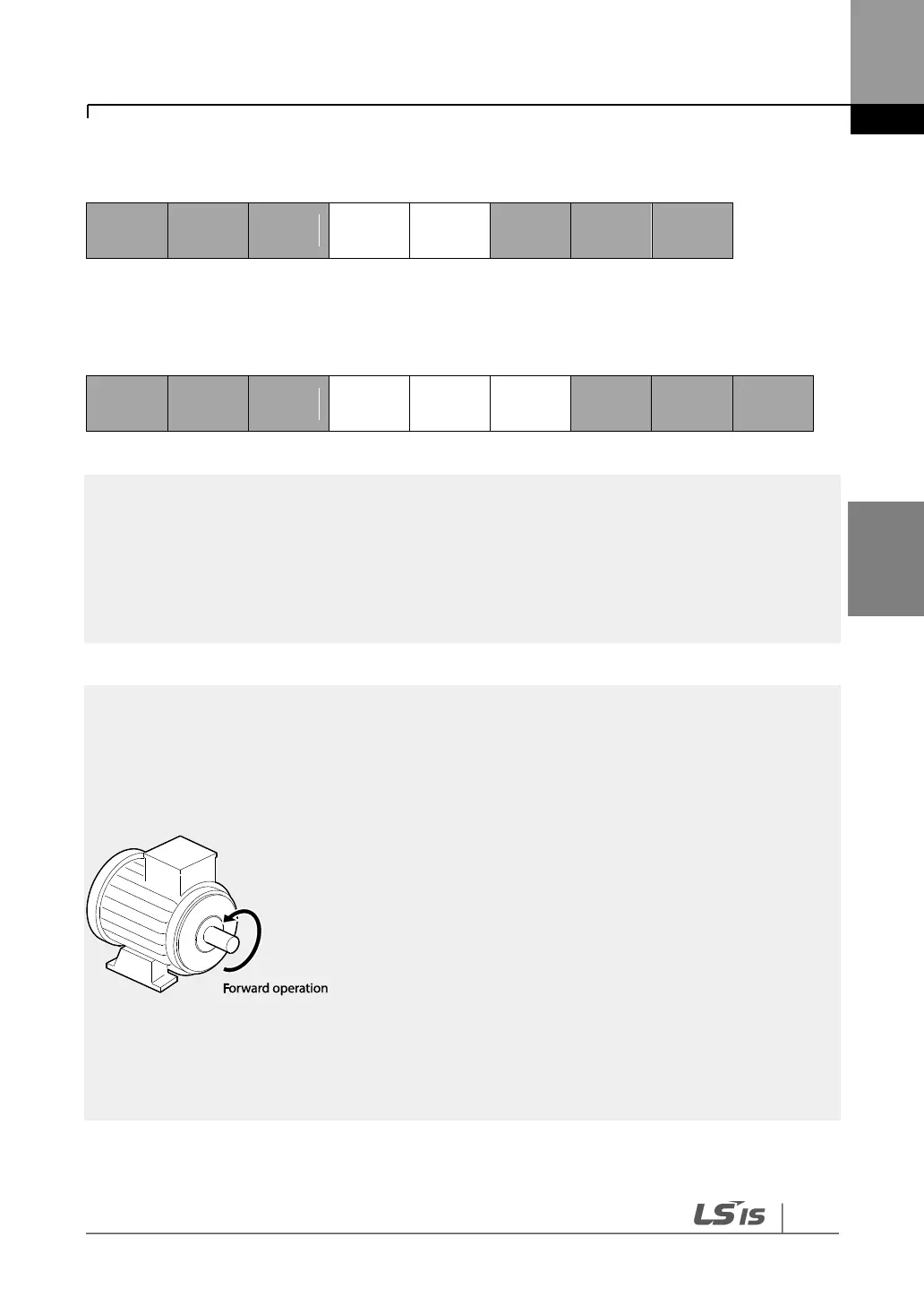

If the forward command (Fx) is turned on, the motor should rotate counterclockwise when viewed
from the load side of the motor. If the motor rotates in the reverse direction, switch the cables at the
U and V terminals.
Remarque
Si la commande avant (Fx) est activée, le moteur doit tourner dans le sens anti-horaire si on le
regarde côté charge du moteur. Si le moteur tourne dans le sens inverse, inverser les câbles aux
bornes U et V.
