LSIS SV-IS7 - Page 33

Installing the Inverter
22

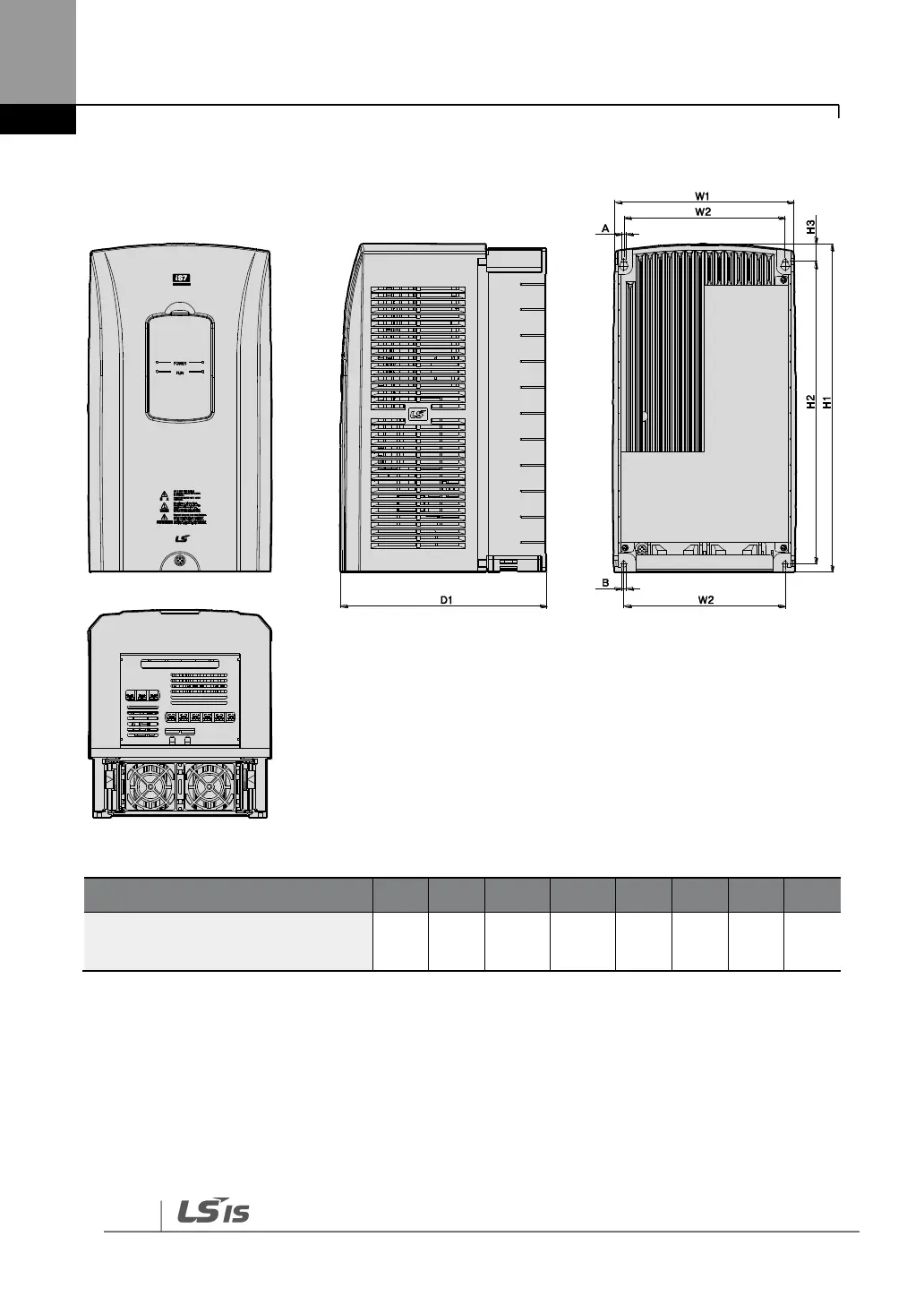

SV0055-0075iS7 (200 V/400 V)
Units: mm (inch)
Inverter Capacity
W1
W2
H1
H2
H3
D1
A
B
SV0055–0075 iS7 - 2/4
200
(7.87)
176
(6.92)
355
(13.97)
327
(12.87)
19
(0.74)
225
(8.85)
5
(0.19)
5
(0.19)
