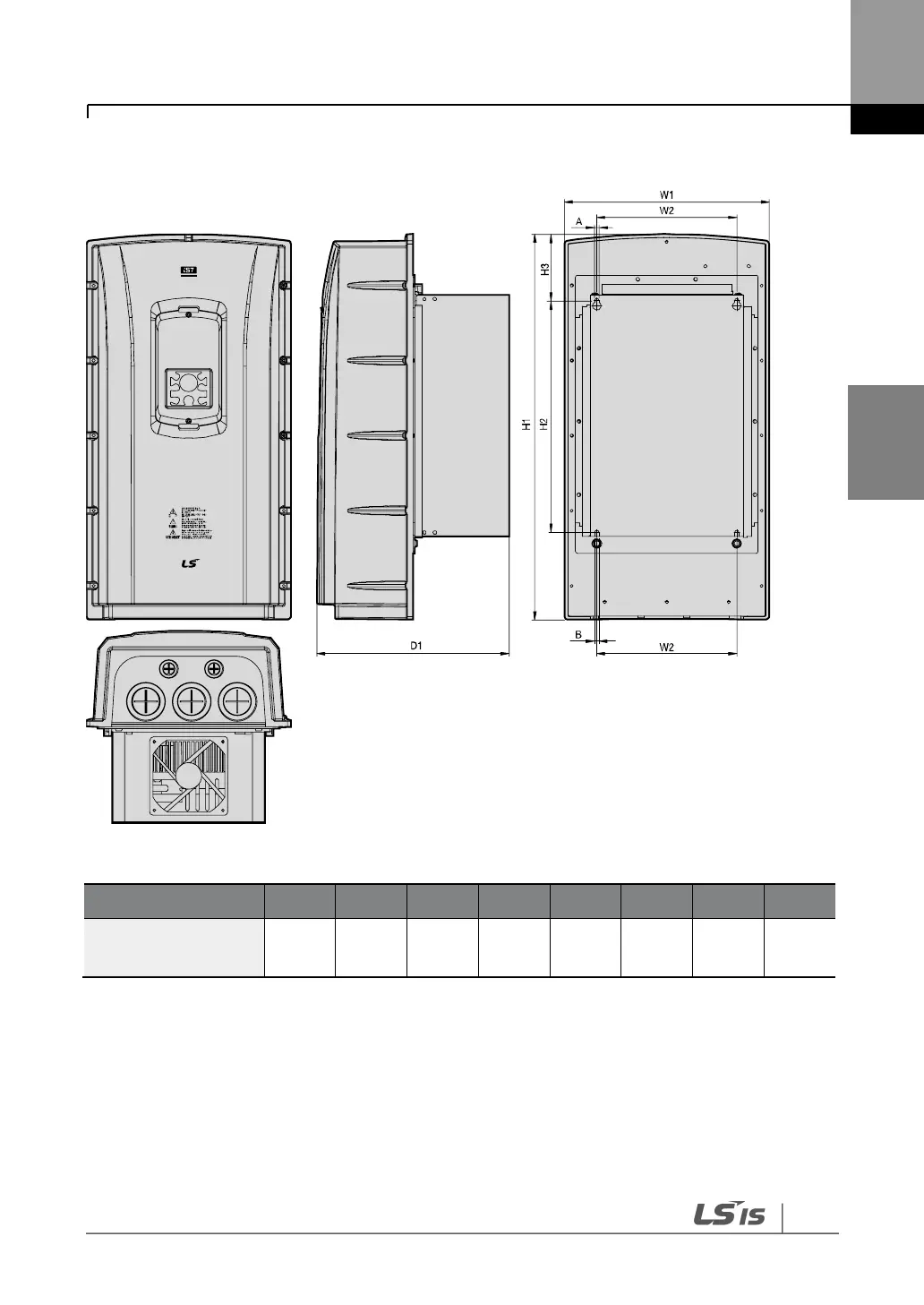

SV0110-0150iS7 (200 V/400 V)
Units: mm (inch)
Inverter Capacity
W1
W2
H1
H2
H3
D1
A
B
SV0110–0150 iS7-2/4
313.1
(12.32)
214.6
(8.44)
590.8
(23.25)
355
(13.97)
101.7
(4.0)
294.4
(11.59)
6.5
(0.25)
6.5
(0.25)
