Page 106
TROUBLESHOOTING
Refer to the repair procedures in this manual to
correct leaks.
99

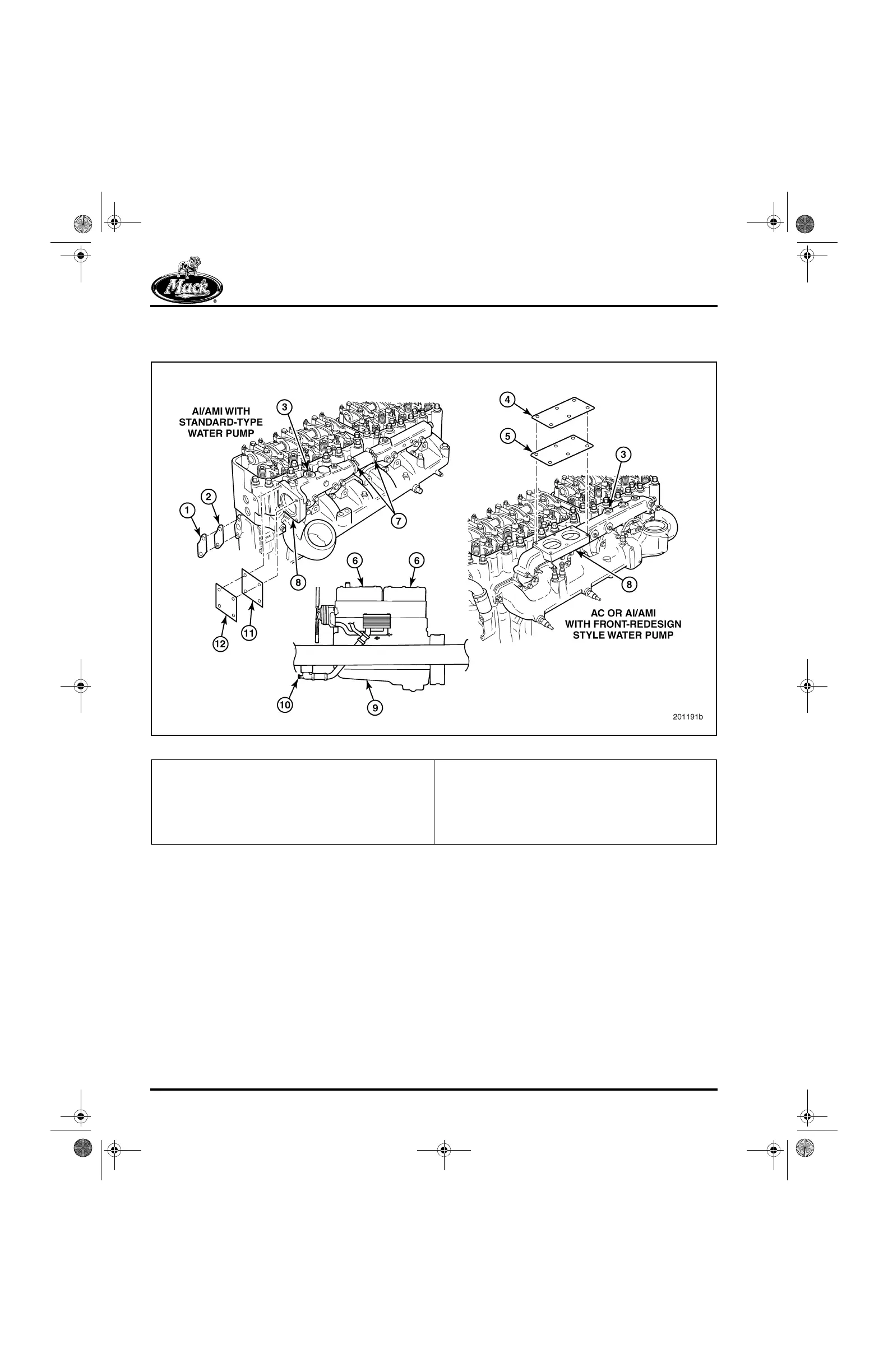

Figure 99 — Cylinder Block/Cylinder Head Leak Check (In Chassis)
1. Water Pump Inlet Cover Plate
2. Gasket
3. Remove pipe plug and install air inlet fitting on water
manifold.
4. Dual Thermostat Cover Plate
5. Gasket
6. Remove valve covers.
7. Install additional hose clamp.
8. Remove housing and thermostat.
9. Remove oil pan.
10. Drain coolant.
11. Gasket
12. Water Manifold Cover Plate
