REPAIR INSTRUCTIONS, PART 1
Page 167
Air Compressor Removal
[261 CK]
Refer to Figure 160.
Disconnect the coolant supply and return lines at
the fittings on the air compressor cylinder head.
Tag and cap the lines.
160

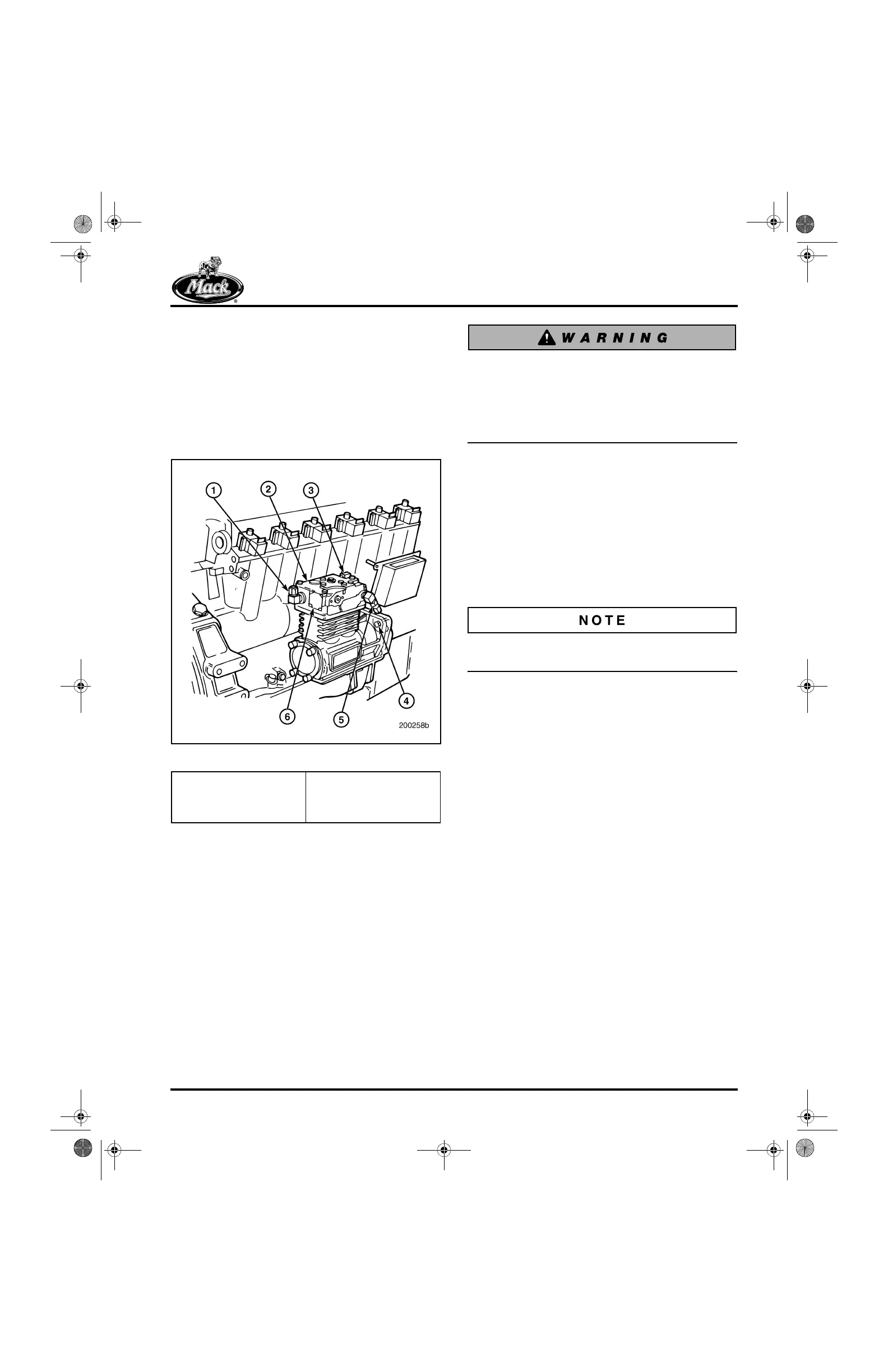

Figure 160 — Air Compressor Connections
The air compressor is heavy. Lifting the air
compressor may require the help of an
assistant or suitable lifting device. Attempting
to lift the compressor without such
assistance may result in severe personal
injury.
Refer to Figure 161.
1. Remove the three mounting capscrews
securing the air compressor to the auxiliary
shaft housing.
2. Taking care not to damage or lose the
lubrication oil supply tube, remove the air
compressor by pulling it rearward out of the
mounting flange. Remove and discard the
gasket.
If the oil supply tube is lost and not reinstalled, the
air compressor will fail from lack of lubrication.
1. Coolant Supply Line
2. Air Compressor Head
3. Coolant Return Line
4. Capscrew
5. Drain Fitting
6. Air Governor Mounting
Flange
