Page 14
VISUAL IDENTIFICATION
3

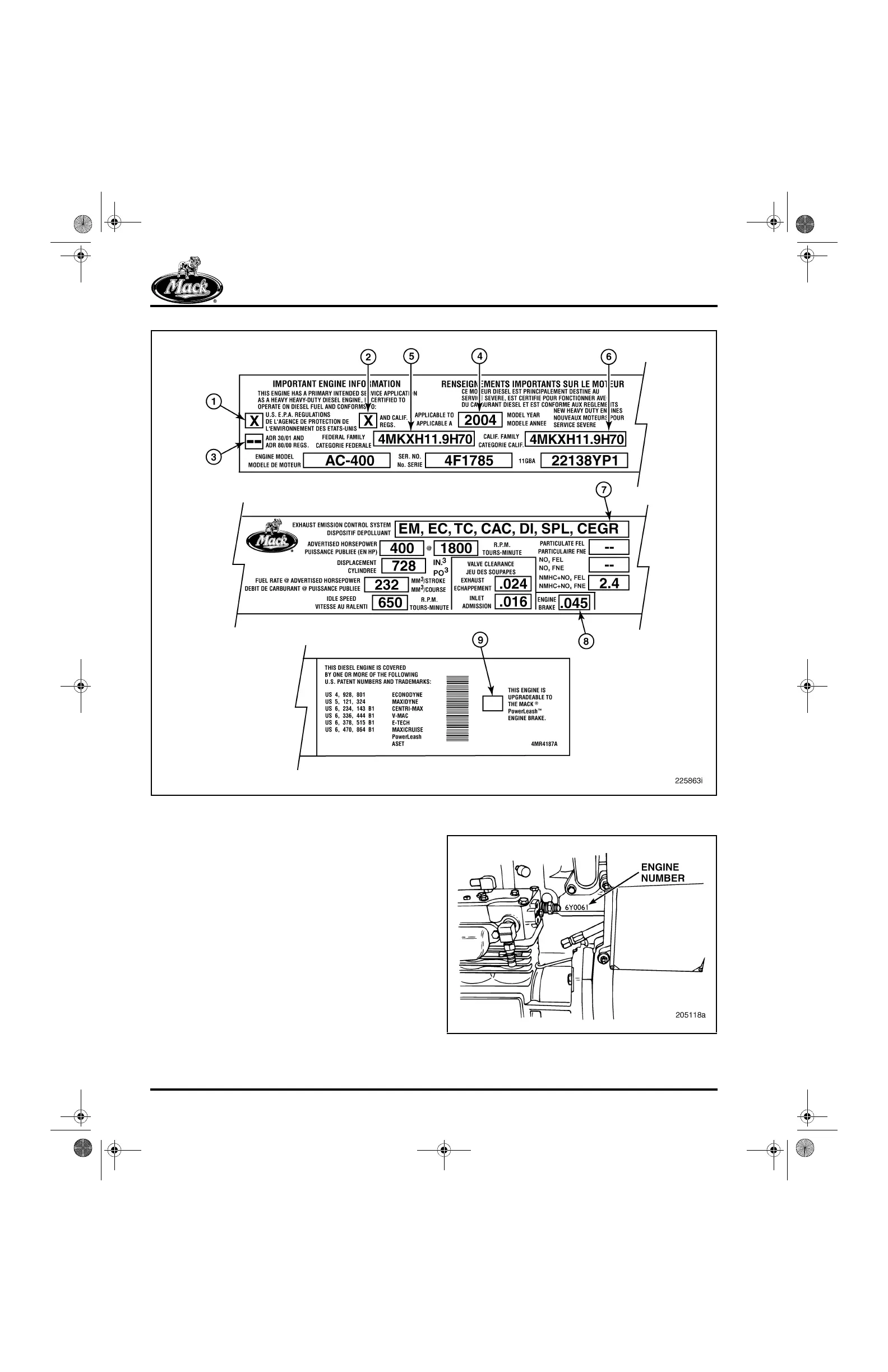

Figure 3 — Sample of Completed Plate
Engine Serial Number Identification
In addition to the engine information plate on the
front cylinder head cover, the engine is also
identified by the engine serial number stamped
into the cylinder block. This serial number is
located on the block right side just below the
turbo oil drain tube flange as shown in Figure 4.
4
Figure 4 — Engine Serial Number
5-111.bk Page 14 Monday, July 10, 2006 2:26 PM
