Page 164
REPAIR INSTRUCTIONS, PART 1
Fuel Nozzle Inlet Tube Assembly
Removal
[222 KD]
1. Remove the three retaining nuts and remove
the two outer EUP heat shields (Figure 155).
2. Remove the four retaining nuts securing the
inner heat shield to the cylinder block and
remove the shield.
155

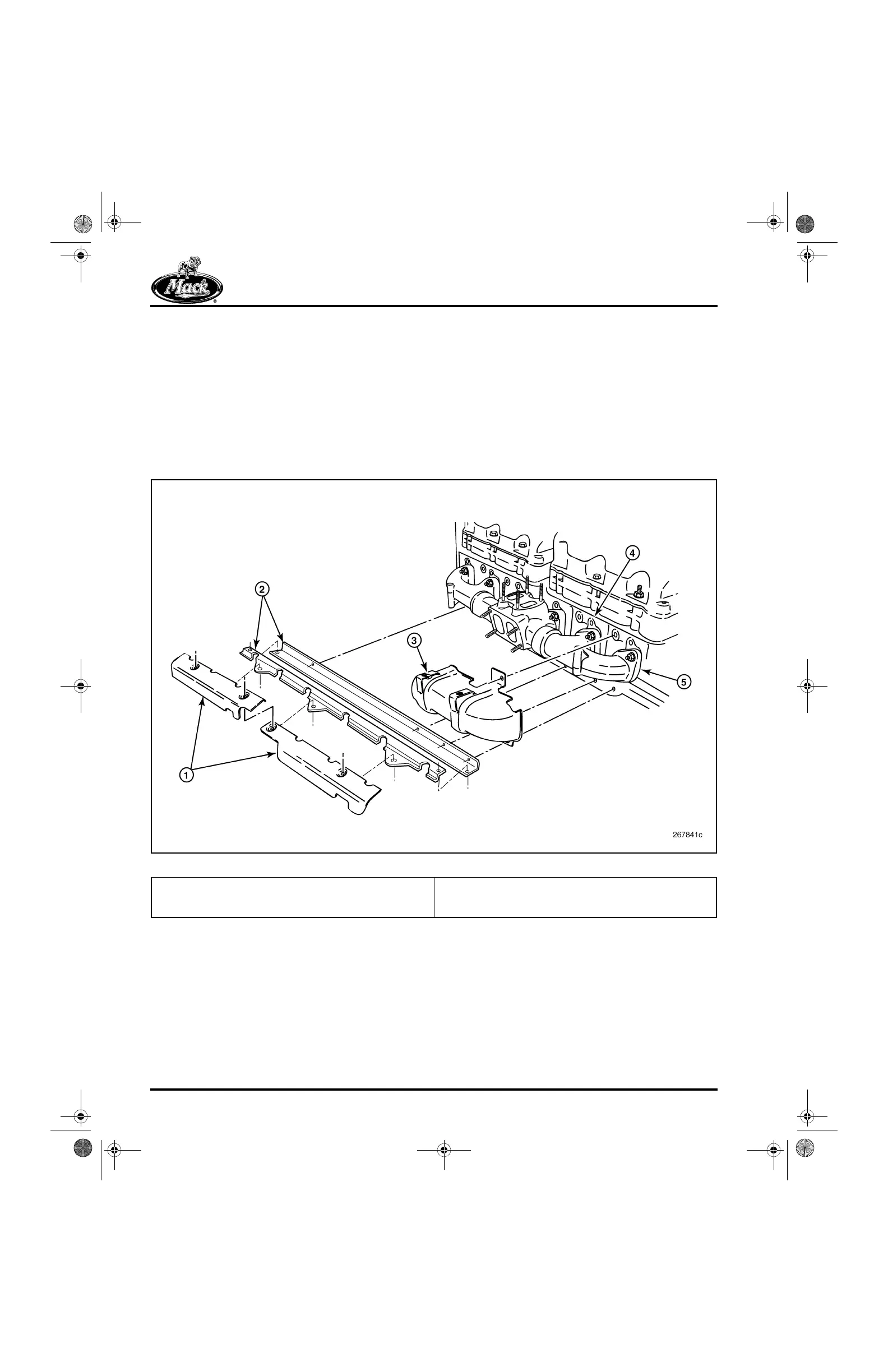

Figure 155 — EGR Valve and EUP Heat Shields
1. EUP Heat Shield (Outer)
2. EUP Heat Shield (Inner, Two Piece)
3. EGR Valve Heat Shield (Lower)
4. Cylinder Head
5. Exhaust Manifold
