REPAIR INSTRUCTIONS, PART 1
Page 357
EGR Cooler Installation
[214 HM]
1. Place the EGR cooler assembly in position
at the right side of the cylinder block
(Figure 429). Install the four retaining nuts
and tighten to specification.

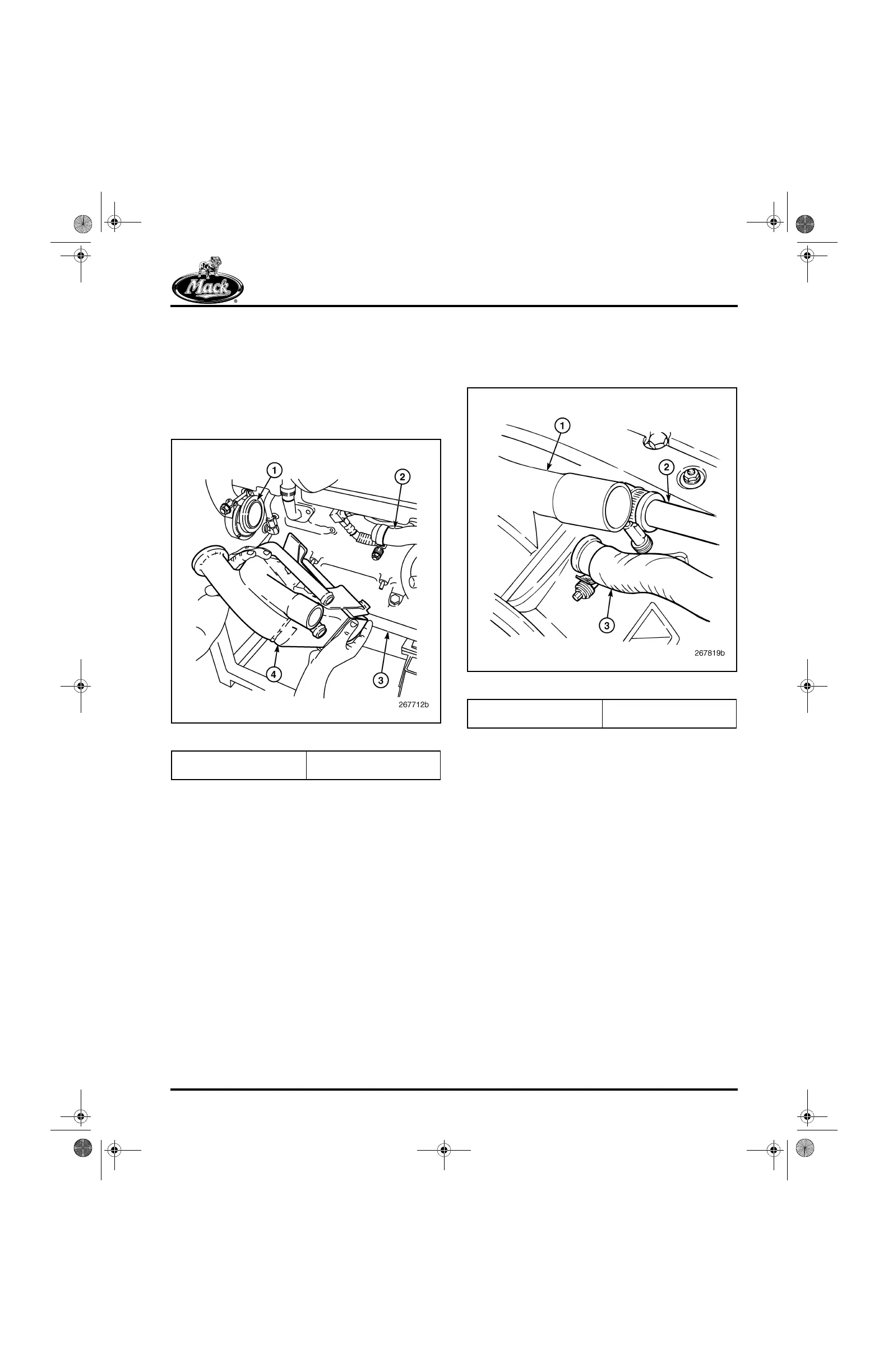

429
Figure 429 — EGR Cooler Installation
2. Install the coolant supply and return hoses at
the cooler inlet and outlet tubes. Install the
clamps and tighten to specification
(Figure 430).
430
Figure 430 — Coolant Connections
1. EGR Hot Tube
2. Coolant Return Hose
3. Cylinder Block
4. EGR Cooler
1. EGR Cooler
2. Coolant Supply Pipe
3. Coolant Return Hose
