REPAIR INSTRUCTIONS, PART 1
Page 205
Cylinder Sleeve Installation
[212 NC]
GENERAL INFORMATION
Satisfactory cylinder sleeve service life and good
head gasket seal is dependent on uniform
cylinder block counterbores and the correct
extension of the sleeve flanges above the top
deck of the cylinder block.
A crevice seal is not used with ASET™ engine
cylinder sleeves and should not be used for
engine repairs or rebuilds. As such, cylinder
sleeve part Nos. 509GC463 and 509GC466 for
service use do not have a crevice seal groove.
SPECIAL TOOLS REQUIRED
앫 Depth Gauge J 26948
앫 Dial Bore Gauge J 5347-B
앫 Cylinder Hone and Glaze Breaker J 5902-01
INSTALLATION PROCEDURE

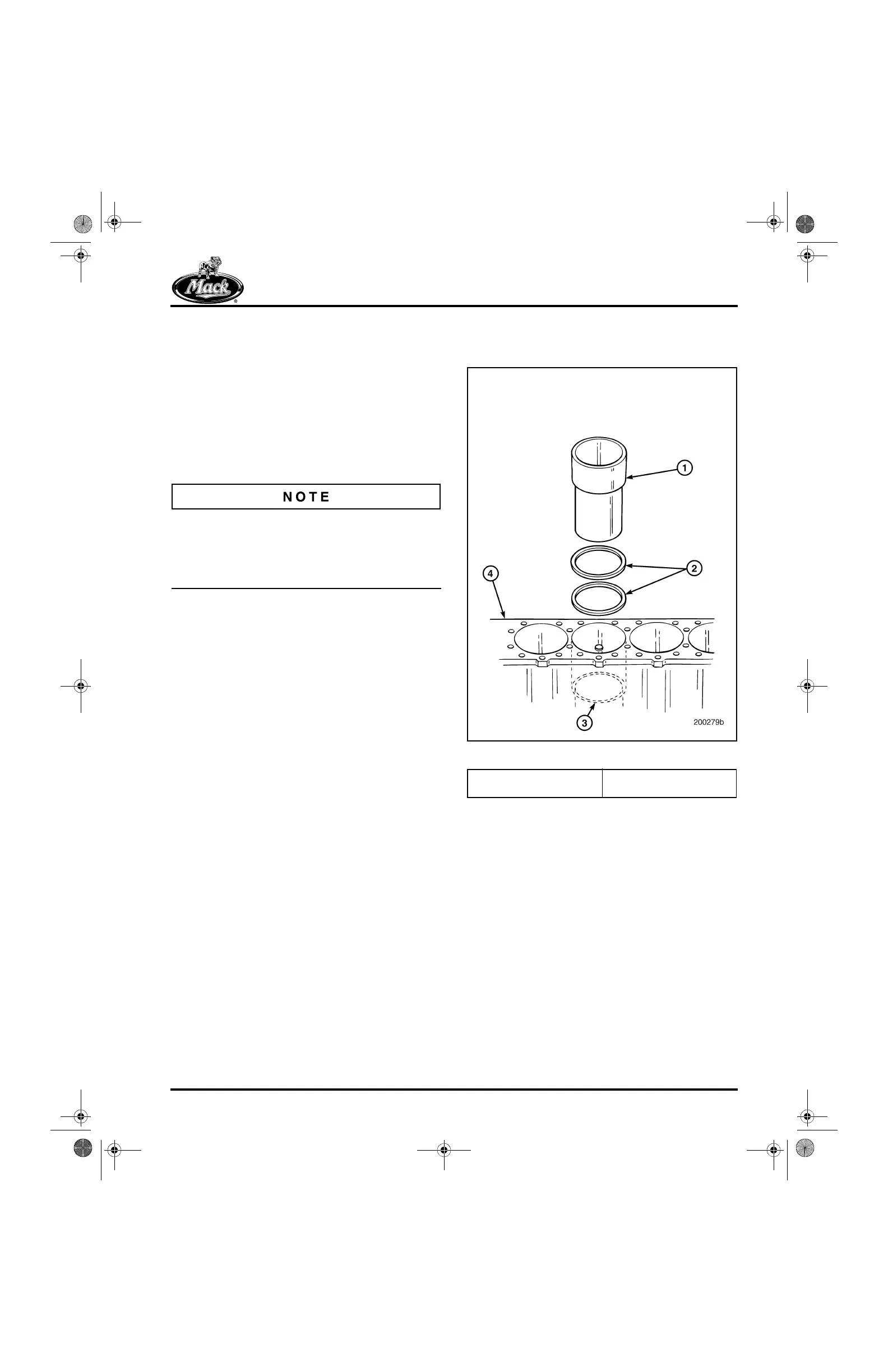

Refer to Figure 209.
209
Figure 209 — Sleeve Installation
1. Sleeve
2. Shims (as Required)
3. Counterbore Ledge
4. Cylinder Block
