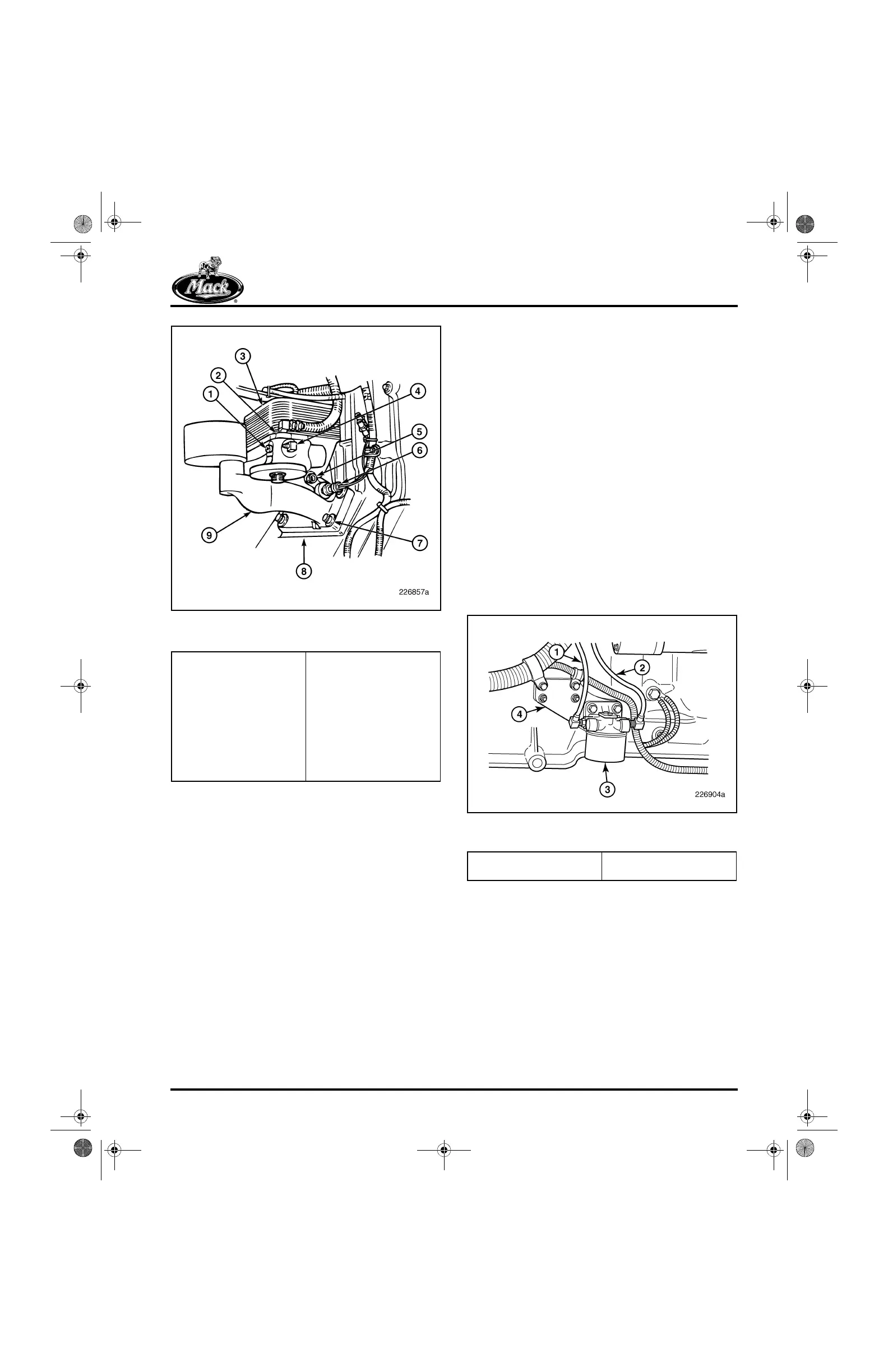

Figure 125 — Plate-Type Oil Cooler and Oil Filter
Mounting Bracket Removal
Oil Coalescing Air Filter Removal
If so equipped, the oil coalescing air filter
assembly and bracket must also be removed
before mounting the engine in a stand. Refer to
Figure 126 and remove the assembly as follows:
1. Disconnect and remove the outlet air line
from the air filter to the VTG position control
valve.
2. If not already done, disconnect and remove
the inlet air line from the filter assembly.
3. Remove and discard the filter element.
4. Remove the bolts securing the harness
clamps to the mounting bracket.
5. Remove the retaining nuts securing the
mounting bracket to the engine block and
remove the filter adapter and mounting
bracket as an assembly.
126
Figure 126 — Oil Coalescing Air Filter Assembly
Removal
1. Oil Supply Port (for
Mechanical Dashboard
Gauge)
2. Turbocharger Lubrication
Supply Line
3. Oil Cooler
4. Oil Supply Port (for
REPTO), Turbo
Unloader and
Remote-Mounted Oil
Filter
5. Oil Temperature Sensor
Port
6. Oil Pressure Sensor
7. Mounting Bracket
Capscrews (Four)
8. Cylinder Block
9. Oil Filter Mounting
Bracket
1. Outlet Air Line
2. Inlet Air Line
3. Oil Coalescing Air Filter
4. Mounting Bracket
