DESCRIPTION AND OPERATION
Page 69
78

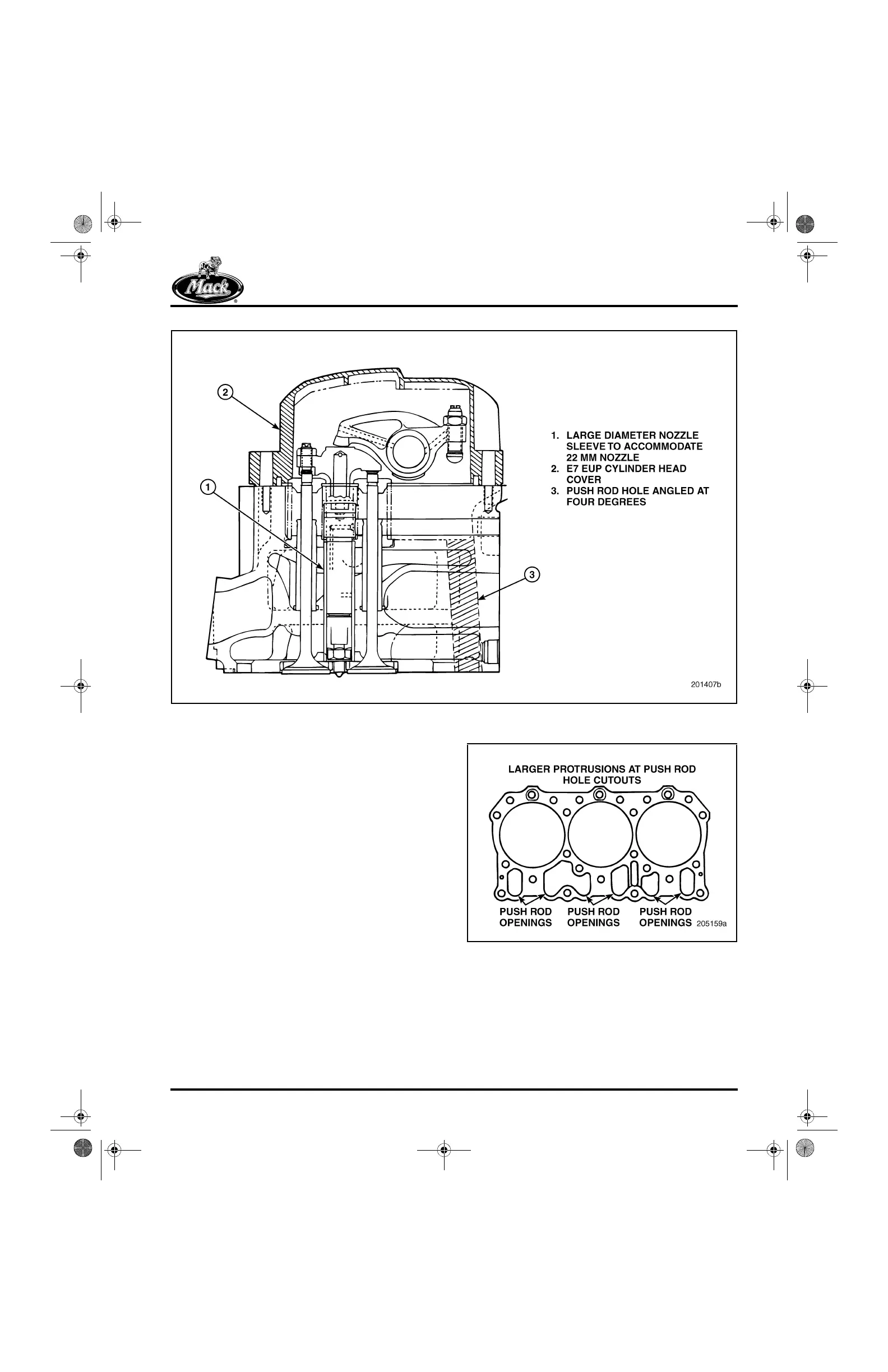

Figure 78 — Cylinder Head and Cover (ASET™ Engines)
Cylinder Head Gasket
ASET™ engines use the same fire ring as the E7
engine, but the cylinder head gaskets are
different. The gaskets are identical except for
obvious differences at the right-side push rod
cutout areas. The right-side edge of the E7
gasket is straight, except for protrusions at the
four right-side head bolt holes. The ASET™
gasket has these protruded areas as well, but
also has six larger protrusions at the push rod
hole cutouts (Figure 79). Care must be exercised
to use the proper gasket only on the engine for
which it is designed.
79
Figure 79 — ASET™ Head Gasket
