REPAIR INSTRUCTIONS, PART 1
7. When installing the oil pan on the engine,
center the pan before tightening the
fasteners so that the edges of the metal
isolator washers do not touch the pan. Refer
to Figure 365.
365

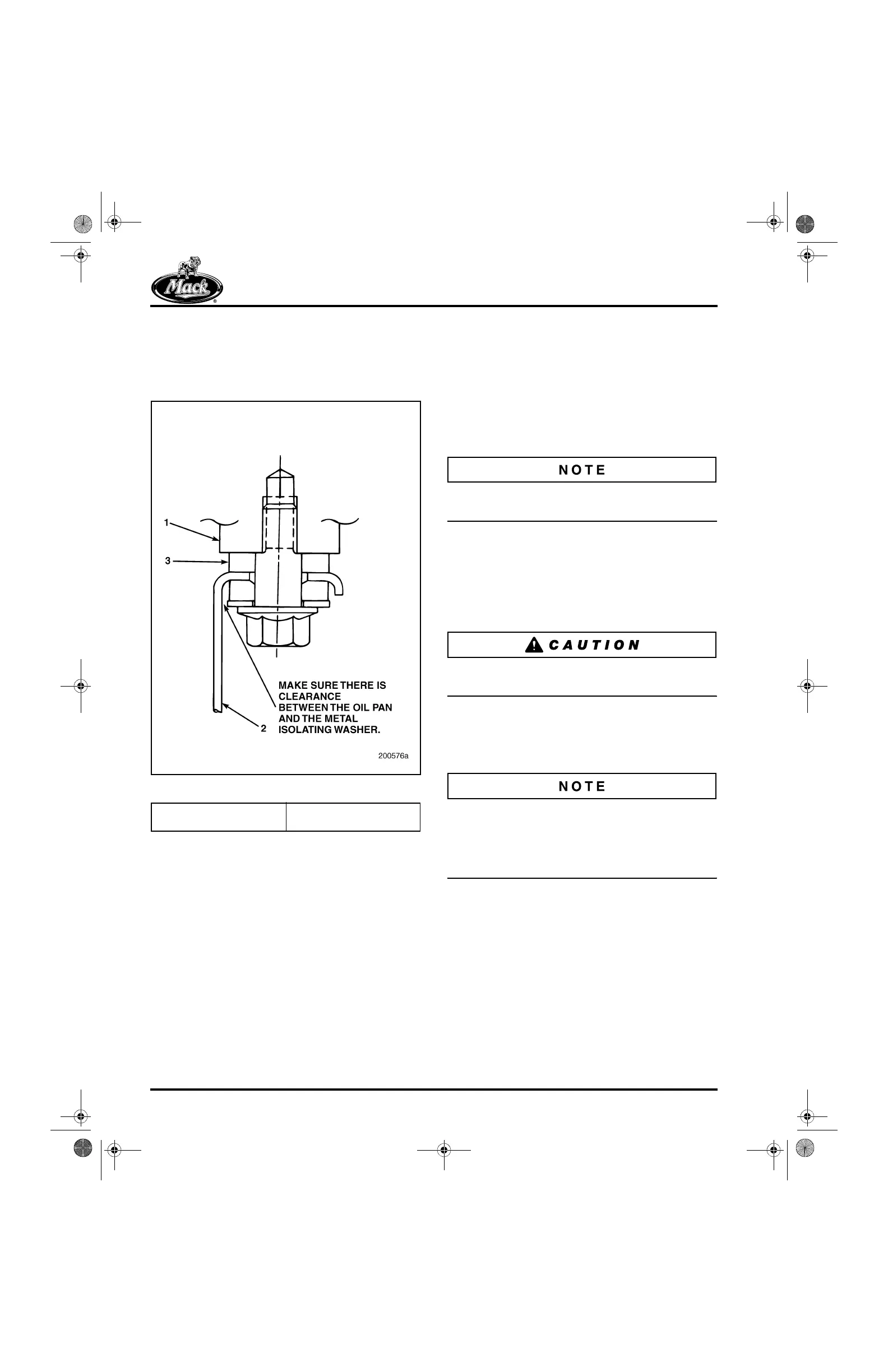

Figure 365 — Checking Clearance
Cylinder Head Installation
[213 EV]
Ensure that the cylinder heads are in acceptable
condition. Refer to the cylinder head inspection
procedures under “Cylinder Head
Reconditioning” in the REPAIR INSTRUCTIONS
section.
All MACK head gaskets are precoated and do not
require any type of additional sealing compound.
Refer to Figure 366.
1. Place the head gaskets in position on the
locating pins in the cylinder block deck.
2. Place a fire ring carefully in position on top of
each cylinder sleeve.
Check that the design of the fire rings used is the
correct match for the cylinder sleeves installed.
3. Place the partially assembled cylinder heads
(valves, nozzle holder sleeves, core/pipe
plugs installed) in position over the guide
pins on the cylinder block.
Two of the head mounting capscrews have
threaded holes drilled in the heads for
bracket-mounting purposes. The drilled
capscrews must be located in the correct
positions for proper bracket installation.
1. Cylinder Block
2. Oil Pan
3. Rubber Gasket
