COMPONENT LOCATOR
COMPONENT LOCATION
VIEWS
The locations of primary component assemblies
of the ASET™ AC engine are identified in the
illustrations contained in this section. These
views, however, do not include sensor locations.
Sensor locations are identified under “Engine
Electronic Control Unit (EECU) and System
Sensors” in the DESCRIPTION & OPERATION
section.
ASET™ AC Engine
95

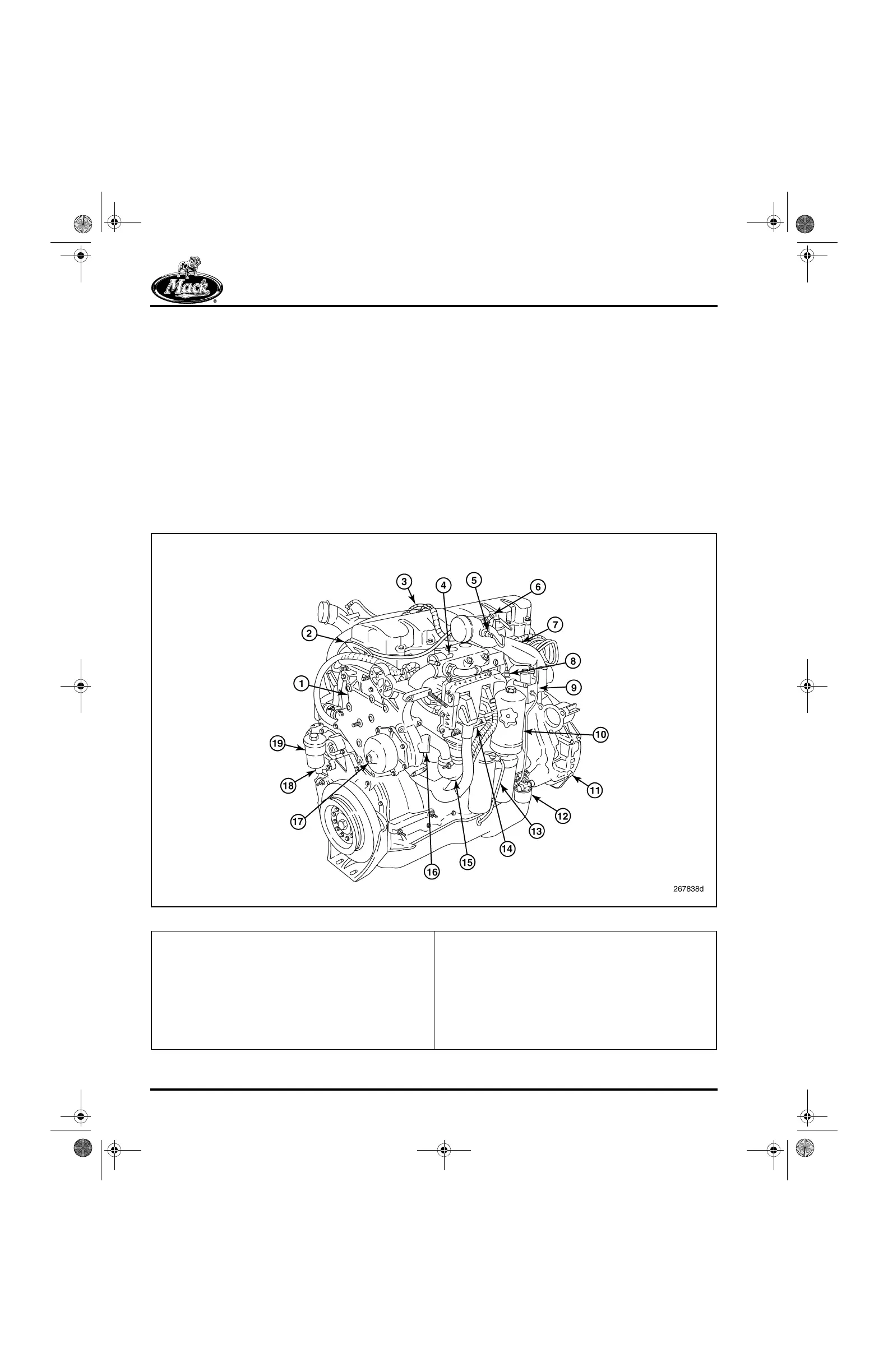

Figure 95 — ASET™ AC Engine, Front and Left Side
1. Water Pump Housing
2. Front Lifting Bracket
3. EGR MASS Flow Sensors
4. Dual-Thermostat Housing
5. Boost Temperature Sensor
6. Boost Pressure Sensor
7. EGR Gas Mixer Tube
8. Inlet Manifold Temperature Sensor
9. VTG Position Control Valve
10. Centri-Max
®
Filter Housing with Integral Oil Fill Port
11. Engine Speed Sensor
12. VTG Control Valve Oil Coalescing Air Filter
13. Oil Dipstick Tube
14. Engine Electronic Control Unit (EECU)
15. Y-Hose with Coolant Screen
16. Coolant Conditioner Mounting Pad
17. Water Pump Impeller Assembly
18. Engine Position Sensor
19. Crankcase Breather
