Page 424
REPAIR INSTRUCTIONS, PART 2
Turbocharger Removal
1. Disconnect the air inlet and outlet ducting
from the turbocharger compressor housing.
2. Support the exhaust pipe so that it does not
drop onto the EGR hot tube bellows and
remove the exhaust clamp at the
turbocharger.
DO NOT let the exhaust pipe drop onto the
bellows of the EGR hot tube as the exhaust pipe
clamp is being removed at the turbocharger. The
bellows could be damaged requiring replacement
of the hot tube.
3. Disconnect the air line and the sensor
electrical lead at the VTG actuator assembly
(Figure 514) and the line at the turbocharger
wheel-speed sensor.
514

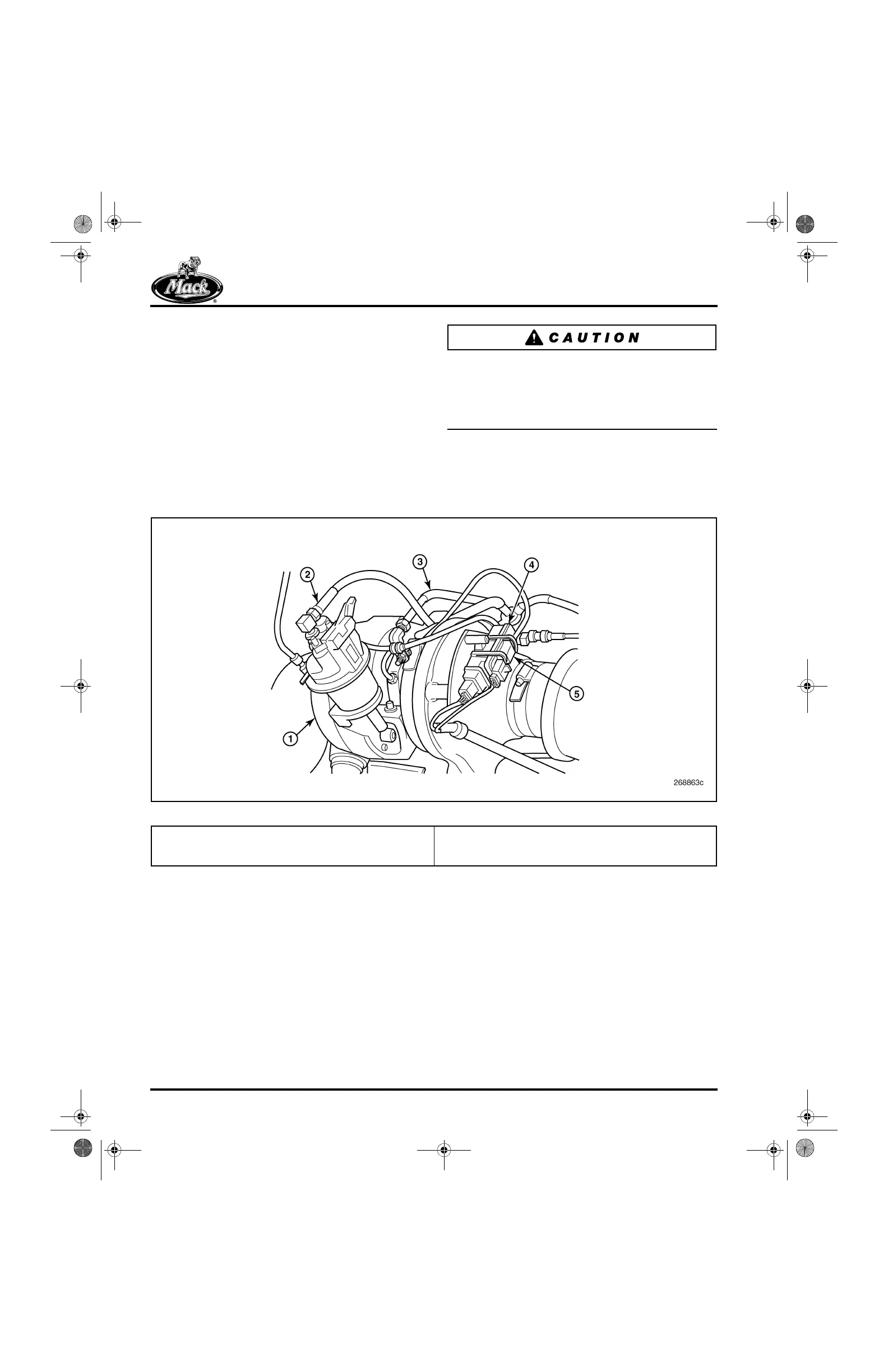

Figure 514 — Line Connections
1. Turbocharger Assembly
2. Actuator Air Line
3. Turbocharger Oil Supply Line
4. VTG Position Sensor Module
5. Wheel-Speed Sensor Connector
