Page 148
REPAIR INSTRUCTIONS, PART 1
Mounting Engine in Stand
The engine weighs approximately 2,300 lbs.
(1043 kg) wet. Stay out from under the engine
when it is being lifted. Failure of the lifting
device could result in serious injury or death.
Make sure to use lifting equipment that is
rated at a capacity greater than the weight of
the engine.
Engine stand, Kent-Moore tool number J 29109,
and adapter plate J 38048, are recommended to
safely support the engine during disassembly and
reassembly procedures.
Avoid using an engine stand that supports the
engine on the oil pan rail while the oil pan is still
installed. Damage to the oil pan, pan gasket or
the isolators may result. If this type of stand must
be used and the oil pan is to remain installed,
support the engine on the pads provided at each
corner of the cylinder block as shown in
Figure 127.
127

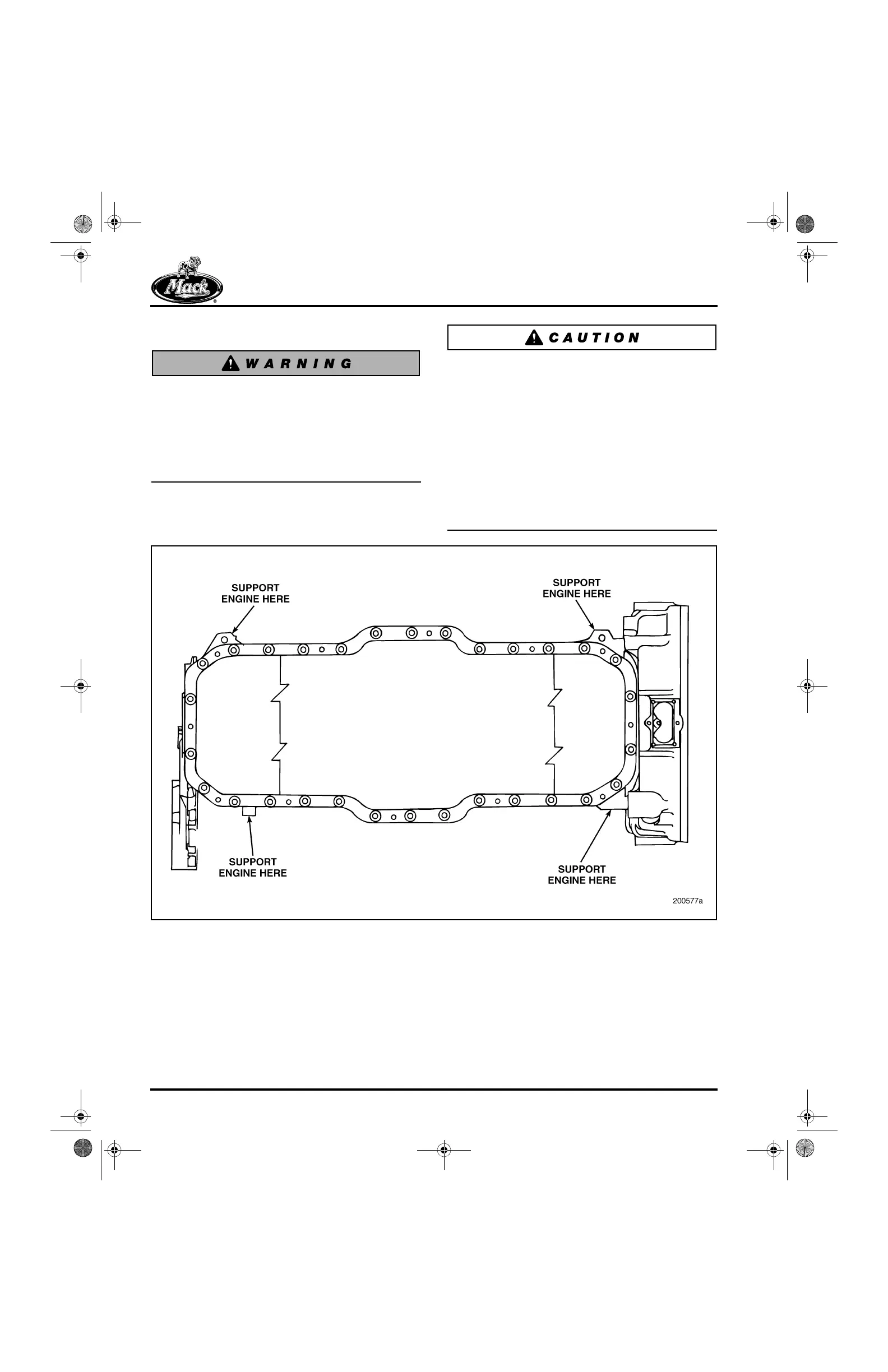

Figure 127 — Engine Support Pads
SPECIAL TOOLS REQUIRED
앫 Engine Stand J 29109
앫 Adapter Plate J 38048
PROCEDURE
Refer to Figure 128.
1. Using three mounting capscrews, secure the
adapter plate J 38048 to the left side of the
engine.
2. Secure the adapter plate to engine stand
J 29109 with six mounting capscrews.
3. Remove the lifting device from the engine.
5-111.bk Page 148 Monday, July 10, 2006 2:26 PM
