Page 204
REPAIR INSTRUCTIONS, PART 1
The front auxiliary shaft bushing must be flush or
recessed within 0.030 inch (0.763 mm) of the
machined front surface of the cylinder block.
Incorrect recess will cause misalignment of the oil
supply hole, resulting in insufficient lubrication of
the journal. Also, any bushing protrusion will
allow the thrust washer to seat on the bushing
and result in the thrust washer mounting screws
coming loose.
208

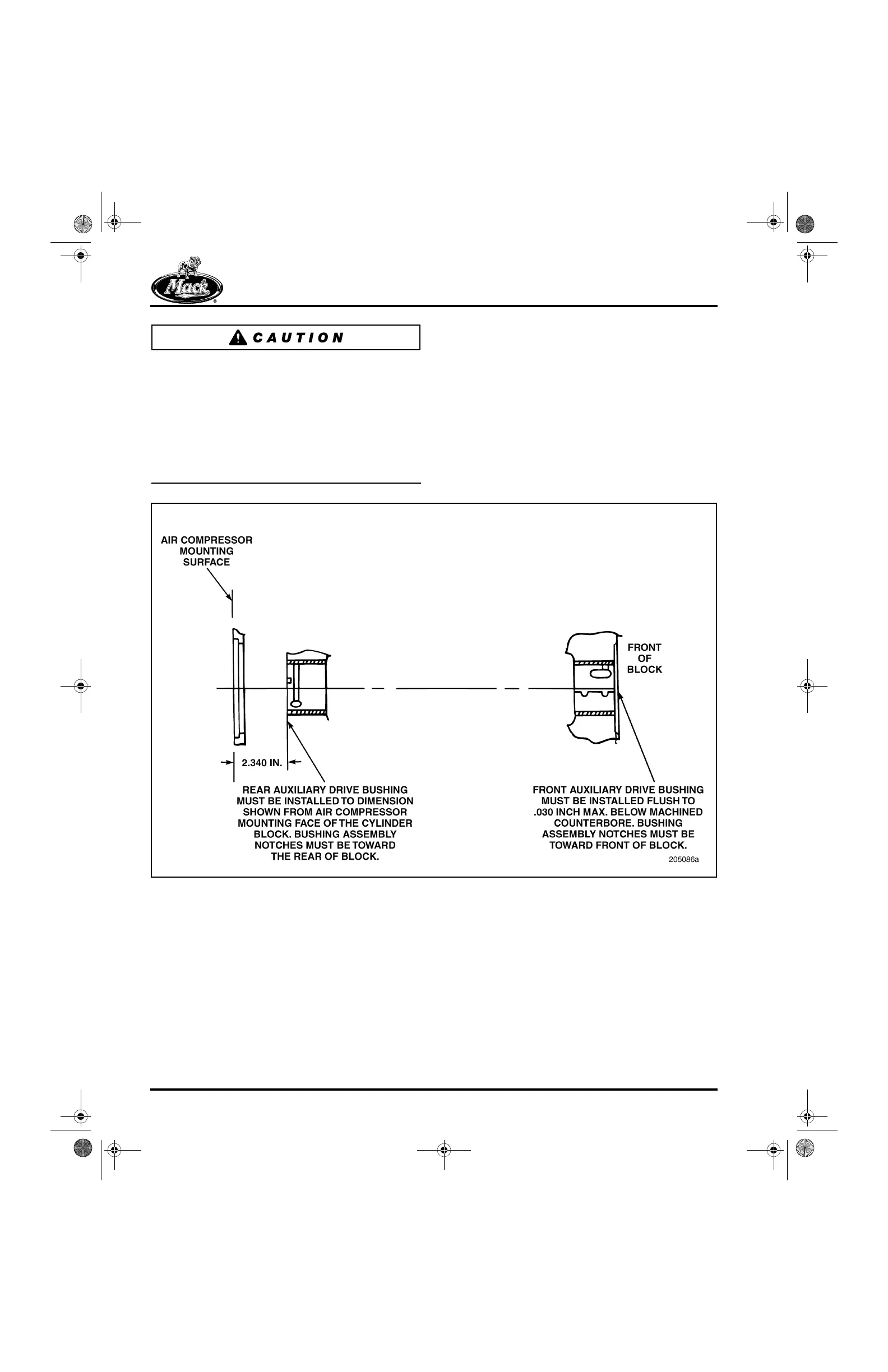

Figure 208 — Auxiliary Bushing Installation Dimensions
9. Install the thrust washer and tighten the
retaining screws to the specified torque,
15 lb-ft (20 N폷m).
