REPAIR INSTRUCTIONS, PART 1
Page 151
4. Remove the eight bolts, two each at the top,
bottom and sides, that secure the EECU to
the cooling plate.
5. Carefully remove the EECU from the cooling
plate (Figure 131).
131

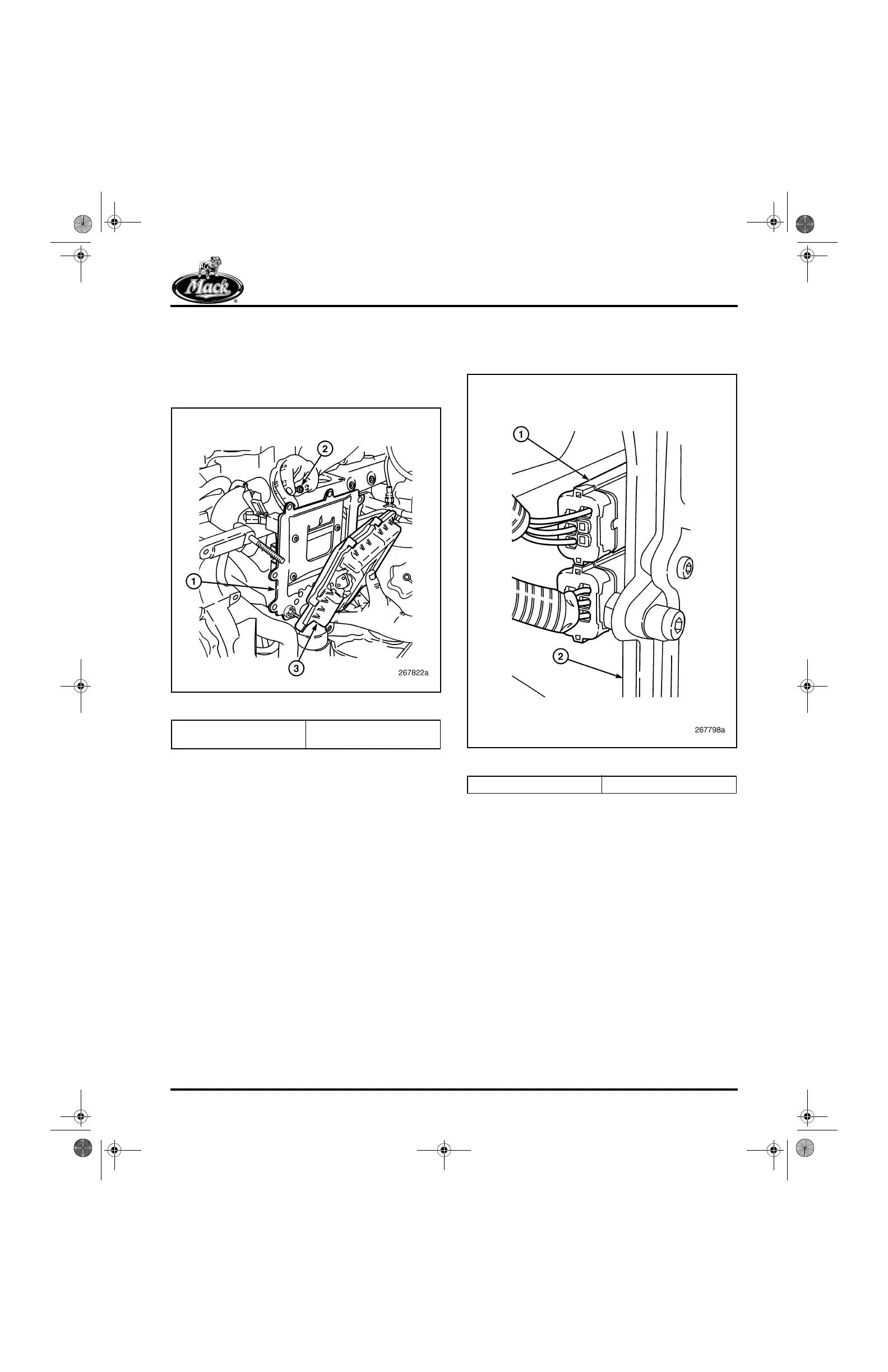

Figure 131 — EECU Removal (ASET™ AC Engine)
6. Disconnect the two harness leads from the
EGR MASS Flow module mounted to the
back side of the cooling plate (Figure 132).
132
Figure 132 — EGR MASS Flow Module Connections
1. Cooling Plate
2. Retaining Bolt
3. EECU
1. Module Connections 2. Cooling Plate
5-111.bk Page 151 Monday, July 10, 2006 2:26 PM
