REPAIR INSTRUCTIONS, PART 1
Page 153
2. Loosen and remove the clamps securing the
cool tube to the brackets at the EGR valve
and the front section of the exhaust manifold
(Figure 135).
135

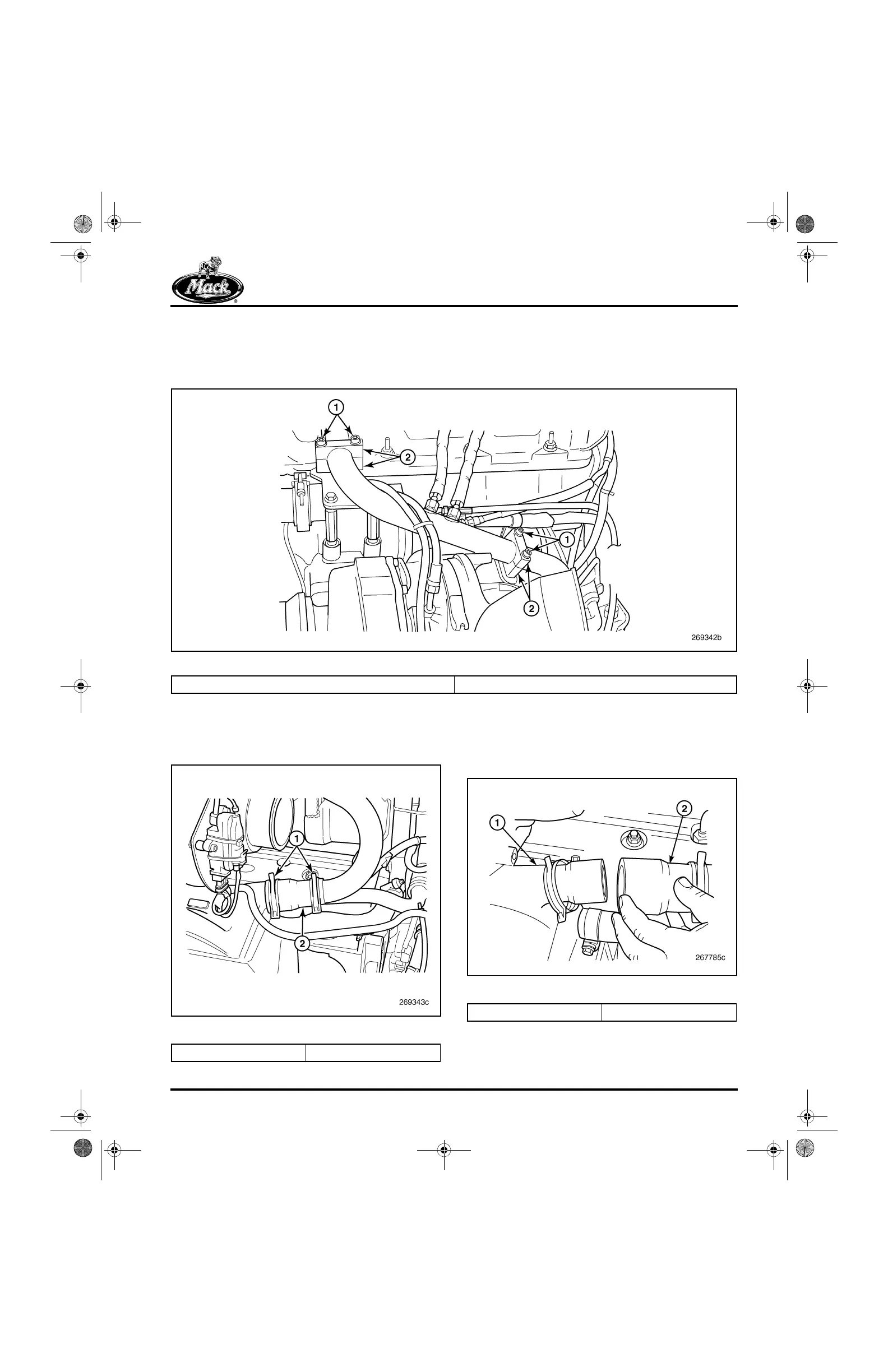

Figure 135 — Cool Tube Clamps
3. Loosen and remove the clamps from the
coupling hose at each end of the cool tube
(Figure 136).
136
Figure 136 — Coupling Hose Clamps
4. Remove the cool tube and coupling hoses
from the engine (Figure 137). Inspect the
tube for corrosion or damage and the hoses
for deterioration. Replace as required.
137
Figure 137 — Cool Tube Coupling Hose Removal
1. Clamp Bolts 2. Clamp, Upper and Lower Sections
1. Hose Clamps 2. Coupling Hose
1. EGR Cooler 2. Coupling Hose
5-111.bk Page 153 Monday, July 10, 2006 2:26 PM
