REPAIR INSTRUCTIONS, PART 1
Page 267
296

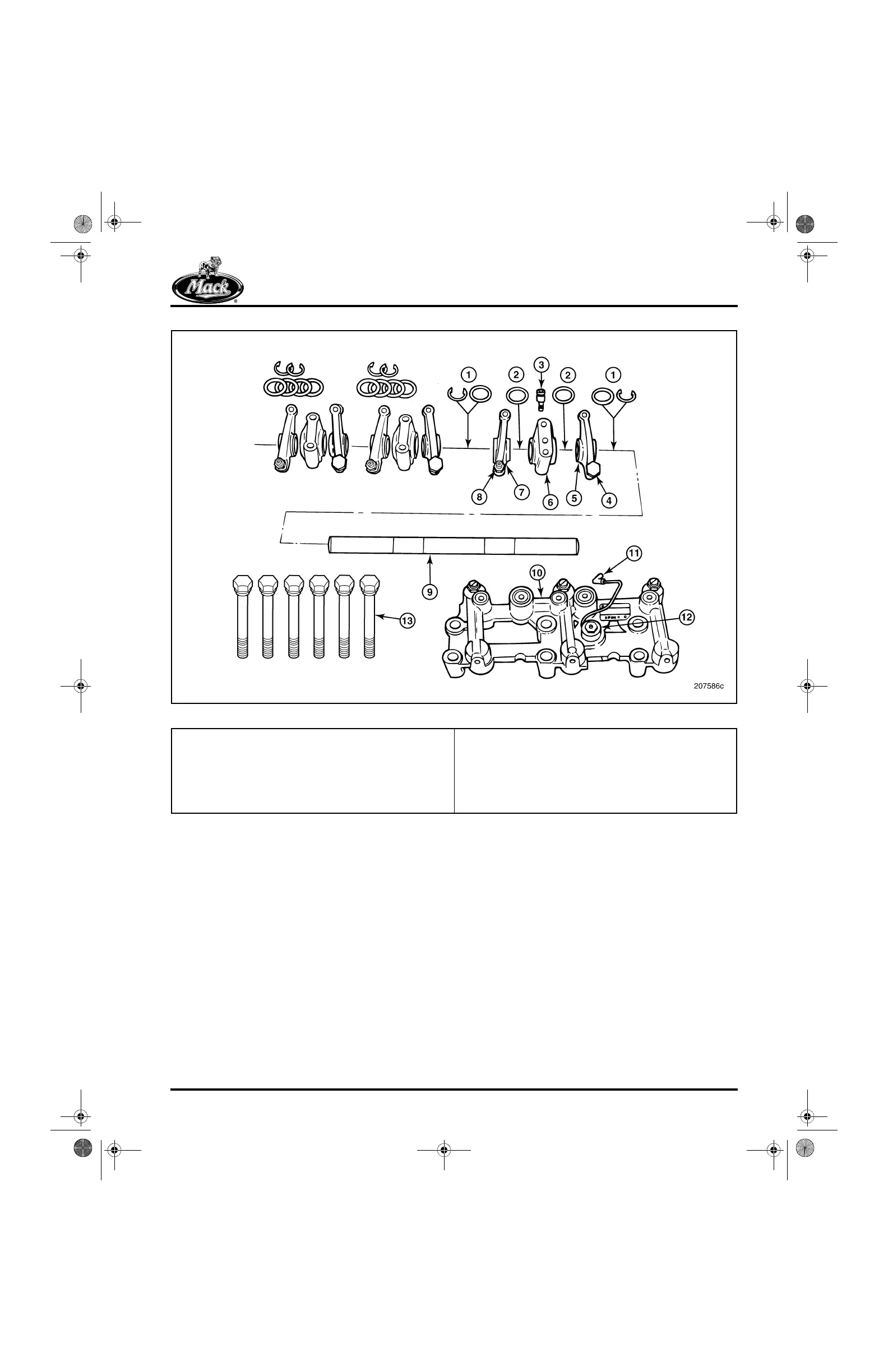

Figure 296 — Valve Rocker Arm Shaft Assembly (with J-Tech™ Engine Brake)
* This screw incorporates an oil supply check valve, eliminating the need for the oil supply check valve components in the
engine brake housing.
1. Flat Washer and C-Clip
2. Spring Washer
3. Oil Supply Screw (with Integral Check Valve)*
4. Adjusting Screw and Spherical Jam Nut
5. Exhaust Rocker Arm
6. Mounting Bracket
7. Inlet Rocker Arm
8. Standard Adjusting Screw and Jam Nut
9. Shaft
10. Engine Brake Actuator Assembly
11. Electrical Connector
12. Solenoid
13. Large Hex-Head Capscrews
