REPAIR INSTRUCTIONS, PART 1
445

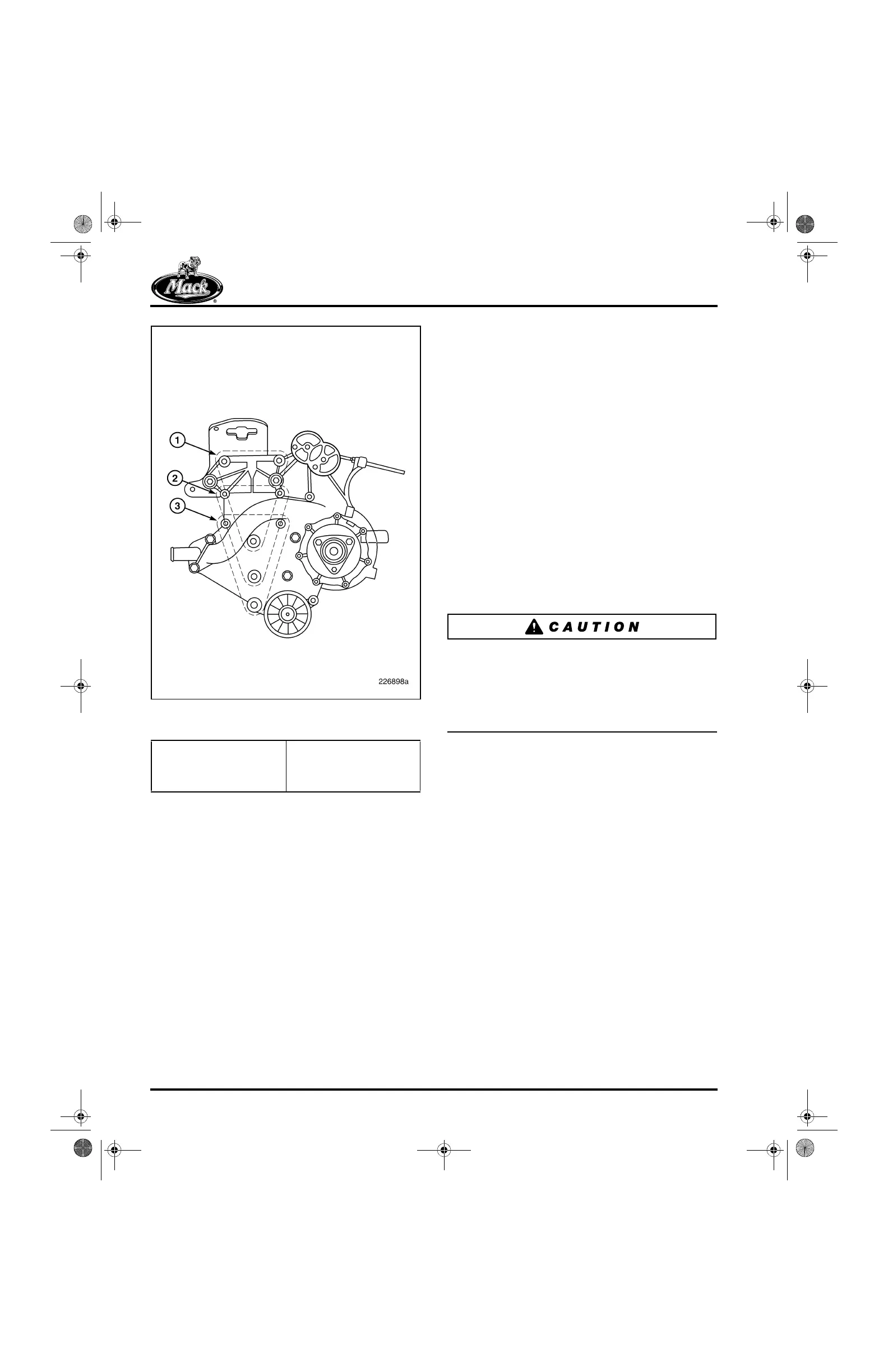

Figure 445 — Fan Clutch Assembly Bracket Mounting
Locations
16. Install the accessory drive belts and adjust
the belts to specification.
17. Using a lifting device, place the radiator in
position at the front of the engine.
18. Install the retaining capscrews to the lower
radiator support mounts.
19. Install the retaining capscrews to the
radiator support rods.
20. Position the fan clutch air solenoid valve, if
so equipped, on the radiator support and
install the retaining fastener.
21. Locate the engine coolant temperature
sensor, if applicable, and connect it to the
wiring harness. Fasten the sensor harness
to the radiator support.
22. Install the chassis-mounted charge air
cooler (CMCAC) outlet tube and hoses
between the cooler and EGR mixer tube.
Be sure to position the CMCAC hose clamps with
the bolts on the underside of the hose connection
at the EGR mixer tube. If the clamp bolts are
installed at the top position, the bolts could rub
against the air cleaner duct causing damage to
the duct.
1. Bracket Upper Mounting
Location
2. Bracket Middle Mounting
Location
3. Bracket Lower Mounting
Location
