REPAIR INSTRUCTIONS, PART 2
Page 403
484

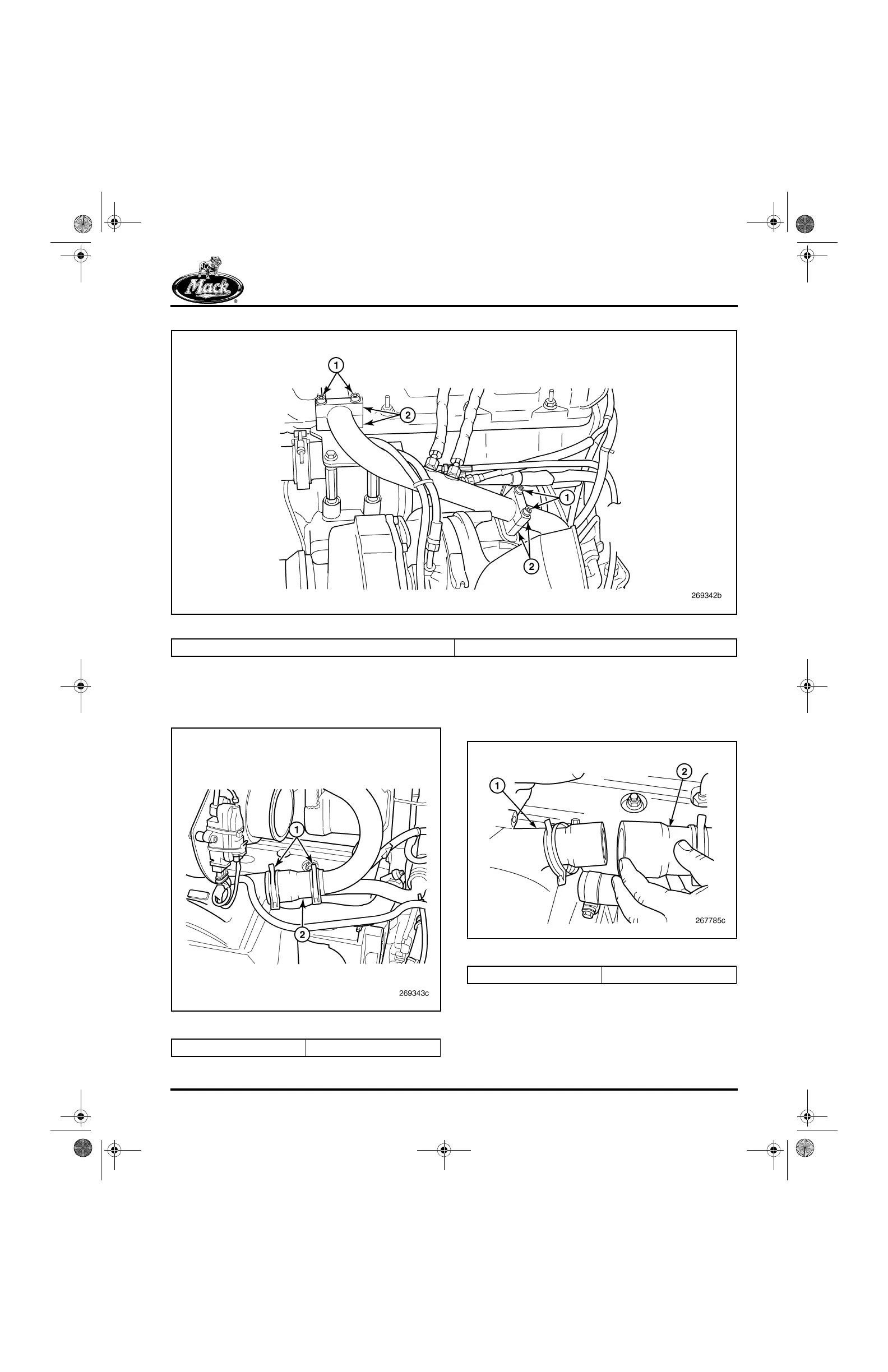

Figure 484 — Cool Tube Clamps
3. Loosen and remove the clamps from the
coupling hose at each end of the cool tube
(Figure 485).
485
Figure 485 — Coupling Hose Clamps
4. Remove the cool tube and coupling hoses
from the engine (Figure 486). Inspect the
tube for corrosion or damage and the hoses
for deterioration. Replace as required.
486
Figure 486 — Cool Tube Coupling Hose Removal
1. Clamp Bolts 2. Clamp, Upper and Lower Sections
1. Hose Clamps 2. Coupling Hose
1. EGR Cooler 2. Coupling Hose
5-111.bk Page 403 Monday, July 10, 2006 2:26 PM
