6C-3390-13645--2 495 POWER-TRIM

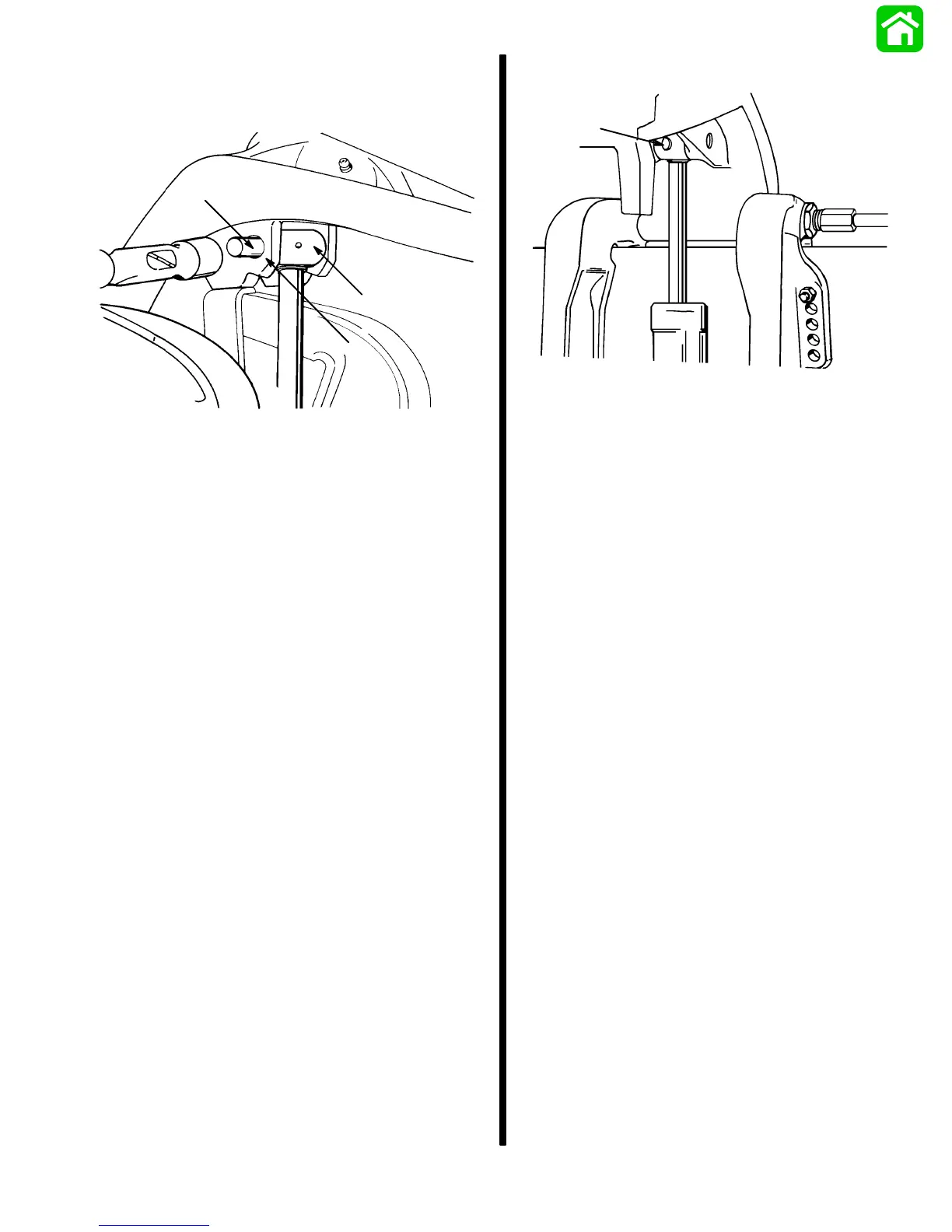

7. Using a suitable mallet, drive upper pivot pin into
swivel bracket and through trim ram until pivot pin
is flush with swivel bracket.
51515
a
b
c
a - Pivot Pin
b - Swivel Bracket
c - Trim Ram
8. Drive upper retaining pin in until seated.
51505
a
a - Retaining Pin
9. Recheck fluid level.
10. Power trim may now be operated to lower out-
board to desired position. Trim system is self
purging.
11. Reconnect power trim leads to relays under igni-
tion cover.
12. Reinstall spark plug leads to spark plugs.
13. Reinstall cowls.
14. Connect battery leads to battery terminals.
