90-13645--2 4957B-12 OUTBOARD MOTOR INSTALLATION/ATTACHMENTS

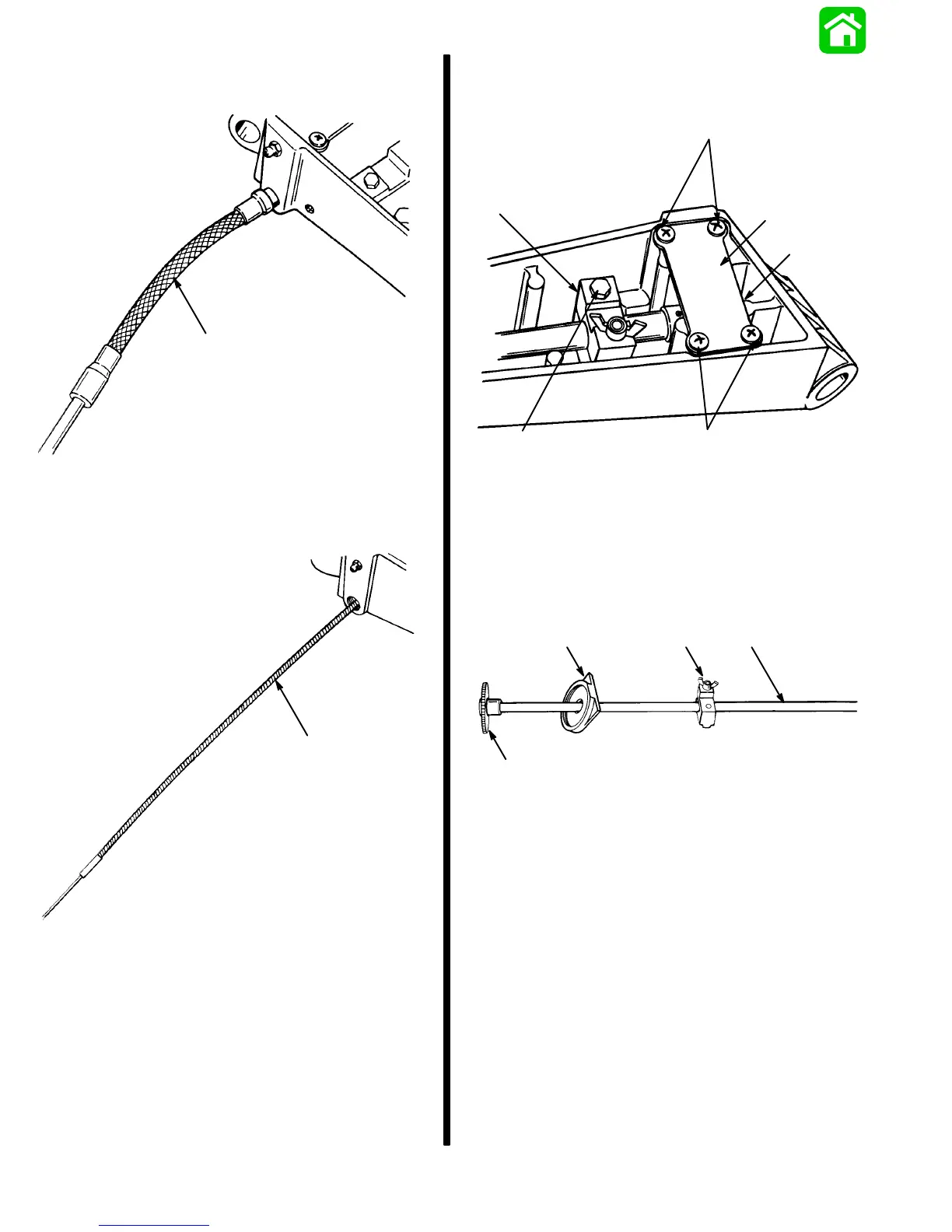

7. Unscrew (counterclockwise) stainless conduit
from tiller handle.
51603
a
a - Conduit
8. Pull throttle cable from tiller handle.
51604
a
a - Throttle Cable
9. Remove cover plate and gasket from tiller handle.
10. Remove bolt from throttle friction assembly.
51604
a
b
c
d
e
c
a - Cover Plate
b - Gasket (below plate)
c - Screws
d - Throttle Friction Assembly
e - Bolt
11. Remove throttle arm, gear assembly and friction
device from tiller handle. Slide gear cover and fric-
tion device off of throttle arm.
51604
a
b
cd
a - Throttle Arm
b - Gear Assembly
c - Friction Device
d - Gear Cover
