232 Chapter 29: Panel Connections
PRO2 Live Audio System
Owner’s Manual
Word clock

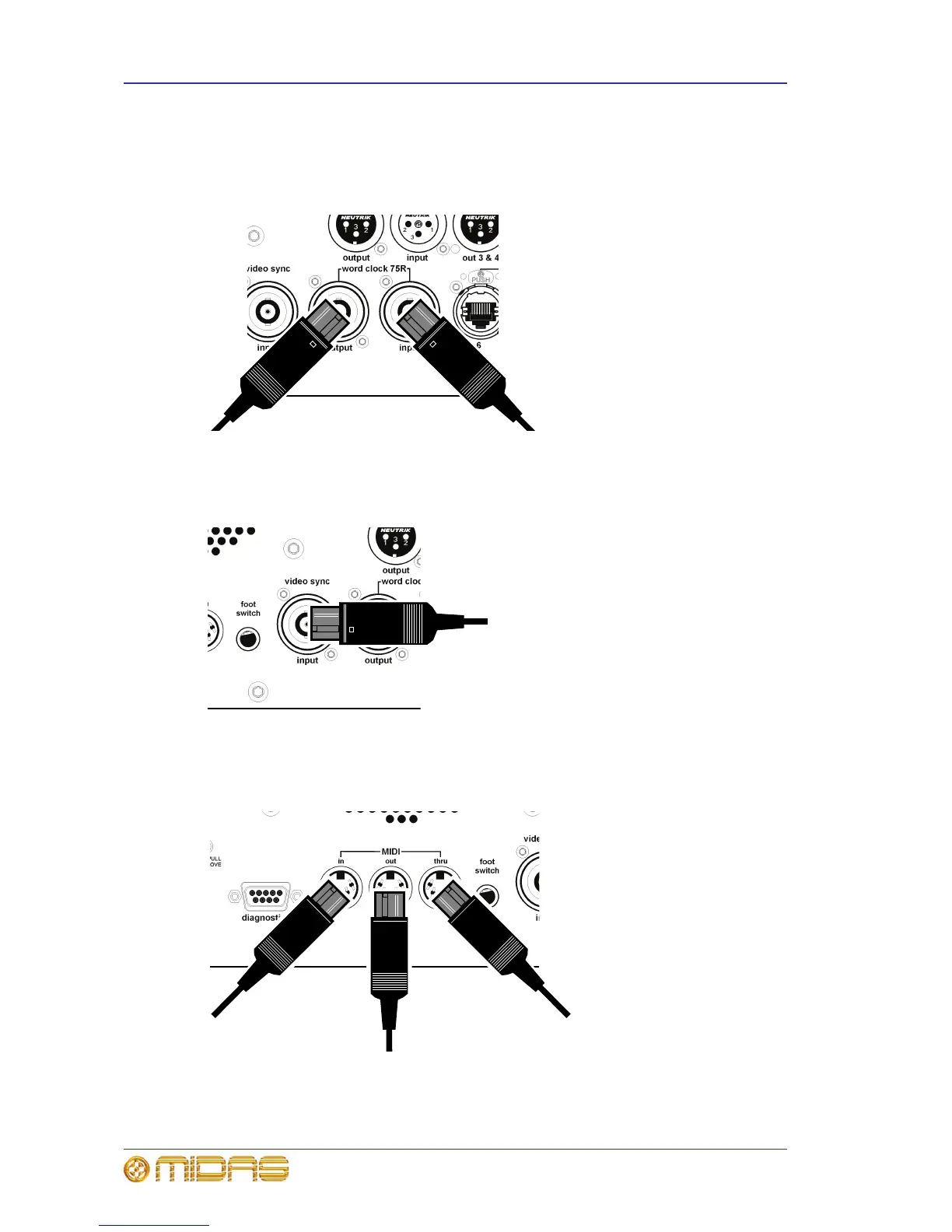

The word clock 75R section comprises input and output BNC cable sockets for
synchronisation with external devices that can transmit/receive a 96kHz word clock
signal.
Video sync
The video sync port has an input BNC cable socket for synchronisation with a video
device.
MIDI
The MIDI section has in, out and thru sockets that each accepts a 5-pin DIN
connector.
