Rear panel connections 233
PRO2 Live Audio System
Owner’s Manual
Connectors in area B
Area B houses the connectors for mains power, USB devices, external monitor, etc.

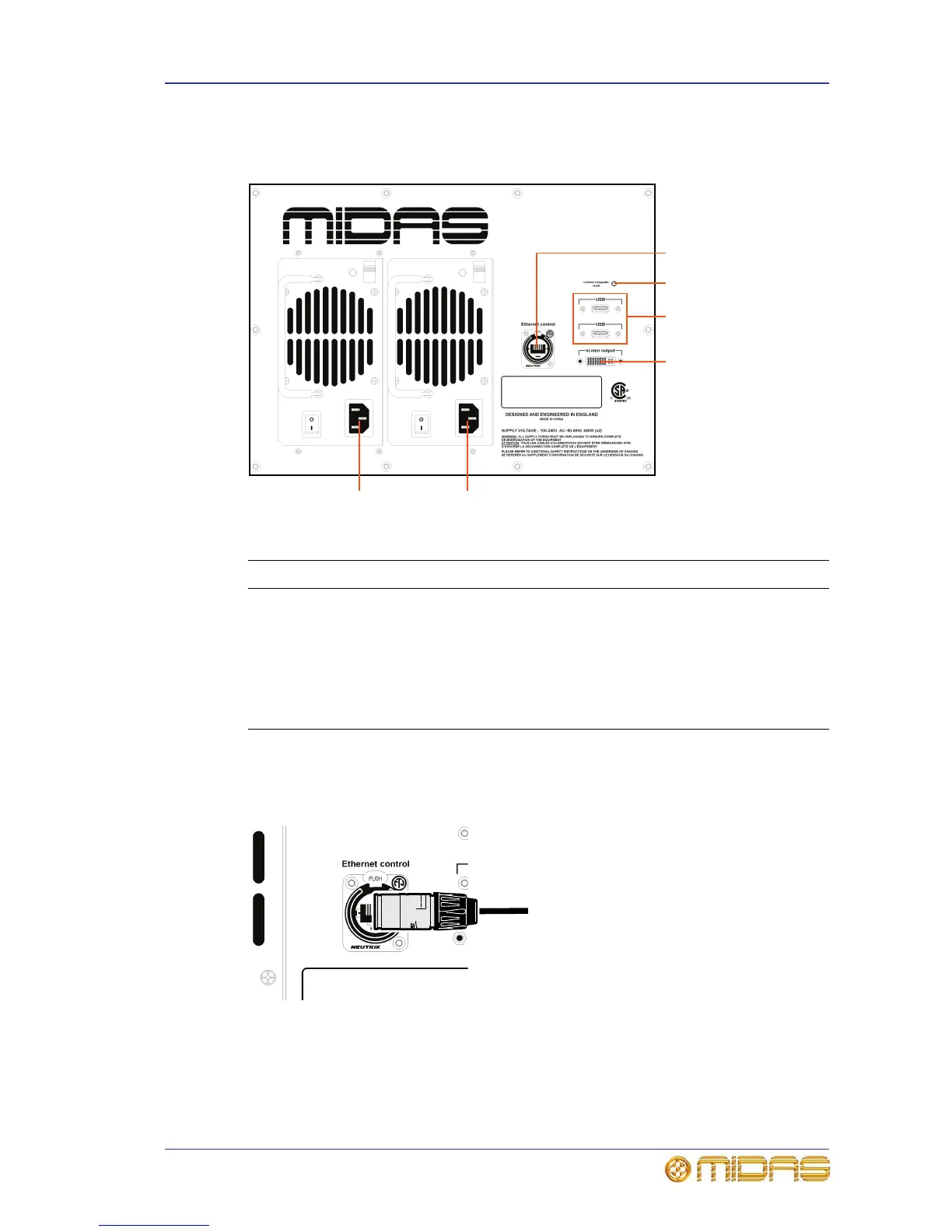

External connections on the right rear panel of the control centre
Ethernet control
A 100Mb/s Ethernet control port (on EtherCon®) lets you connect equipment, such as
the Klark Teknik DN9331 Rapide Graphic Controller.
Item Description
1 Ethernet control connector (see “Ethernet control” below).
2 control computer reset button. This recessed button is for service
personnel use only.
3 USB connectors (see “USBs” below).
4 Screen output connector (see “Screen output” on page 234).
5 Mains input connectors (see “Mains power connectors” on page 234).
